BETA – IsatDock Overview
Filename: IsatDock Docking Station _Beta _Marine_v1.docx
Authorised by:
Comment Closure Date:
Version
Date
01
30-AUG-2010
Page 1 of 29
IsatDock Docking Station
BETA USER GUIDE
PRO & MARINE
DOCUMENT STATUS
Client: Inmarsat
Status:
Commercial In-Confidence (release status: see Revision History)
William Christie
Author:
REVISION HISTORY
Changes
Initial Draft Release
Filename:IsatDock Docking Station _Beta _Marine_v3.docx
Beam Communications
STRICTLY CONFIDENTIAL
Advertisement
Table of Contents
Related Manuals for Beam IsatDock Marine
Summary of Contents for Beam IsatDock Marine
- Page 1 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL IsatDock Docking Station BETA USER GUIDE PRO & MARINE DOCUMENT STATUS Filename: IsatDock Docking Station _Beta _Marine_v1.docx Client: Inmarsat Status: Commercial In-Confidence (release status: see Revision History) William Christie Author: Authorised by:...
-
Page 2: Table Of Contents
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL TABLE OF CONTENTS 1. Overview............4 4.5. PRO/MARINE – Mounting Bracket ..18 1.1. PRO/MARINE – Key Features ....5 5. Electrical Interfaces ........19 2. Antenna connection ........6 5.1. PRO/MARINE - Antenna Connectors .. 19 ... - Page 3 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL TABLE OF CONTENTS Figure 1 ‐ IsatDock PRO/MARINE _ ____________________________________________________________________ 5 Figure 2 – Door Openings _ __________________________________________________________________________ 7 Figure 3 – Phone alignment _________________________________________________________________________ 7 Figure 4 – Privacy Handset – ‘Off Hook’________________________________________________________________ 8 Figure 5 – Privacy Handset – mounting points __________________________________________________________ 8 Figure 13 – PRO/MARINE rear cover panel _____________________________________________________________ 9 Figure 8 – Security Bolts ___________________________________________________________________________ 10 Figure 9 – Mounting Bracket security ________________________________________________________________ 10 ...
-
Page 4: Overview

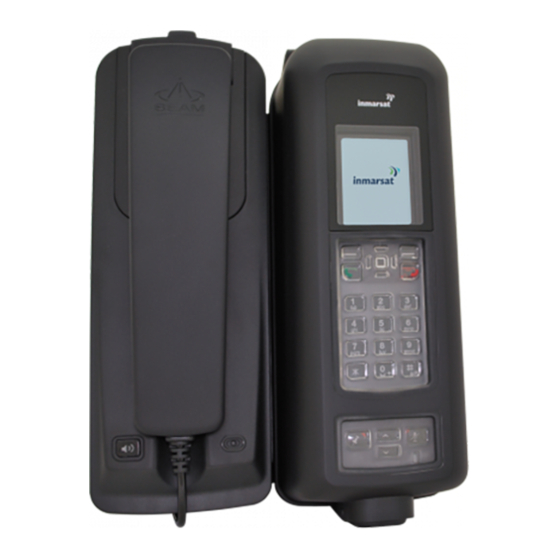

4. IsatDock MARINE The IsatDock MARINE docking station allows the flexibility of using a privacy mode handset mounted to the unit or an RJ11/POTS handset connected directly to the unit. The terminal itself is designed with IP rating for use in harsh environments. The IsatDock MARINE incorporates inbuilt GPS tracking and an alert loop function. -
Page 5: Pro/Marine - Key Features
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 1.1. PRO/MARINE – Key Features Figure 1 - IsatDock PRO/MARINE Page 5 of 29... -
Page 6: Antenna Connection
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 2. Antenna connection GPS Antenna Cable Satellite Antenna Cable Page 6 of 29... -
Page 7: Functionality
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 3. Functionality 3.1. Docking Procedure The following docking procedure is common across each of the docking station types PREPARATION: To place the IsatPro Phone into the docking unit, both the ‘doors’ on the external antenna connectors and the USB/Audio connectors need to opened. -
Page 8: Pro/Marine Privacy Handset
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL REMOVAL: To remove the handset from the cradle, press the eject button at the top of the docking station. The dock will swing out and the handset can be removed. 3.2. PRO/MARINE Privacy Handset The Privacy Handset resides to the left of the IsatPhone Pro when not it use. -
Page 9: Pro/Marine Security Bolts
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL For the PRO/MARINE IsatDocks, the external cable interfaces are at the rear of the docking station. The cover panel creates the IP rating for the electrical interface and retains the cables in their respective channels. - Page 10 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL placed under the privacy handset in the recess for the handset antenna cover. Both bolts are then covered with plugs. As the second bolt is under the privacy handset, access to the bolt is denied when the handset is locked into the cradle.
-
Page 11: Additional Buttons And Led's
Decrease volume BUTTON “A” IsatDock Pro – Redial Will redial the last number IsatDock Marine – Track Will send a tracking SMS upon being pressed SPEAKER This button will activate the speakerphone when in a call. Green indicates a call in speakerphone mode. -
Page 12: Adjusting Led Brightness
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 3.6. Adjusting LED Brightness Pressing the UP and DOWN buttons together will put the docking station into LED brightness adjustment mode. Once in this mode the LED’s will flash. Press UP or DOWN to increase or decrease the LED brightness to a comfortable level, depending on your environment. -
Page 13: Marine - Cover
\ The cover is released by the latch at the base of the cover. Figure 10 – IsatDock MARINE cover Figure 11 – Cover Seal Page 13 of 29... -
Page 14: Installation
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 4. Installation 4.1. PRO/MARINE – Cable routing The IsatDock provides three different cable routing options when installing the docking station. Cables may exit via path ‘A’ that travels around to the top of the dock allowing for the interface cables to be run with the external antenna connections. -
Page 15: Pro/Marine - Privacy Handset
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 4.3. PRO/MARINE – Privacy Handset There are two options for the privacy handset mounting cup depending upon the type of docking station and the mounting orientation of the docking station. One mounting cup has a sprung upper section while the second is a single molded piece with a reversible retention clip. - Page 16 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL Figure 15 – Mounting Cup (Marine Version) Figure 16 – Privacy Handset mounting cup Switch privacy cups, depending on the intended installation environment. Page 16 of 29...
-
Page 17: Pro/Marine Mounting Orientations
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL The Privacy Handset connects to the docking station via a RJ9 connector. For the PRO / MARINE versions, the privacy handset is connected beneath the rear panel. Once connected, the cable is run back through the foam and placed in the ‘S’... -
Page 18: Pro/Marine - Mounting Bracket
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL There are four keyhole shaped slots in the mounting bracket that mate with feet on the rear of the plastics. To attach the bracket, the larger end of the keyhole will pass over the feet (see ‘B’ below). -
Page 19: Electrical Interfaces
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 5. Electrical Interfaces 5.1. PRO/MARINE - Antenna Connectors The two external antenna connectors can be found in the cavity at the top of the IsatDock. Figure 20 – External Antenna Electrical Interfaces... -
Page 20: Powering From The "Dc Power Cable / Lead
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 5.3. Powering from the “DC power cable / lead” The DC power cable / lead can be used where AC power is unavailable. This can be connected to a 9 to 32V DC power source (such as a vehicle battery). -
Page 21: Physical Dimensions
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 6. Physical Dimensions 6.1. PRO/MARINE Page 21 of 29... -
Page 22: Privacy Handset
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 6.2. Privacy Handset Page 22 of 29... -
Page 23: Wall Bracket
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 6.3. Wall Bracket Page 23 of 29... -
Page 24: Placing A Call - Inbuilt Speakerphone And Privacy Handset
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 7. Placing a call – Inbuilt speakerphone and Privacy handset 1. Dock the IsatPhone into the docking station 2. Wait for the docking station to synchronize with the IsatPhone. If the IsatPhone Pro was inserted in the OFF state it can take approximately 1minute for the handset to turn ON and synchronize with the docking station. - Page 25 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL NOTE: The IsatPhone Pro handset has its own volume controls for both incoming call ringing and in-call audio levels. It is recommended that you set the IsatPhone Pro to maximum volume and use the docking station to reduce the volume if required.
-
Page 26: Configuring The Unit
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL Configuring the Unit The IsatDock can be configured by the IsatDock Management System. This is a Microsoft Windows application that connects to the docking station via a USB cable. This application allows users to configure settings such as: ... -
Page 27: Antenna Specifications
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL Antenna Specifications AMPLIFIER + INTEGRAL ANTENNA Equipment Type: Maritime or Mobile Intended Operating Environment: [ x ] Commercial [ x ] Light Industry & Heavy Industry Power Supply Requirement: DC 10 - 32 Volts maximum ... - Page 28 BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL Inamarsat Transmit: 1626.5-1660.5 MHz GPS Gain: 26 dBi INMARSAT RECEIVE Amplifier: 26 dB INMARSAT TRANSMIT Amplifier: 11 dB Antenna: 6.0 dBi (for model AT1595-83) Antenna: 3.5 dBi (for model AT1595-82) Ambient Temperature Rating: -40 to +70 degree C This device complies with Part 15 of the FCC Rules.
-
Page 29: Fcc Information
BETA – IsatDock Overview Beam Communications STRICTLY CONFIDENTIAL 11.1. FCC Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provided reasonable protection against harmful interference when the equipment is operated in a commercial environment.
