- Page 1 IsatDock LITE User Manual...
-
Page 2: Inmarsat Isatdock Drive Part Number
8 Anzed Court, Mulgrave, Victoria, 3170, AUSTRALIA Information furnished by BEAM Communications Pty Ltd (BEAM) is believed to be accurate and reliable. However, no responsibility is assumed by BEAM for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of BEAM. -
Page 3: About Beam Communications
Forestry, Emergency Services, Relief Aid, Telemetry and Rural Telephony. Fax: +61 3 9560 9055 Supported by a dedicated team of professionals, Beam has developed solid relationships with its peers and network of distributors worldwide. ISatDock LITE - Installation & User Manual... -
Page 4: Conventions In This Manual
Conventions in this Manual These notes will appear throughout this manual Terminology and should be taken into consideration. TERM DESCRIPTION IDMS IsatDock Management System - MS Windows Install Warning or Caution Short Message Service This symbol and associated text indicate a Mobile Originating Describes a call initiated by the IsatDock warning note providing information to prevent... -
Page 5: Package Contents
ISD937 20m cable kit (Passive) is available for download from: http://www.beamcommunications.com/ Additional Accessories support/isatdock/IDMS • ISD955 Privacy Handset • ISD950 110-240v AC plug pack See your service provider for pricing and availability of these quality BEAM accessories. ISatDock LITE - Installation & User Manual... -
Page 6: Table Of Contents
CONTENTS Installation Procedure Inmarsat IsatDock Drive Part Number Installing the IsatDock LITE Cradle About Beam Communications Connecting Power to the Dock Conventions in this Manual IsatDock LITE Usage Terminology Docking & undocking the IsatPhone Package Contents Pro handset Optional Accessories... -
Page 7: Safety Information
» fuel or chemical transfer or storage facilities; ports which comply with the Safety Extra Low » areas where fuel odors are present (for The IsatDock LITE is a low power docking station Voltage (SELV) requirements of IEC60950. example, if a gas/propane leak occurs in for the IsatPhone Pro handset. -
Page 8: Safety Inmarsat Transceiver Isatphone Pro
Safety Inmarsat Transceiver IsatPhone Pro Your handset is a low power radio transmitter » International Commission on Non-Ionizing and receiver. When it is ON, it receives and Radiation Protection (ICNIRP) 1996 also sends out radio frequency (RF) signals. » Verband Deutscher Elektrotechniker WARNING (NOTE: Refer to Inmarsat IsatPhone pro (VDE) DIN-0848... -
Page 9: Isatdock Fcc Information
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ISatDock LITE - Installation & User Manual... -
Page 10: Electronic Devices
Electronic Devices Other Medical Devices Posted Facilities Most modern electronic equipment is shielded If you use any other personal medical device, Turn your phone OFF in any facility where from RF signals. However, certain equipment consult the manufacturer of your device to posted notices require such as hospitals and may not be shielded against the RF signals from determine if it is adequately shielded from... -
Page 11: Isatdock Lite Key Features
IsatDock LITE Key Features Power The IsatDock LITE enables the IsatPhone Pro to • 10-32V DC Input be always on and ready to receive incoming calls, • 110-240V AC plug pack, optional that can be answered via a Bluetooth accessory Buttons on Dock or the optional privacy handset. -
Page 12: Equipment Overview

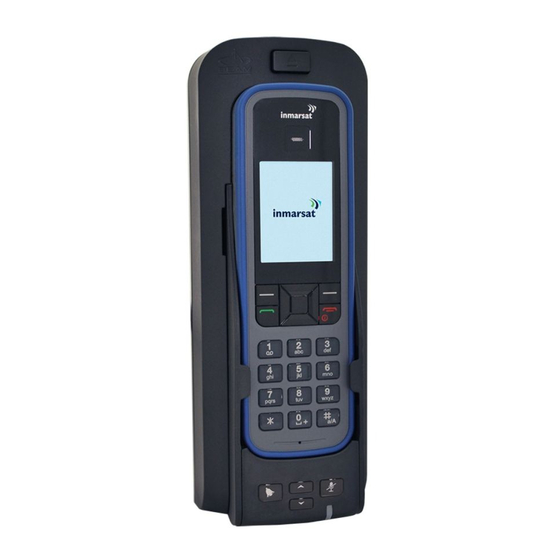

Equipment Overview IsatDock LITE IsatDock LITE Unit Key lock IsatPhone Eject Button IsatPhone Pro (not included) IsatPhone Pro Docking Tray Function Buttons Status Indication Light Power Cable Loom a. Power Supply b. Satellite TNC-Female Connector c. GPS SMA-Female Connector RAM Mounting... -
Page 13: Installation Guidelines
(for vehicle installations) This guide outlines the process for installing the The system is designed to operate in negative IsatDock LITE in conjunction with an Inmarsat • Route cables so they are protected from ground 10 to 32 Volt DC electrical systems only. -
Page 14: Installation Procedure
Installation Procedure Installing the IsatDock LITE Cradle • Verify that low resistance connections are When selecting a location for the IsatDock present between the battery negative Install the components in the following order. cradle, consider these guidelines: terminal, the vehicle chassis, and the More detailed instructions can be found in the •... - Page 15 Mounting Cradle The IsatDock LITE is supplied with a universal RAM® Refer to the antennas installation guide mount bracket that enables mounting to any flat for antenna mounting and location surface (vertical or horizontal) within a vehicle, requirements WARNING attached on a wall or on a table as required.
- Page 16 NOTE The antenna should only be connected and disconnected when the IsatDock LITE is not powered. Connecting the antenna after power-up can result in prolonged acquisition time. Marine Active Passive Antenna Antenna with Pole with Bracket Bracket Magnetic Mount Bolt Mount...
- Page 17 Mount the spacer plate and the mounting Plug the Privacy Handset RJ9 connector The IsatDock LITE provides a RJ9 audio bracket to the rear of the IsatDock LITE, by into the bottom of the docking unit, as socket on the bottom of the docking unit, for using the longer screws provided with the per image below.
-
Page 18: Connecting Power To The Dock
Connecting Power to the Dock By default, the IsatDock LITE will stay on for 20 Prepare the Inmarsat IsatPhone Pro minutes after this input is switched off. If a call Connect the RED wire to the positive 1. Ensure that the IsatPhone Pro Handset is is in progress while this occurs, the IsatDock terminal of the battery. -
Page 19: Isatdock Lite Usage
For more To dock the handset, align the IsatPhone with information visit: www.beamcommunications.com/support/ the phone tray and slide the handset down until it seats flush to the bottom of the tray. isatdock ISatDock LITE - Installation & User Manual... -
Page 20: Placing Voice Calls
During a call, Press the Mute button on the This range is from 0 to 45 degrees Celsius (32 to Dial the phone number (using the full face of the IsatDock LITE, a RED LED will 113 degrees Fahrenheit). country code) on the IsatPhone Pro keypad... -
Page 21: Optional Accessory
STATUS GREEN Handset registered and able to make a call Handset not registered / no signal and cannot make a call FLASHING Call in Progress ALTERNATING Error detected in communicating with IsatPhone handset ISatDock LITE - Installation & User Manual... -
Page 22: Assuring Quality Of Inmarsat Service
Assuring Quality of Inmarsat Service Inmarsat is committed to providing subscribers Cabling Mitigation of RF Interference around the world with consistent, reliable, quality Using an externally mounted antenna provides Inmarsat Service degradation due to RF voice and data access all day, every day. The an ideal solution for many applications. -
Page 23: Specification Summary
C to +45 F to 113 Humidity <= 75% RH 10-32V DC power cable Connectors / Interfaces Universal mounting bracket (RAM) Inmarsat TNC-Female Handset lockiing key Antenna User manual GPS Antenna SMA-Female Quick start guide ISatDock LITE - Installation & User Manual... -
Page 24: 1) Physical Dimensions - Lite Dock
(1) Physical Dimensions - Lite Dock (2) Physical Dimensions - Privacy Handset 169.71 42.63 81.74... -
Page 25: Trouble Shooting
Check the antenna connection. from the IsatDock. Ensure the antenna cable has not been damaged. Ensure that only approved antenna cable has been used. Refer to Antenna Install Guide on Beam website support. ISatDock LITE - Installation & User Manual... -
Page 26: Beam Warranty Conditions
Beam Warranty Conditions BEAM Communications gives this express warranty (along BEAM Communications does not warrant any BEAM Communications will not accept with extended warranty endorsements, where applicable) installation, maintenance or service of the Products responsibility for any invoiced goods or services in lieu of all other warranties, express or implied, including not performed by BEAM, nor does it warrant the use that are not covered by a BEAM Communications... - Page 28 BEAM Communications Pty Ltd 8 Anzed Court, Mulgrave Victoria, 3170, AUSTRALIA Tel: +61 3 8588 4500 Fax: +61 3 9560 9055 Web: www.beamcommunications.com Info: info@beamcommunications.com Support: support@beamcommunications.com www.beamcommunications.com...
