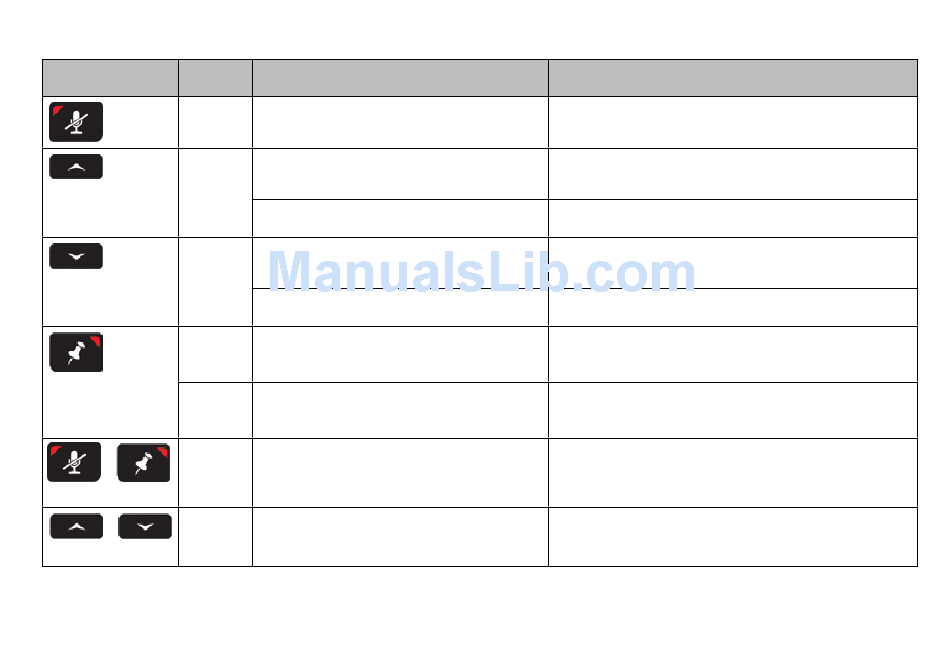

IsatDock DRIVE Front Panel

Location Button
Mode
Mute Press
on/off
Up
Down
Single Press
(1 second)
Single Press
(7 seconds)
Two button
press
+ (2 seconds)
Brightness
dual button
+
simultaneous
press
* This action is optional, only when the Tracking Mode for your IsatDock DRIVE is configured and activated.
Action
In a Call:
Mute the microphone (uplink) on the privacy handset
(optional accessory) if connected to cradle.
In a Call:
Increase volume on the external speaker or privacy handset
(optional accessory) if connected to cradle.
Out of Call:
Increase volume of incoming ring tone on the external speaker.
In a Call:
Decrease volume on the external speaker or privacy handset
(optional accessory) if connected to cradle.
Out of Call:
Decrease volume of incoming ring tone on the external speaker.
In Tracking Mode*:
Send a tracking message to the pre-configured destination
In Alert/Emergency Mode*:
Clear the alert/emergency mode and return to the
Tracking mode*.
In Tracking Mode*:
Activate the Alert/Emergency mode.
Out of Call:
Enter LED brightness change mode. Press UP and DOWN
arrows to vary intensity. Mode will automatically exit after 5
seconds after the last button press.
IsatDock DRIVE - Installation & User Manual
LED/Sound
LED turns RED - Muted
LED turns OFF - Not muted
Audio will sound louder in privacy handset with each press.
A beep will sound indicating the increased ring tone volume .
Audio will sound quieter in privacy handset with each press.
A beep will sound indicating the decreased ring tone volume .
LED changes from RED (solid or flashing) to solid
Otherwise, LED flashing in GREEN.
One beep will sound if enabled in IDMS.
LED changes from RED (solid or flashing) to solid
Otherwise, LED flashing in GREEN.
One beep will sound if enabled in IDMS.
Track LED changes from GREEN (solid or flashing) to solid
triggered. A beep will sound if enabled in IDMS
Track LED will then flash in RED when the alert message is sent.
Track LED will finally flash YELLOW when the alert is acknowledged.
All LED's will change to WHITE and a single beep will sound when entering
brightness change mode.
A short double beep will sound when exiting change mode.
GREEN if GPS fix acquired
GREEN if GPS fix acquired
RED when the alert is
