BETA – IsatDock Drive/Lite Overview
Filename: IsatDock Docking Station _Beta _Drive_Lite_v1_1.docx
Authorised by:
Comment Closure Date:
Version
Date
01
30-AUG-2010
Page 1 of 25
IsatDock Docking Station
BETA USER GUIDE
DRIVE & LITE
DOCUMENT STATUS
Client: Inmarsat
Commercial In-Confidence (release status: see Revision History)
Status:
William Christie
Author:
REVISION HISTORY
Changes
Initial Draft Release
Filename:IsatDock Docking Station _Beta _Drive_Lite_v3.docx
Beam Communications
STRICTLY CONFIDENTIAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IsatDock LITE and is the answer not in the manual?

Questions and answers

Related Manuals for Beam IsatDock LITE

Summary of Contents for Beam IsatDock LITE

  • Page 1 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL IsatDock Docking Station BETA USER GUIDE DRIVE & LITE DOCUMENT STATUS Filename: IsatDock Docking Station _Beta _Drive_Lite_v1_1.docx Client: Inmarsat Commercial In-Confidence (release status: see Revision History) Status: William Christie Author: Authorised by:...

  • Page 2: Table Of Contents

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL TABLE OF CONTENTS 1.  Overview............4  4.3.  LITE/DRIVE – RAM Mount ....15  1.1.  LITE/DRIVE – Key Features ....5  5.  Electrical Interfaces ........16  2.  Antenna connection ........6  5.1. ...
  • Page 3 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL TABLE OF CONTENTS   Figure 1 ‐ IsatDock LITE/DRIVE  _ ______________________________________________________________________  5   Figure 2 – Door Openings  _ __________________________________________________________________________  7   Figure 3 – Phone alignment _________________________________________________________________________  7   Figure 4 – Panel Mounted Electrical Interfaces __________________________________________________________  9   Figure 5 – Keylock position  _ ________________________________________________________________________  11   Figure 6 – Privacy Handset mounting cup _____________________________________________________________  12   Figure 7 – Privacy Handset connection point  _ __________________________________________________________  14  ...

  • Page 4: Overview

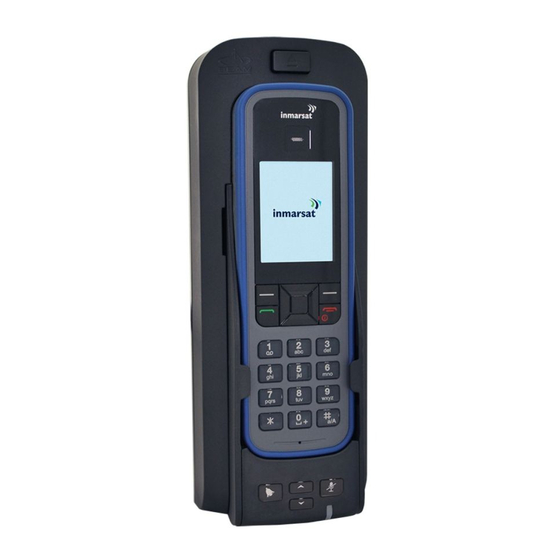

    The IsatDock LITE docking station provides a high quality mechanism for docking the Inmarst IsatPhone Pro handset. The dock is targeted for an in-vehicle application that connects to an external vehicle-mount antenna The IsatDock LITE allows the option of using an optional privacy mode handset mounted alongside the unit.

  • Page 5: Lite/Drive - Key Features

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 1.1. LITE/DRIVE – Key Features Figure 1 - IsatDock LITE/DRIVE Page 5 of 25...

  • Page 6: Antenna Connection

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 2. Antenna connection GPS Antenna Cable Satellite Antenna Cable Page 6 of 25...

  • Page 7: Functionality

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 3. Functionality 3.1. Docking Procedure The following docking procedure is common across each of the docking station types PREPARATION: To place the IsatPro Phone into the docking unit, both the ‘doors’ on the external antenna connectors and the USB/Audio connectors need to opened.
  • Page 8 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL REMOVAL: To remove the handset from the cradle, press the EJECT button at the top of the docking station. The dock will swing out and the handset can be removed. Page 8 of 25...

  • Page 9: Drive - Panel Interfaces

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 3.2. DRIVE – Panel Interfaces In the base of the DRIVE docking station there is a port for both the Data Interface and the Privacy handset. Figure 4 – Panel Mounted Electrical Interfaces...
  • Page 10 Beam Communications STRICTLY CONFIDENTIAL VOLUME DOWN Decrease volume BUTTON “A” IsatDock Lite – Ring Cycle through the different ringtones of the Lite IsatDock Drive – Track Will send a tracking SMS upon being pressed when tracking is configured STATUS LED...

  • Page 11: Adjusting Led Brightness

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 3.4. Adjusting LED Brightness Pressing the UP and DOWN buttons together will put the docking station into LED brightness adjustment mode. Once in this mode the LED’s will flash. Press UP or DOWN to increase or decrease the LED brightness to a comfortable level, depending on your environment.

  • Page 12: Installation

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 4. Installation 4.1. Privacy Handset The privacy handset is an accessory that allows users to make private calls. The privacy handset is used in conjunction with a mounting cup, that detects when the handset is ON or OFF hook.

  • Page 13: Mounting The Privacy Handset Bracket To The Isatdock

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 4.2. Mounting the privacy handset bracket to the IsatDock Step Example Instruction Place the spacer in the mounting cavity at the back of the IsatDock Ensure it is orientated correctly so that the brass...

  • Page 14: Figure 7 – Privacy Handset Connection Point

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL The mounting arm and privacy handset is now attached to the IsatDock. Insert the privacy handset cup cover to complete the assembly The Privacy Handset connects to the docking station via a RJ9 connector.

  • Page 15: Lite/Drive - Ram Mount

    4.3. LITE/DRIVE – RAM Mount The interface for mounting the IsatDock LITE/DRIVE is a ball-joint style arm fixed between two mounting plates. (shown below). This provides a compact, robust and flexible mounting arrangement that attaches the dock on either a horizontal, inclined, or vertical surface The rear plastic housing of the dock is recessed in the shape of the mount, with M4 brass nutserts molded into the plastic.

  • Page 16: Electrical Interfaces

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL Electrical Interfaces 5.1. DRIVE – Main Loom When the IsatDock DRIVE is attached to the RAM mount, the main interface loom exits from the rear of the plastics as shown in Figure 8. Tabled below are each of the connections found at the end of this loom.

  • Page 17: Powering From The "Dc Power Cable / Lead

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 5.2. Powering from the “DC power cable / lead” The DC power cable / lead can be used where AC power is unavailable. This can be connected to a 9 to 32V DC power source (such as a vehicle battery).

  • Page 18: Physical Dimensions

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 6. Physical Dimensions 6.1. LITE/DRIVE Page 18 of 25...
  • Page 19 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL Page 19 of 25...

  • Page 20: Privacy Handset

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 6.2. Privacy Handset Page 20 of 25...

  • Page 21: Placing A Call - Inbuilt Speakerphone (Drive) And Privacy Handset (Lite & Drive)

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 7. Placing a call – Inbuilt speakerphone (Drive) and Privacy handset (Lite & Drive) 1. Dock the IsatPhone into the docking station 2. Wait for the docking station to synchronize with the IsatPhone. If the IsatPhone Pro was inserted in the OFF state it can take approximately 1minute for the handset to turn ON and synchronize with the docking station.

  • Page 22: Configuring The Unit

    BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 9. Configuring the Unit The IsatDock can be configured by the IsatDock Management System. This is a Microsoft Windows application that connects to the docking station via a USB cable. This application allows users to configure settings such as: ...
  • Page 23 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL Antenna Specifications AMPLIFIER + INTEGRAL ANTENNA   Equipment Type: Maritime or Mobile   Intended Operating Environment: [ x ] Commercial   [ x ] Light Industry & Heavy Industry   Power Supply Requirement: DC 10 - 32 Volts maximum  ...
  • Page 24 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL Inamarsat Transmit: 1626.5-1660.5 MHz GPS Gain: 26 dBi INMARSAT RECEIVE Amplifier: 26 dB INMARSAT TRANSMIT Amplifier: 11 dB Antenna: 6.0 dBi (for model AT1595-83) Antenna: 3.5 dBi (for model AT1595-82)  ...
  • Page 25 BETA – IsatDock Drive/Lite Overview Beam Communications STRICTLY CONFIDENTIAL 10.1. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
