Beam IsatDock DRIVE User Manual page 18

Privacy Handset (Optional – Extra Order)
The IsatDock DRIVE provides a RJ9 audio
socket on the bottom of the docking unit, for
connection to the Beam privacy handset. This
provides a local handset function, conveniently
mounted next to the IsatDock DRIVE cradle.

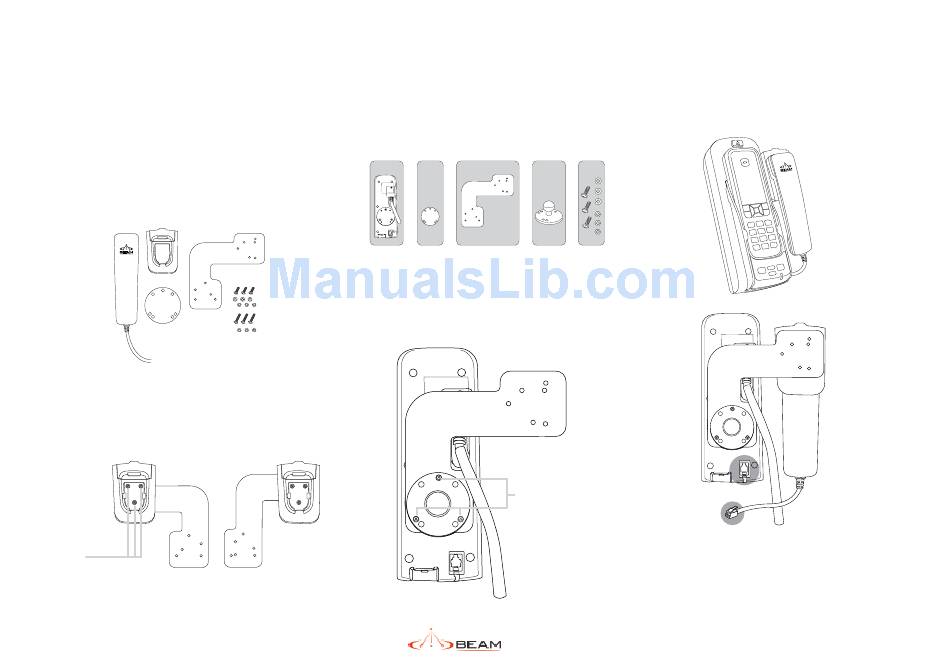

1. The Privacy Handset Kit (purchased/
ordered separately) contains a mounting
bracket, space plate, and fasteners.
2. Mount the handset cup to the mounting
plate, it can be installed to the left or
right side of the dock by simply rotating
the bracket.
3 screws
M4x14
Left and right configuration
18
3. Mount the spacer plate and the mounting
bracket to the rear of the IsatDock DRIVE, by
using the longer screws provided with the
kit. The original RAM® arm-bracket plate is
also re-installed behind these plates.
a b c
+ +
[a] Rear of IsatDock [b] Spacer
[c] Mounting plate [d] RAM base
[e] Mounting screws
3 Long Screws
M4x18
4. Plug the Privacy Handset RJ9 connector
into the bottom of the docking unit, as
per image below.
d e
+ +
Privacy Handset mode is enabled when the
handset is removed from the cup. Please ensure
to re-dock the Privacy Handset when not in use.
