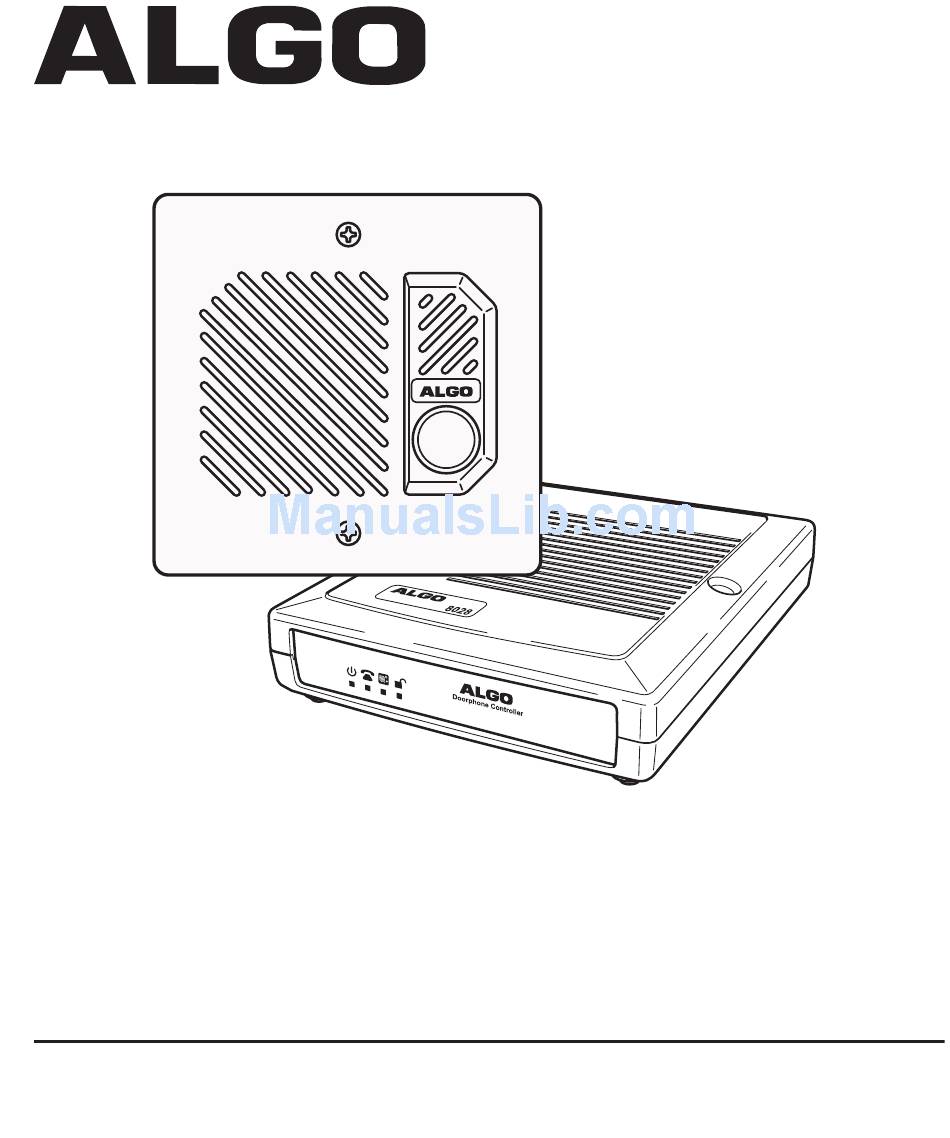

- Page 1 8028 SIP Doorphone Installation and User Guide Algo Communication Products Ltd., Burnaby, BC Canada V5J 5L2 www.algosolutions.com PN #: 90-00054C - 1 -...
-
Page 2: Support
Important Safety Notice The 8028 SIP Doorphone is designed and tested to comply with EN 60950-1:2006 safety requirements. When the Doorphone Controller is connected to wiring that exits the building, there is potential risk of lightning induced electrical surges or high voltages from fault conditions. To reduce risk, outdoor wiring should be protected by Earth grounded conduit whenever possible. -
Page 3: Table Of Contents
Table of Contents Support..............2 FCC Compliance . -
Page 4: Introduction

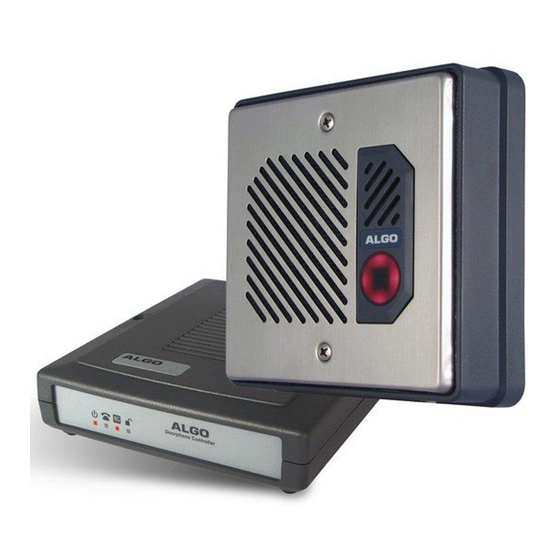

Introduction Ideal for secure business entrances, emergency intercom, and residential gates, Algo’s 8028 SIP Doorphone provides hands-free intercom capability, entrance security with door unlock control, rugged weatherproof design, and superior audio performance. Fully compatible with SIP industry standards, the 8028 SIP Doorphone... -
Page 5: Quick Install & Test
SIP Server is configured in Step 6 (below). 6. Use the Web Interface to enter the SIP Proxy Server address as well as the user account and password that the 8028 SIP Doorphone will use to register. Also enter the target extension that the Doorphone will call. -
Page 6: Applications
Applications Typical Applications for Auxiliary Inputs and Outputs The 8028 architecture and digital link between the Door Station and Controller provides flexible options using the auxiliary inputs and outputs. These are some typical applications: Cancel Ring When Door Opened In a residential or warehouse installation it is not uncommon for the door to be answered in person before the phone is answered. - Page 7 Anti-Door Tamper A feature of the 8028 Doorphone is to ring the telephone(s) with a warning alert in the event a door is ajar due to tampering (such as a door blocked open after being legitimately released for a visitor). In-Use and Ring Either the Control Unit or Door Station can be configured to provide a dry contact output during ring or in-use for channel selection (typically) of third party video monitoring...
-
Page 8: Door Or Gate Control Basics
Door or Gate Control Basics Control contacts are provided from the Doorphone Controller and are typically used for door strike activation or gate control. For security, the door control relay is located in the Controller to avoid entry by tampering. The Door Station dry contact output (OUT) may be configured for ‘low security’... - Page 9 The Door Control relay may also be configured for alternate functionality including In-Use, Ring, and Call Button Press. For more information on applications for the 8028 SIP Doorphone, please visit www.algosolutions.com/8028. The 8028 Doorphone firmware may be modified through the web interface and Algo routinely accepts requests for custom firmware for unique applications.
-
Page 10: Setup And Installation
Setup and Installation Max 1000 feet (300m) - 10 -... -
Page 11: Programming And Configuration
Programming and Configuration Connection to Network and Obtaining IP Address After connecting the 8028 to a network port, watch for the PWR light to start winking (on and blinking off) during initialization. The 8028 will then attempt to obtain an IP address from the DHCP server. If unsuccessful, the 8028 will default to the fixed IP address 192.168.1.111. -
Page 12: Basic Settings
Basic Settings SIP Domain/ SIP Server Name or IP address Proxy Extension The phone number that the 8028 registers with the SIP Server. It will auto-answer any inbound calls. Auth ID Authentication ID; Used to register the device on the SIP Server. Password SIP password used to register the device on the SIP Server. -
Page 13: Audio
Audio Speaker Volume Speaker audio level in 3 dB steps (Default: 8) Microphone Microphone audio level in 3 dB steps (Default: 7) Volume Ringback Tone Allows audible ringback tone to be played on Door Station speaker until call is answered •... -
Page 14: Door Relay
Door Relay Settings - 14 -... - Page 15 1-4 digit DTMF code that will lock the door again when it is Code latched open. Leave this field blank to disable this feature. DTMF Detection Use the default of ‘Auto’ unless advised by Algo technical support. Type Allow Network Allows auxilary relay control by network command. Contact Control support for more information.
-
Page 16: Advanced Settings
Advanced Settings Network - 16 -... - Page 17 Protocol DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8028 on the network. Alternatively the 8028 can be set to a static IP address. VLAN Mode Enables or Disables VLAN Tagging.
-
Page 18: Admin
Admin - 18 -... - Page 19 Confirmation Re-enter password to log into 8028 web interface. Device Name Name to identify the device in the Algo Network Device Locator Tool. NTP Time Allows the 8028 to synchronize to an external time server.
-
Page 20: Provisioning
Provisioning Provisioning allows installers to pre-configure 8028 units prior to installation on a network. It is typically used for large deployments to save time and ensure consistent setups. There are two different Provisioning methods that can be used: via DHCP Option 66 or via a Static Server. -
Page 21: Generating A Configuration File
MD5 Checksum In addition to the .conf file, an .md5 checksum file must also be uploaded to the Provisioning server. This checksum file is used to verify that the .conf file is transferred correctly without error. A tool such as can be found at the website address below may be used to generate this file. http://www.fourmilab.ch/md5 The application doesn’t need an installation. -
Page 22: Call
If using a generic configuration file, extensions and credentials have to be entered manually once the 8028 has automatically downloaded the configuration file. Generating a specific configuration file Follow steps 1 to 6 as listed in the section “Generating a generic configuration file” on page Rename file settings.txt to algom[MAC address].conf (e.g. - Page 23 Answer Auto-answer or ignore inbound calls Inbound Call • Enabled (Default) • Disabled Answer Tone An optional beep tone can be played at the Door Station when it answers an inbound call • Enabled (Default) • Disabled Outbound Ring Cancel dial attempt if call is not answered within specific duration. Limit •...
-
Page 24: Auxilary I/O
Auxiliary I/O - 24 -... - Page 25 Controller and • In-Use (Default) • Follow Controller Input Door Station • Dial • Follow Station Input Output Options • Call Button Press • Disabled • Door Control • Door Sensor • Door Alarm Door Relay • In-Use • Door Alarm •...
-
Page 26: Security
Security Max Door Open If the Controller or Door Station input is connected to a physical door sensor and also configured in Door Sensor mode (See “Auxiliary I/O Settings” on page 31), then a Door Alarm condition can be triggered if the door remains open for longer than a threshold of: •... -
Page 27: Advanced Sip
Advanced SIP - 27 -... - Page 28 Outbound IP address for outbound proxy. A proxy (server) stands between a Proxy private network and the internet. STUN Server IP address for STUN server if present. Register Period Maximum requested period of time where the 8028 will re-register (seconds) with the SIP server.
-
Page 29: System
Restore settings from a backup file. Configuration File Restore Resets all 8028 device settings to factory default values. Configuration to Defaults Reboot the Reboots the device. Device Firmware Image This is the firmware image and checksum as provided by Algo MD5 Checksum - 29 -... -
Page 30: Upgrade Firmware
Upgrade 8028 Firmware From the top menu, click on System, then Maintenance. In the Maintenance section, click Reboot Wait 30-60 seconds for the device to reboot and the web page to automatically reload. Login to the device again, and click on System. In the Upgrade section, click on Choose File and select the 8028 firmware file to upload. -
Page 31: System Log
System Log Part 1 Part 2 Use on the advice of Algo technical support only. View All LED Details • On steady: Power is OK, but Ethernet Link not established Power • Blinks one second on, one second off: Ethernet Link status OK, but IP Address not yet obtained •... -
Page 32: Connection Details
Connection Details Relay Normally Open Door Control 24V 0.3A 5 Position Removable Common Terminal Block Normally Closed Auxiliary PWR - 0.3 A (GND) Power PWR + 0.3 A (24 V) Center Pair (Red & Door Station Door Station Jack Green) RJ12 Telephone Jack Middle Pair Dry Contact Input... -
Page 33: Connections And Lights
Connections and Lights Auxiliary Dry Contact Outputs Both the Doorphone Controller and Door Station provide a dry contact output for connection to auxiliary devices. Maximum switching capacity is 30 V 50 Default operations are as follows: • Doorphone Controller Output = In-Use (commonly used for camera control) •... -
Page 34: Specifications
Specifications Compatibility Configuration Web Interface or TFTP Auto-Provisioning Network Address DHCP or static IP address NAT (Network Address STUN Server or Keep-Alive Translation) Speech Full Duplex Capable Codec G.711 Physical Separate Controller and Door Station Controller Power AC Mains Adapter 95-230 V 50/60 Hz Included Indicators Power, Door Station Status, In-Use, Door Unlock Network Connection... - Page 35 Auxiliary Output In-Use (Default); Ringing; Call button pressed; Door Functions unlock; Door open (requires door sensor); Door alarm (requires door sensor); Door sensor NC (Default) or NO; Follow Controller input; Follow Door Station input; Disabled Door Station Power Provided by Controller link Wiring Up to 1,000 Ft (300 m) 24 AWG single twisted pair to controller...
- Page 36 Related Doorphone Products 8028V Tamper-Proof SIP Doorphone Same as the model 8028 SIP Doorphone with the exception that the supplied digital door station is a special tamper-proof design. Suitable for environments where there is a high potential for attempted damage or abuse.
