Installation & Configuration
Document 90-00073D
2016-09-29
Page 1

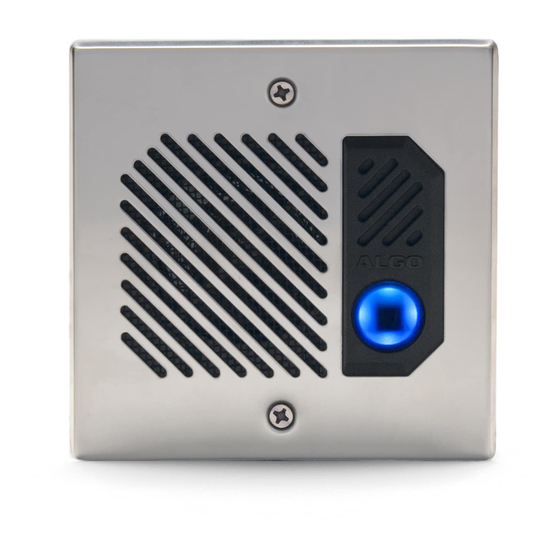

8201 SIP PoE Intercom
FW Version 1.3.2
Order Codes
8201
SIP PoE Intercom
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
(604) 454-3792
support@algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Algo 8201

  • Page 1 8201 SIP PoE Intercom FW Version 1.3.2 Installation & Configuration Order Codes 8201 SIP PoE Intercom Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...
  • Page 2: Table Of Contents

    Table of Contents IMPORTANT SAFETY INFORMATION ...................... 7 ABOUT THE ALGO SIP 8201 SIP POE INTERCOM ..................8 GETTING STARTED - QUICK INSTALL & TEST ................... 9 INSTALLATION ............................. 10 WEB INTERFACE ........................... 11 WIRING CONNECTIONS ........................12 ........................12...
  • Page 3 ERVER ) ....................... 34 OLLING NTERVALS SECONDS ..........................34 CTIVE ERVER .......................... 34 UTOMATIC AILBACK ..........................34 OLLING ETHOD Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 3 www.algosolutions.com...
  • Page 4 SYSTEM – SYSTEM LOG ........................38 SPECIFICATIONS ........................... 39 8061 IP RELAY CONTROLLER ........................ 40 CONFIGURING THE 8061 ........................41 FCC COMPLIANCE STATEMENT ......................42 Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 4...
  • Page 5 / transient. Algo recommends that this product be installed by a qualified electrician. If you are unable to understand the English language safety information then please contact Algo by email for assistance before attempting an installation support@algosolutions.com.
  • Page 6 Spannungssprüngen geschützt werden. Algo empfiehlt das Produkt von einem qualifizierten Elektriker installieren zu lassenv. Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren Sie bitte Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung zu erhalten. Algo kann unter der folgenden E- Mail-Adresse erreicht werden: support@algosolutions.com.
  • Page 7: Important Safety Information

    “sound to air” acoustic testing. WET OR OUTDOOR ENVIRONMENTS The 8201 SIP PoE Intercom is intended for indoor or outdoor locations and may be subjected to spray or weather provided the rear wiring cavity is properly sealed to prevent water ingress.
  • Page 8: About The Algo Sip 8201 Sip Poe Intercom

    Algo’s 8201 SIP PoE Intercom provides hands-free intercom capability, entrance security with door unlock control, rugged weatherproof design, and superior audio performance. Fully compatible with SIP industry standards, the 8201 SIP PoE Intercom will work with most hosted or enterprise SIP-base servers supporting third-party SIP endpoints.
  • Page 9: Getting Started - Quick Install & Test

    Algo locator tool to find Algo devices on your network: www.algosolutions.com/locator 3. Access the 8201 SIP PoE Intercom web page by entering the IP address into a browser (Chrome, IE, Firefox etc) and login using the default password algo.
  • Page 10: Installation

    No lightning protection is required by UL or CSA if the 8201 SIP PoE Intercom is located on the outside wall of a building and the wiring is inside the perimeter of the building.
  • Page 11: Web Interface

    After boot up, the speaker will beep and the intercom will have obtained an IP address. If there is no DHCP server the 8201 SIP PoE Intercom will default to the static IP address 192.168.1.111. Before the 8201 is configured, the call button on the front can be pressed to play the IP address over the speaker.
  • Page 12: Wiring Connections

    Network Connection Connect RJ45 jack from PoE network switch or non-PoE network and 48V 350 mA IEEE 802.3af compliant power injector. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 12 www.algosolutions.com...
  • Page 13: Door Control

    **Coming Soon** Door Sensor (Dry Contact Input) It can be configured as an auxiliary Call Button input. Additional features coming soon. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 13...
  • Page 14: Blue Call Button

    Reset The 8201 SIP PoE Intercom can only be reset during a power up. To reset: reboot or power cycle the 8201 SIP PoE Intercom, wait until the blue call buttons flashes and then press and hold the button until it begins a double flash pattern.
  • Page 15: Web Interface Login

    This password can be changed using the Admin tab after logging in the first time. Status The device’s Status page will be available before and after log on. The section can be used to check 8201’s SIP Registration status, Call Status and other information. Document 90-00073D Algo Communication Products Ltd...
  • Page 16: Basic Settings Tab - Sip

    SIP Domain (Proxy Server) SIP Server Name or IP Address. SIP Extension Used to register the 8201 on the SIP Server. Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension.
  • Page 17: Authentication Password

    Enter the phone number that will be dialed when the call button is pressed. This can also be a Hunt Group number. Ensure that voice mail is not reached. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 18: Basic Settings Tab - Features

    Normalizes the audio level. This ensures audio level heard at the speaker is always at a consistent level, independent of the phone that is used to answer the call. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 19: Answer Inbound Call

    Answer Inbound Call Allow the 8201 to auto answer an inbound call. By default, this functionality is activated. Play Answer Tone An optional beep tone can be played over the speaker when the intercom answers an inbound call. Outbound Ring Limit This feature can be used to set a limit on how long the intercom will ring before timing out.
  • Page 20: Basic Settings Tab - Door Control

    Basic Settings Tab – Door Control The 8201 can be used with the optional 8061 SIP Relay Module for additional door security as it is located inside the building. This section allows you to configure the 8061 IP Relay Controller settings (if used), as well as the settings for the on-board relay.
  • Page 21: Network Door Controller Password

    Default password is algo. Note: the Relay Module Password is used solely to secure the link between the 8201 and the 8061. It is not the same as the Momentary Open Code. Momentary Open Code 1-4 digit DTMF code that can be used to unlock the door for a brief period of time.
  • Page 22: Basic Settings Tab - Multicast

    Basic Settings Tab – Multicast The 8201 SIP PoE Intercom is able to act as a multicast slave, allowing it to multicast messages from an Algo master device over the speaker. Please note, the 8201 is not meant for paging in large...
  • Page 23: Advanced Settings Tab - Network

    DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8201 SIP PoE Intercom on the network. Alternatively the 8201 SIP PoE Intercom can be set to a static IP address. VLAN Mode Enables or Disables VLAN Tagging.
  • Page 24: Vlan Id

    Provides quality of service if the DSCP protocol is supported on your network. Can be specified independently for SIP control packets versus RTP audio packets. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 25: Advanced Settings Tab - Admin

    Advanced Settings Tab – Admin Password Password to log into the 8201 SIP PoE Intercom web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will...
  • Page 26: Web Interface Session Timeout

    Log Level Use on the advice of Algo technical support only. Log Method Allows the 8201 SIP PoE Intercom to write to external Syslog server if the option for external (or both) is selected. Log Server If “Network” or “Both” is selected this is the address of the Syslog server on the network.
  • Page 27: Advanced Settings Tab - Time

    Note, this time value will be lost at power down, or overwritten if NTP is currently active. Time and date are used only for logging purposes and are not typically required. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 28: Advanced Settings Tab - Provisioning

    “Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, or HTTP. For example, 8201 SIP PoE Intercom configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from.
  • Page 29: Md5 Checksum

    8. File algop8201.conf can now be uploaded onto the Provisioning server If using a generic configuration file, extensions and credentials have to be entered manually once the 8201 SIP PoE Intercom has automatically downloaded the configuration file. Document 90-00073D Algo Communication Products Ltd...
  • Page 30: Generating A Specific Configuration File

    Since all the necessary settings can be included in this file, the 8201 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8201 SIP PoE Intercom can be found on the back label of the unit.
  • Page 31: Advanced Settings Tab - Tones

    A zip files containing one or more audio files may also be uploaded. File names must be limited to 32 characters, with no spaces. Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 32: Tone Files Included In Memory

    Tone Files Included in Memory The 8201 SIP PoE Intercom includes several pre-loaded WAV files that can be selected to play for various events. The web interface allows selection of the WAV file and also the ability to play the WAV file immediately over the speaker for testing.
  • Page 33: Advanced Settings Tab - Advanced Sip

    SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. Keep-alive Method If Double CRLF is selected the 8201 SIP PoE Intercom will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT.
  • Page 34: Server Redundancy Feature

    Backup Server #1 If primary server is unreachable the 8201 SIP PoE Intercom will attempt to register with the backup servers. If enabled, the 8201 SIP PoE Intercom will always attempt to register with the highest priority server. Backup Server #2 If backup server #1 is unreachable the 8201 SIP PoE Intercom will attempt to register with the 2nd backup server.
  • Page 35: Advanced Settings Tab - Advanced Multicast

    Multicast Audio Sync When paging to the 8201 SIP PoE Intercom as well as other third party devices, the low latency of the 8201 may cause the audio to lead other devices. By adding audio delay up to one second, the 8201 may be synchronized with other endpoints or telephones that have greater latency.
  • Page 36: Page Tone And Page Volume

    Page Tone and Page Volume When an Algo device is the multicast master, a page tone will play on the slave device, so it is recommended to set the slave tone to “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the slaves (above) each time they detect page audio starting, allowing them to play a tone.
  • Page 37: System Tab - Maintenance

    Save the device settings to a text file for backup or to setup a provisioning configuration file. Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8201 SIP PoE Intercom device settings to factory default values. Reboot the Device Reboots the device. Method Specify whether the firmware files will be downloaded from the local computer or a remote URL.
  • Page 38: Firmware Image

    (refer to top right of Control Panel). System – System Log System log files are automatically created and assist with troubleshooting in the event the 8201 SIP PoE Intercom does not behave as expected. Document 90-00073D Algo Communication Products Ltd...
  • Page 39: Specifications

    Compliance: EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada) Document 90-00073D Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 39...
  • Page 40: 8061 Ip Relay Controller

    The 8201 can provide secure door control functionality when used with the optional Algo 8061 IP Relay Controller. The 8061 serves as a bridge between the 8201 and peripheral hardware such as door strikes, door sensors, door bells, etc. As a door opening controller, the 8061 can be located in a secure environment to prevent tampering by outside visitors.
  • Page 41: Configuring The 8061

    PoE and Relay Connections on back of 8061 IP Relay Controller: Configuring the 8061 1. Find the IP address of the Algo 8061 using the Algo locator tool available from the Algo website www.algosolutions.com/locator). This tool displays all of the Algo devices available on the network, and their corresponding IP addresses.
  • Page 42: Fcc Compliance Statement
