8036 SIP Multimedia Intercom Install Guide
This sheet will guide you with the physical
installation of your new 8036 SIP Multimedia
Intercom.
For full product documentation, including
configuration, SIP registration, and application
development, please visit
www.algosolutions.com/8036docs
What's Included
• 8 036 SIP Multimedia
Intercom (includes
assembled main
housing, removable
Front Bezel, Surface
Mount Bracket, Algo
Logo Badge, and
Security Screw)

Wall Mounting

The 8036 can be either surface or flush mounted.
The unit is designed to shed rainwater and allow air
ventilation only when oriented in the correct position
(ALGO logo at top) and installed vertically.

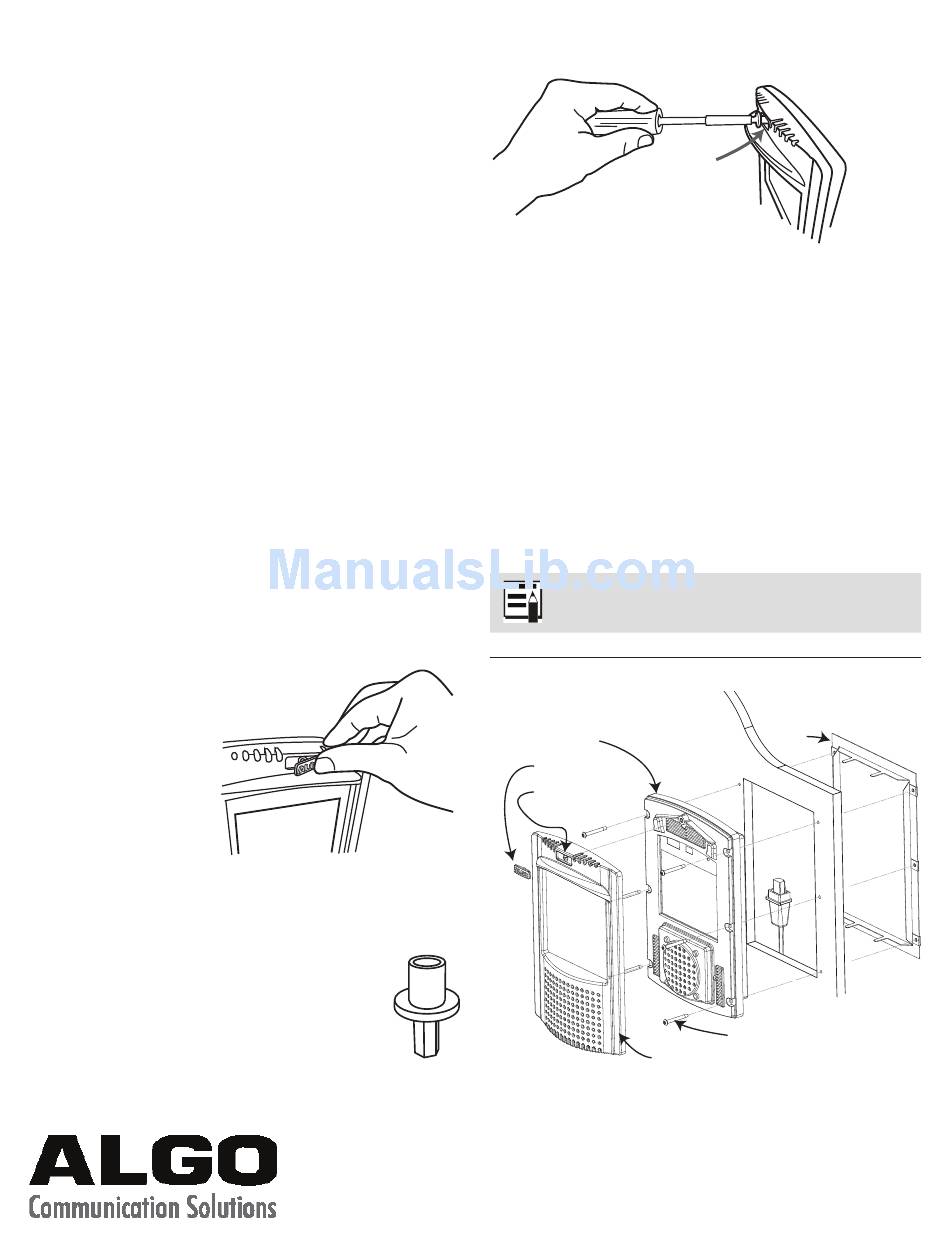

Removal of Front Bezel for Installation
The 8036 is shipped partially assembled and must be
partially disassembled
before it can be
installed.
Remove the security
screw behind the
ALGO Logo Badge by
first pressing on one
side of the badge. This
will raise the other
side so that it can be
removed easily by
hand.
A security bit ("Algo Security Tool") is included with the
8036 that fits standard socket
screwdrivers. Use the bit in a screwdriver
to remove the security screw and carefully
remove the Front Bezel by pulling at the
top and then disengaging the bottom clip.
260260-02
• D rywall Bracket
• M ounting Gasket
• A lgo Security Tool
• S ix #8 x 1.5" Type A Pan
Head Phillips Screws
• S ix #8 x 1" Type B Pan
Head Phillips Screws
• E thernet Cable Boot
Put the Front Bezel, Security Screw, and Logo Badge
aside for re-assembly after mounting.
Flush Mounting into Drywall (Interior)
1. Create a drywall cut out per the template on page
4 of this sheet.
2. Place the Drywall Bracket into wall and bend tabs
around to the front of the drywall to hold in place.
3. After connecting the Ethernet cable, use the #8 x
1.5" Type A Pan Head screws to secure the 8036
housing to the Drywall Bracket.
4. Replace the Front Bezel and keep the Algo Security
Tool in a safe location.
5. Replace the ALGO Logo Badge.
The Mounting Gasket and Surface Mount
Bracket are not required for drywall mounting.
Flush mounting the 8036 on inside drywall
8036 Assembly
Logo Badge
Security Screw
Under Logo Badge
1
Algo
Security
Tool
Drywall
Bracket
#8 x 1.5" Type A Pan Head
(Typical) Six needed
Front Bezel
Algo Communication Products Ltd.
4500 Beedie Street
Burnaby, BC Canada V5J 5L2
www.algosolutions.com
Drywall
90-00060A
