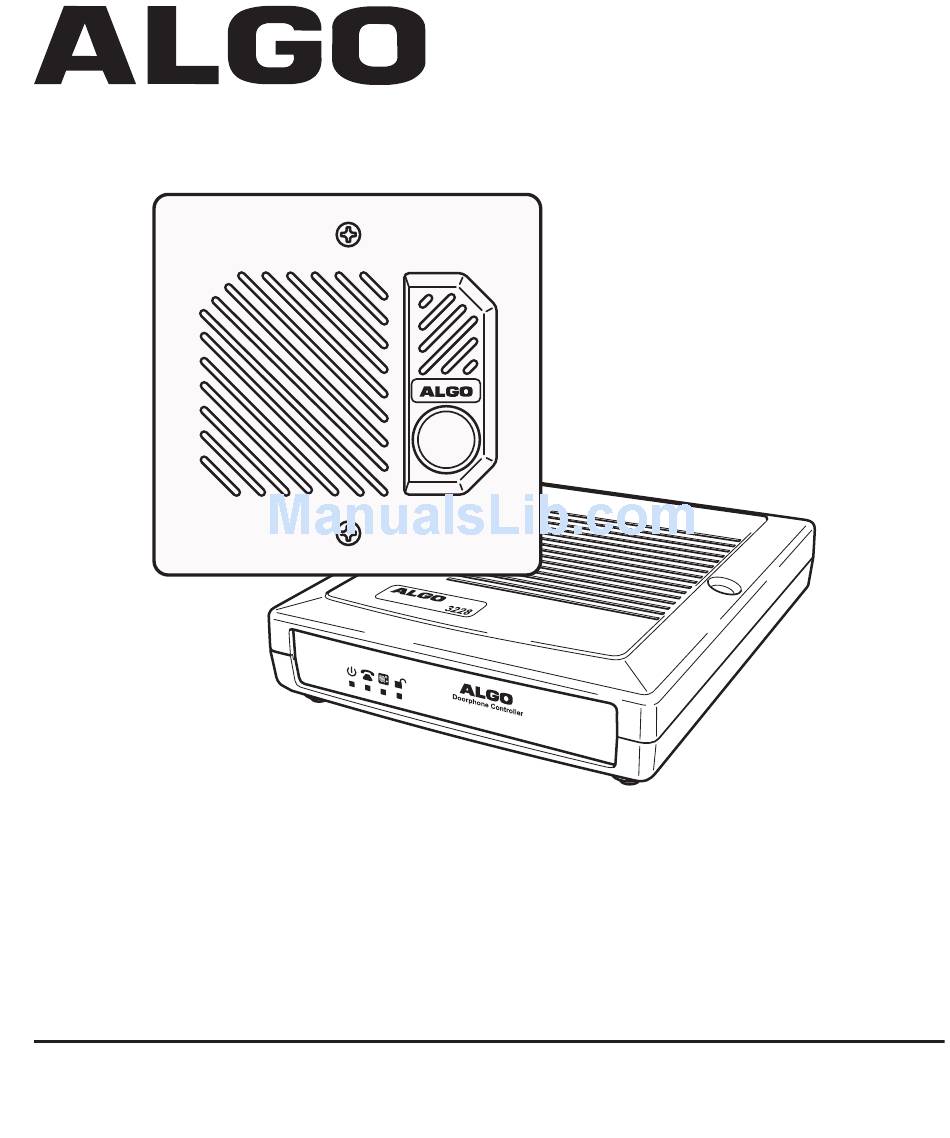

- Page 1 3228 Station Port FXS Doorphone Installation and User Guide Algo Communication Products Ltd., Burnaby, BC Canada V5J 5L2 www.algosolutions.com 280817-1 Document #: 90-00059C - 1 -...
-
Page 2: Important Safety Notice
Installation and User Guide. Algo and its subsidiaries assume no responsibility for any loss or claims by third parties which may arise through the use of this product. Algo makes no warranties, either expressed or implied, regarding the Algo 3228 Doorphone or related software and firmware, its merchantability, or its fitness for any particular purpose. -
Page 3: Table Of Contents
Related Algo Doorphone Products . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
Introduction The 3228 Station Port FXS Doorphone provides a simple-to-install telephone- integrated entry security intercom solution for business and residential applications. Visitors cause a telephone to ring which enables conversation when answered and the capability to allow remote entry using door release features. -
Page 5: Quick Install & Test
Quick Install & Test The 3228 Station Port FXS Doorphone is pre-configured for a typical installation. All that is needed is to configure a target phone number. Programming is only required to change default setting or for more Telephone Jack advanced applications. - Page 6 6. Press the call button of the Door Station. The phone will ring and the call button will flash. 7. Answer to communicate with the Door Station. Press the DTMF digit 6 to activate the door control relay for three seconds if applicable. - 6 -...
-
Page 7: Application Basics
Application Basics Typical Applications for Auxiliary Inputs and Outputs The 3228 architecture and digital link between the Door Station and Controller provides flexible options using the auxiliary inputs and outputs. These are some typical applications: Cancel Ring When Door Opened In a residential or warehouse installation it is not uncommon for the door to be answered in person before the phone is answered. - Page 8 For more information on applications for the 3228 Station Port FXS Doorphone, please visit www .algosolutions .com/3228 . The 3228 Doorphone firmware may be modified by USB connection to a PC and Algo routinely accepts requests for custom firmware for unique applications .
-
Page 9: Basic Wiring Setup
Basic Wiring Setup 3228 Doorphone Controller 24V 0.3A 24VDC 0.6A USB Configuration Door Control Relay - Port see Door Control Section Power Input 24 V 0.6 A Door Station Jack Telephone Jack. Connect to FXO Gateway, analog 6-Wire Modular Cable telephone, or phone (Supplied) system trunk port... -
Page 10: Programming & Configuration
Programming & Configuration The 3228 Station Port FXS Doorphone may be programmed either by DTMF or through software using the USB connection on the 3228 Controller. To enter Program Mode via the DTMF interface, dial **00 followed by the four digit password if configured (there is no password by default). - Page 11 Setting DTMF Description Default Name Code Open Code **31 LL S… LL = length of string (00 to 04) Digit 6 S… = numeric string (e.g. **31016 = “6”) Relay Time **32 nn nn=00: ¼ second nn=01..30: 1-30 seconds 3 sec Cancel with Door **33 nn nn=00: No...
- Page 12 Setting DTMF Description Default Name Code Max Door Open **51 nn nn=00: 30 seconds nn=04: 60 minutes 07 None nn=01: 2 minutes nn=05: 90 minutes nn=02: 15 minutes nn=06: 120 minutes nn=03: 30 minutes nn=07: None Ring Phone Upon **52 nn nn=00: Call every 2 minutes 04 None Security...
-
Page 13: Door Or Gate Control Basics
Door or Gate Control Basics Door control contacts are provided from the Doorphone Controller and are typically used for door strike activation or gate control. For security, the door control relay is located in the Controller to avoid entry by tampering. The Door Station dry contact output (OUT) may be configured for ‘low security’... -
Page 14: Power Supply
Power Supply The Doorphone Controller provides an auxiliary 24 V 0.3 A power supply which is suitable for common types of door strikes. If more current or a different voltage is required, then the customer must provide a matching power supply for the electric strike or magnetic lock. -
Page 15: Connections And Lights
Connections and Lights Auxiliary Dry Contact Outputs Both the Doorphone Controller and Door Station provide a dry contact output for connection to auxiliary devices. Maximum switching capacity is 30 V 50 mA. Default operations are as follows: • Doorphone Controller Output = In-Use (commonly used for camera control) •... -
Page 16: Connection Details
Connection Details Door Control (5 Position Removable Terminal Block) Relay Normally Open 24V 0.3A Common Normally Closed Auxiliary Power PWR - 0.3 A (GND) PWR + 0.3 A (24 V) Door Station Jack (RJ12 Telephone Jack) Center Pair (Red & Green) Door Station Middle Pair (Yellow &... -
Page 17: Specifications
Specifications Telephone Interface Connect to FXS gateway or telephone system analog station port Door Control Contact Rating Maximum 30 V 1 Amp Contact Type 1 Form C, Normally Open and Normally Closed Duration Programmable, including latch Activation DTMF, programmable Auxiliary Power 24 Vdc, current limited to 300 mA Terminal Block Wiring 12-26 AWG... -
Page 18: Door Station
Door Station Power Provided by Controller link Wiring Single pair, normally 24 AWG twisted 1,000 Feet (300 m) Maximum Dry Contact Output Maximum 30 V 50 mA switching (programmable function) Dry Contact Input Contact detected using 24 Vdc 1 mA (programmable function); Maximum resistance Ω... -
Page 19: Configuration Tool
Note that the USB Configuration Tool can also be downloaded from Algo’s website at www.algosolutions.com/3228 After installation, the program can be accessed by going to Start > All Programs > Algo > 3228 Doorphone > 3228 Configuration Tool USB Configuration Tool Sample Screen - 19 -... -
Page 20: Related Algo Doorphone Products
FXO Gateway or telephone system analog trunk port. Configurable ring cadence and CLID message. Supplied with digital door station with both stainless steel and brass faceplates. www .algosolutions .com/3226 Algo Communication Products Ltd., Burnaby, BC Canada V5J 5L2 www.algosolutions.com - 20 -...
