3008 Doorphone
Installation Guide

About the 3008 Doorphone

The Algo Doorphone Model 3008 consists of a control unit (3007), door station (3004) and power
supply (3242). All options and controls are factory set to allow for a quick installation of simple
wire connections.

Quick Install

STEP 1
Run a two-pair cable from the door station location to the control unit location (equipment room),
A recessed double-gang utility box is ideal for mounting the door station. The door station can be
located anywhere a speakerphone or talk-back paging would be considered. The door station
should be mounted at shoulder height.
STEP 2

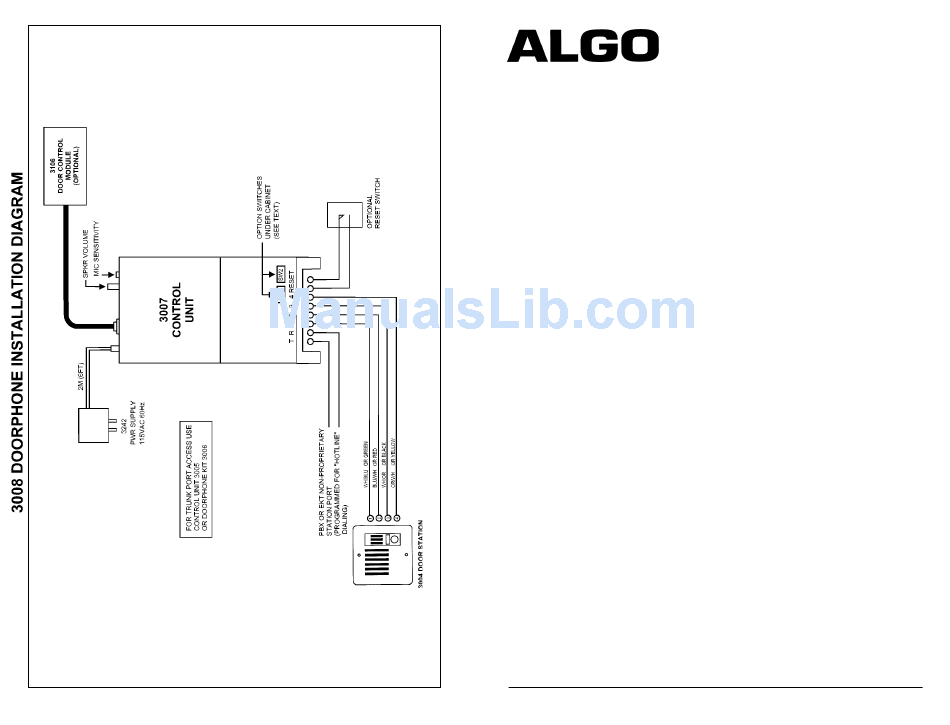

Connect the door station as per the attached wiring diagram. Use this wiring configuration as a
standard so that all installations are similar. Mount the door station, dressing all wires neatly.
STEP 3
Wall mount the control unit near an AC outlet. Connect the door station wires per the attached
drawing.
STEP 4
Connect the control unit terminals (T & R) to a PBX or EKT non-proprietary station port. In the
case of a proprietary or digital port a terminal adaptor to analogue would be required. This is
sourced from the PBX or EKT manufacturer.
STEP 5
Connect the power adaptor into the rear of the control unit cabinet and plug into an AC outlet.
STEP 6
Test the unit by pushing the call button of the door station. The control unit will go off hook to the
PBX or EKT telephone system. The telephone system is programmed to route the call to an
attendant position or designated station. Answer the "call" and ensure that a voice path is
established with the door station.

SWITCH FUNCTION SWITCH 1

The switches referred to are located on the rear of the control unit (3007)
Factory setting is as follows:
SWITCH-1 X = ON O = OFF
POS: 1 2 3 4 5 6
O X X O O O X
Algo Communication Products Ltd. 4500 Beedie Street, Burnaby, B.C. Canada V5J 5L2
Tel: (604) 438-3333 Fax: (604) 437-5726
7 8
X
