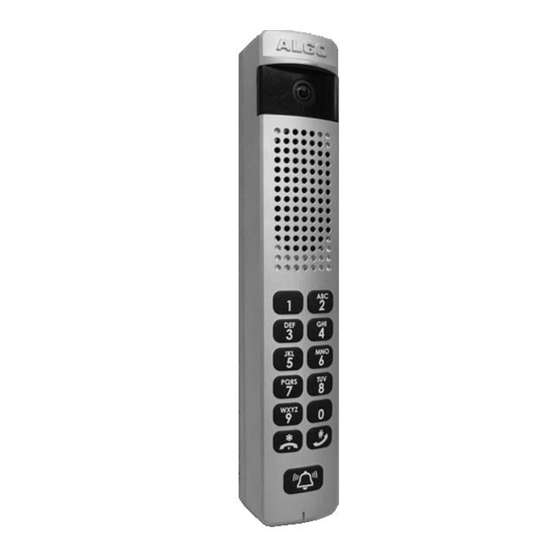

- Page 1 8039 SIP Video Intercom FW Version 1.3 Installation & Configuration Order Codes 8039 SIP Video Intercom Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION ...................... 7 ABOUT THE ALGO SIP 8039 SIP VIDEO INTERCOM ................. 8 GETTING STARTED - QUICK INSTALL & TEST ................... 9 INSTALLATION ............................ 10 WEB INTERFACE ........................... 11 WIRING CONNECTIONS ........................12 ........................12... - Page 3 NTERFACE ROTOCOL SNMP S ) ......................32 UPPORT GET ONLY ADVANCED SETTINGS TAB – TIME......................33 ............................33 IMEZONE Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 3 www.algosolutions.com...
- Page 4 SYSTEM – SYSTEM LOG ........................44 SPECIFICATIONS ........................... 45 8061 IP RELAY CONTROLLER ........................ 47 CONFIGURING THE 8061 ........................48 FCC COMPLIANCE STATEMENT ......................49 Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 4...
-
Page 5: Important Safety Information
/ transient. Algo recommends that this product be installed by a qualified electrician. If you are unable to understand the English language safety information then please contact Algo by email for assistance before attempting an installation support@algosolutions.com. Consignes de Sécurité Importantes Ce produit est alimenté... - Page 6 Spannungssprüngen geschützt werden. Algo empfiehlt das Produkt von einem qualifizierten Elektriker installieren zu lassenv. Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren Sie bitte Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung zu erhalten. Algo kann unter der folgenden E- Mail-Adresse erreicht werden: support@algosolutions.com.
-
Page 7: Important Safety Information
“sound to air” acoustic testing. WET OR OUTDOOR ENVIRONMENTS The 8039 SIP Video Intercom is intended for indoor or outdoor locations and may be subjected to spray or weather, provided the rear wiring cavity is properly sealed to prevent water ingress. -
Page 8: About The Algo Sip 8039 Sip Video Intercom
Fully compatible with SIP industry standards, the 8039 SIP Video Intercom will work with most hosted or enterprise SIP-base servers supporting third-party SIP endpoints. -
Page 9: Getting Started - Quick Install & Test
PoE network switch. The backlight keypad will turn on. After about 30 seconds, a beep will signal the completion of the boot process. 2. After the boot is complete, press the blue call button on the 8039 hear the IP address. -
Page 10: Installation
No lightning protection is required by UL or CSA if the 8039 is located on the outside wall of a building and the wiring is inside the perimeter of the building. -
Page 11: Web Interface
After boot up, the speaker will beep and the intercom will have obtained an IP address. If there is no DHCP server the 8039 SIP Video Intercom will default to the static IP address 192.168.1.111. Before the 8039 is configured, the call button on the front can be pressed to play the IP address over the speaker. -
Page 12: Wiring Connections
Serial Control **Coming Soon** Door Sensor (Dry Contact Input) **Coming Soon** Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 12 www.algosolutions.com... -
Page 13: Backlit Keypad And Call Button
Reset The 8039 SIP Video Intercom can only be reset during a power up. To reset, reboot or power cycle the 8039 SIP Video Intercom, wait until all the backlit keys start flashing. Then press and hold the call button until the call button begins a double flash pattern. -
Page 14: Web Interface Login - Status And Login
This password can be changed using the Admin tab after logging in the first time. This device’s Status page will be available before and after log on. The section can be used to check 8039’s SIP Registration status and other information. Document 90-00075A... -
Page 15: Status Tab - Video
“Session Password” field. Video settings like brightness, contrast, view (Dewarped or Fisheye) are also available in the “Basic Settings > Video” tab. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 15 www.algosolutions.com... -
Page 16: Basic Settings Tab - Sip
SIP Domain (Proxy Server) SIP Server Name or IP Address. SIP Extension Used to register the 8039 on the SIP Server. Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension. -
Page 17: Authentication Password
Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 18: Basic Settings Tab - Features
Answer Inbound Call Allow the 8039 to auto-answer an inbound call. By default, this functionality is activated. Document 90-00075A Algo Communication Products Ltd... -
Page 19: Play Answer Tone
If the call is not answered within this time period, the 8039 will go back to an idle state. Ringback Tone Allows an audible ringback tone to be played on the 8039 speaker until the call is answered. Allow Call Button to End Active Call If enabled, allows the visitor to end an active call by pressing the call button. -
Page 20: Basic Settings Tab - Video
Camera View Camera view can be set to either a “Dewarped” full page view or a circular “Fisheye”. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 20 www.algosolutions.com... -
Page 21: White Balance
SIP Video Capacity This controls the video parameters included in the SIP 'Offer' that is sent when the 8039 initiates a call. Select the video capacity as supported by the video phone that will answer the calls. SIP Video Stream This controls the actual video stream sent by the 8039. -
Page 22: Maximum Browser Sessions
“Disabled” for unlimited number of sessions. Session Passcode Allows a separate password to be configured that allows access to only the "Status > Video" tab. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 22 www.algosolutions.com... -
Page 23: Basic Settings Tab - Keypad
The Call button can be configured to play a voice-menu detailing the available options to the visitor. The voice-menu can be uploaded via a custom audio file in the “Advanced Settings > Tones” tab. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 24: Dial Mode - Keypad Dial
Enable or disable the call button’s blue backlight. Backlight Brightness Set the enabled keypad and call button backlight level to “High Brightness” or “Low Brightness”. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 24 www.algosolutions.com... -
Page 25: Basic Settings Tab - Door Control
Basic Settings Tab – Door Control The 8039 can be used with the optional 8061 IP Relay Controller for additional door security, as it is located inside the building and separate from the public-facing intercom. This section allows you to configure the 8061 settings (if used). -
Page 26: Network Door Controller Address
Default password is algo. Note: The Relay Module Password is used solely to secure the link between the 8039 and the 8061. It is not the same as the Momentary Open Code. Momentary Open Code 1-4 digit DTMF code that can be used to unlock the door for a brief period of time. -
Page 27: Code #1 - 50
Leave this field blank to disable this feature. Door Unlock Tone A sound can be played when a door is open, to create awareness. Local Door Relay Enable or disable the door control relay on the 8039. Document 90-00075A Algo Communication Products Ltd (604) 454-3792... -
Page 28: Basic Settings Tab - Multicast
Basic Settings Tab – Multicast The 8039 SIP Video Intercom is able to act as a multicast Slave, allowing it to multicast messages from a Master device (e.g. 8180, 8186, 8188, 8301) over the intercom speaker. Please note, the 8039 is not meant for voice paging in large areas. -
Page 29: Advanced Settings Tab - Network
DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8039 SIP Video Intercom on the network. Alternatively the 8039 can be set to a static IP address. -
Page 30: Vlan Id
Provides quality of service if the DSCP protocol is supported on your network. Can be specified independently for SIP control packets versus RTP audio packets. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 31: Advanced Settings Tab - Admin
Advanced Settings Tab – Admin Password Password to log into the 8039 SIP Video Intercom web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will... -
Page 32: Web Interface Session Timeout
Log Level Use on the advice of Algo technical support only. Log Method Allows the 8039 SIP Video Intercom to write to external Syslog server if the option for external (or both) is selected. Log Server If “Network” or “Both” is selected this is the address of the Syslog server on the network. -
Page 33: Advanced Settings Tab - Time
Note: This time value will be lost at power down, or overwritten if NTP is currently active. Time and date are used only for logging purposes and are not typically required. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 34: Advanced Settings Tab - Provisioning
“Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, or HTTP. For example, 8039 SIP Video Intercom configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from. -
Page 35: Md5 Checksum
8. File algop8039.conf can now be uploaded onto the Provisioning server If using a generic configuration file, extensions and credentials have to be entered manually once the 8039 SIP Video Intercom has automatically downloaded the configuration file. Document 90-00075A Algo Communication Products Ltd... -
Page 36: Generating A Specific Configuration File
SIP Video Intercom with the MAC address specified in the configuration file name. Since all the necessary settings can be included in this file, the 8039 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8039 SIP Video Intercom can be found on the back label of the unit. -
Page 37: Advanced Settings Tab - Tones
Advanced Settings Tab – Tones Uploading custom Ring Tones (WAV Files) Custom WAV files may be uploaded into memory to play on the 8039 speaker. An option is provided to normalize the uploaded file using “Auto Sound Level” and/or using “Compression (u-law)”. -
Page 38: Advanced Settings Tab - Advanced Audio
The jitter buffer removes the jitter in arriving network packets by temporarily storing them. This process corrects the inconsistent delays on the network. It is recommended to use the lowest value. Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 39: Advanced Settings Tab - Advanced Sip
Intercom will re-register with the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. Keep-alive Method If Double CRLF is selected the 8039 SIP Video Intercom will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT. -
Page 40: Server Redundancy Feature
Backup Server #1 If primary server is unreachable the 8039 SIP Video Intercom will attempt to register with the backup servers. If enabled, the 8039 SIP Video Intercom will always attempt to register with the highest priority server. Backup Server #2 If backup server #1 is unreachable the 8039 SIP Video Intercom will attempt to register with the 2nd backup server. -
Page 41: Advanced Settings Tab - Advanced Multicast
Multicast Audio Sync When paging to the 8039 SIP Video Intercom as well as other third party devices, the low latency of the 8039 may cause the audio to lead other devices. By adding audio delay up to one second, the 8039 may be synchronized with other endpoints or telephones that have greater latency. -
Page 42: Page Tone And Page Volume
Page Tone and Page Volume When an Algo device is the multicast Master, a page tone will play on the Slave device, so it is recommended to set the Slave tone to “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the Slave device allowing for a page tone to be played prior to page audio starting. -
Page 43: System Tab - Maintenance
Save the device settings to a text file for backup or to setup a provisioning configuration file. Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8039 SIP Video Intercom device settings to factory default values. Reboot the Device Reboots the device. Document 90-00075A... -
Page 44: Method
(refer to top right of Control Panel). System – System Log System log files are automatically created and assist with troubleshooting in the event the 8039 SIP Video Intercom does not behave as expected. Document 90-00075A Algo Communication Products Ltd... -
Page 45: Specifications
Speech Processing: Background noise reduction. Memory: 1 GByte audio storage. Door Control: Optional Algo 8061 IP Relay Controller or internal relay NO or NC rated 30V 1A. Dual EOL resistor terminations available on request. Configuration: Web interface (HTTP or HTTPS) or autoprovisioning server. - Page 46 Compliance: EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada). Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 46...
-
Page 47: 8061 Ip Relay Controller
The 8039 can provide door control functionality when used with the optional Algo 8061 IP Relay Controller. The 8061 serves as a bridge between the 8039 and peripheral hardware such as door strike. As a door opening controller, the 8061 can be located in a secure environment to prevent tampering of the public-facing intercom. -
Page 48: Configuring The 8061
8061. For more wiring information please visit: www.algosolutions.com/doorstrike. Configuring the 8061 1. Find the IP address of the Algo 8061 using the Algo locator tool available from the Algo website www.algosolutions.com/locator). This tool displays all of the Algo devices available on the network, and their corresponding IP addresses. -
Page 49: Fcc Compliance Statement
Document 90-00075A Algo Communication Products Ltd (604) 454-3792 2016-09-29 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
