Instruction Manual
2 Port USB HDMI KVM Switch with Audio
and USB 2.0 Hub
SV231HDMIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/01/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV231HDMIUA
Summary of Contents for StarTech.com SV231HDMIUA

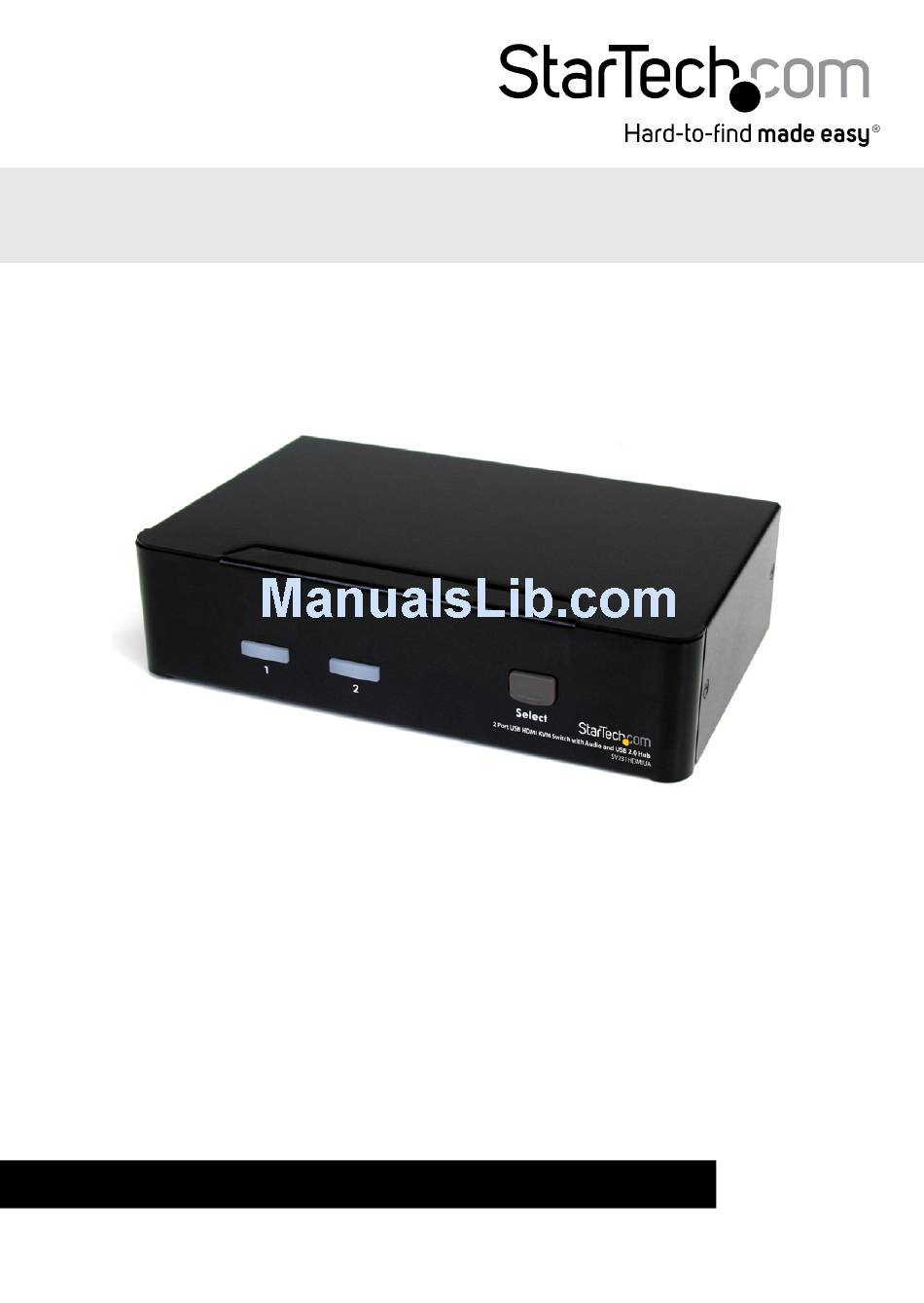

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/01/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Front View....................2 Rear View ....................2 Hardware Installation ..........................3 Driver Installation ............................4 Operation ....................4 Front Panel ..............................4 HotKey Control ............................5 Alternative Hotkey Commands ......................7 Change Leading Hotkey ......................... -
Page 4: Introduction

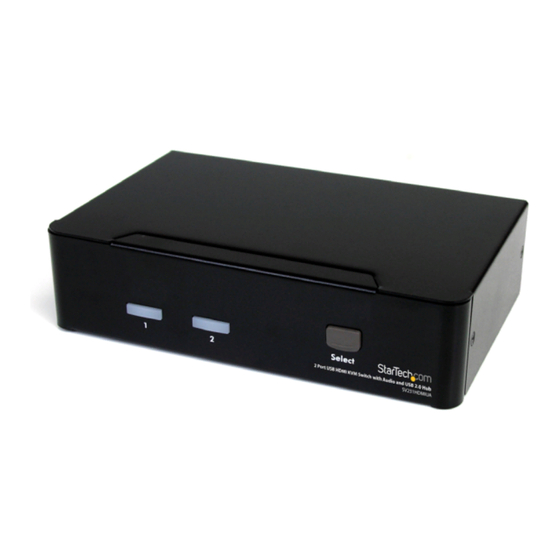

Introduction The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone). A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices,... -
Page 5: Installation
Installation NOTE: Prior to the installation, please power off all devices that will be connected to this system. Ensure that all devices you will connect are properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. -
Page 6: Hardware Installation
Hardware Installation *Console setup 1. Plug a monitor/display into the Console HDMI connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. 2. Use a male-to-male HDMI video cable to connect the HDMI connector on the computer’s/devices’... -
Page 7: Driver Installation
Driver Installation No driver installation is required for the KVM switch, as the keyboard and mouse use generic USB keyboard/mouse drivers that are already installed on any operating system that fully supports USB. Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. -
Page 8: Hotkey Control
HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A built-in tone generator creates a high-pitch beep for correct hotkey command;... - Page 9 Manual Scan allows users to manually switch back and forth between powered-on computers. Left <CTRL> + Left <CTRL> + <F2> To select the previous or the next computer, press <UP> or <DOWN> arrow keys. To abort the Manual Scan, press any other key. Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds.
-
Page 10: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>... -
Page 11: Change Leading Hotkey
Change Leading Hotkey The default leading hotkey sequence involves pressing the left <CTRL> twice in succession (e.g. left <CTRL> + left <CTRL>). This can be changed to the right <CTRL> key instead, to avoid accidental activation due to using the left <CTRL> key for functions such as Copy/Paste. -
Page 12: Specifications
Specifications Number of Ports 1 x HDMI Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 1 x HDMI Console Connectors 4 x USB type A 2 x 3.5mm mini-jack Maximum Video Resolution 1920x1200 DDC2B Support Audio Support On Screen Display Cascadable... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
