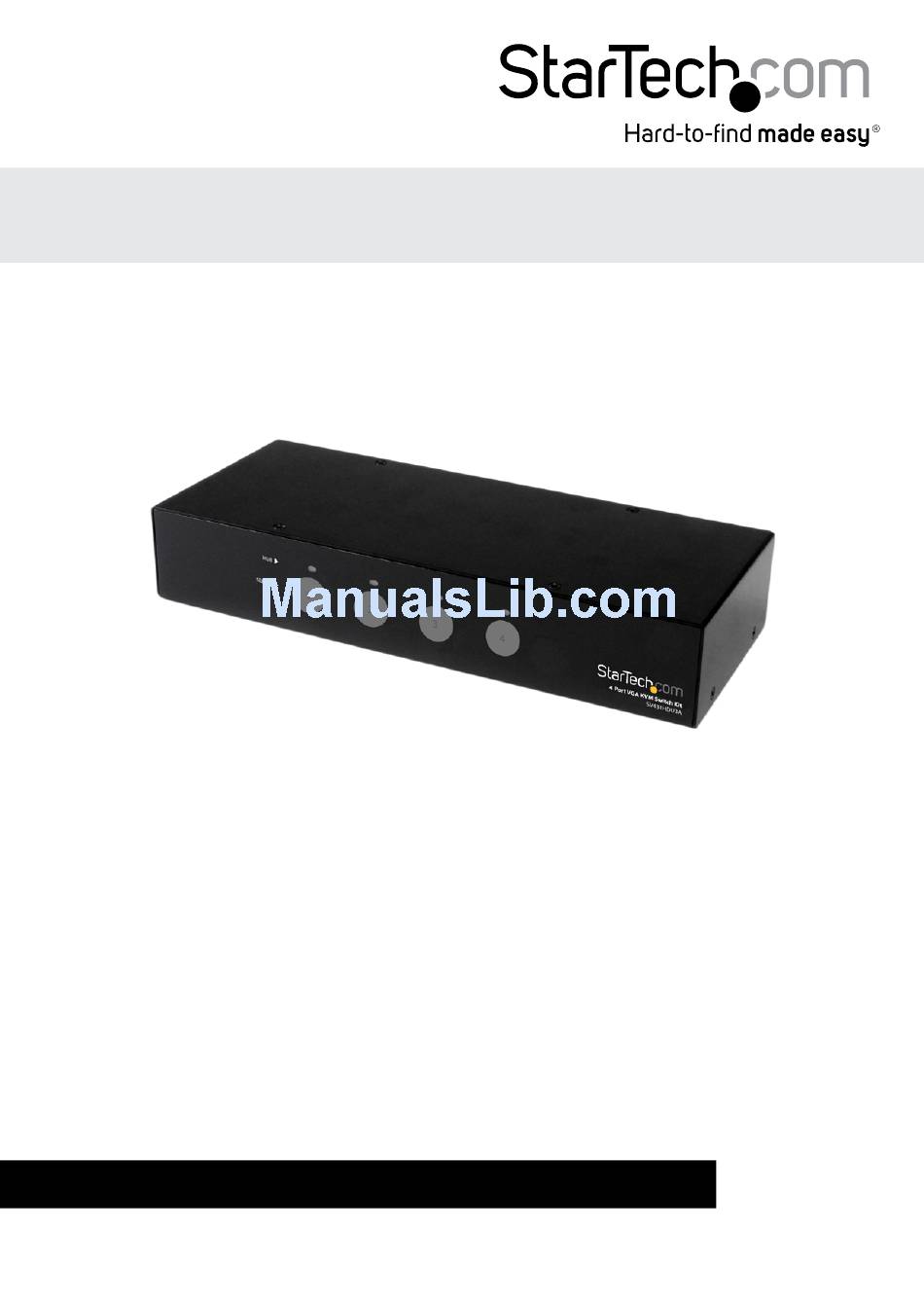

2/4 Port SuperSpeed USB 3.0 HDMI® KVM
Switch with Audio and Cables
SV231HDU3A / SV431HDU3A
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/31/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV431HDU3A
Summary of Contents for StarTech.com SV431HDU3A
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/31/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View - SV231HDU3A ........................1 Rear View ..............................1 Front View - SV431HDU3A ........................2 Rear View ..............................2 Introduction ....................3 Packaging Contents ..........................3 System Requirements ..........................3 Installation ....................4 Hardware Installation ..........................4 Driver Installation ............................ -
Page 4: Product Diagram
Product Diagram Front View - SV231HDU3A USB Hub Selection LED Port Selection Button / LED Rear View Console HDMI Connector (output) USB Keyboard/ Mouse connectors Connectors DC Power USB 3.0 HUB 3.5mm Audio Connector connectors Speaker/Mic Instruction Manual... -
Page 5: Front View - Sv431Hdu3A
Front View - SV431HDU3A USB Hub Selection LED Port Selection Button / LED Rear View USB Keyboard/ Console HDMI Mouse connectors Connector (output) Connectors USB 3.0 HUB 3.5mm Audio DC Power Connector connectors Speaker/Mic Instruction Manual... -
Page 6: Introduction
• 2 x 3.5mm Audio/Mic Cables • 1 x Universal Power Adapter (NA/ UK/ EU) • 1 x Instruction Manual SV431HDU3A • 1 x 4 Port USB 3.0 KVM Switch • 4 x HDMI M/M Cables • 4 x USB 3.0 A-B Cables •... -
Page 7: Installation
Installation Hardware Installation 1. Connect an HDMI monitor into the Console’s HDMI connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. If using audio, also connect speakers with 3.5mm mini-jack plugs. 2. -
Page 8: Operation
Operation Front Panel The front-panel Smart Touch button allows you a direct control over KVM switching operation. Simply press the button to switch to the respective PC port. For more operation about Smart Touch button, please refer to “Quick Reference Sheet”. Hotkey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. - Page 9 Quick Reference Sheet Front-Panel Command Hotkeys Smart Touch Description Button Select Audio&Mic Port (Jointly select PC port ScrLk + ScrLk + Move audio&mic and audio&mic, F5~F6/F5~F8 port if binding is enabled) Bind PC and Bind PC Port with Audio&Mic ScrLk + ScrLk + Q audio&mic Port Switching Unbind PC and...
- Page 10 Quick Reference Sheet Front-Panel Command Hotkeys Smart Touch Description Button Previous active PC ScrLk + ScrLk + Previous active port [Backspace] PC Port Toggle Beeper Beeper ScrLk + ScrLk + B On/Off Press and hold down last button (Button 2/ Select Hotkey ScrLk + ScrLk + Define Hotkey...
-
Page 11: Specifications
Specifications SV231HDU3A SV431HDU3A 1 x HDMI (19 pin) Female Console Connectors 2 x USB A (4 pin) Female 2 x 3.5mm Mini-Jack (3 Position) Female 1 x HDMI (19 pin) Female Computer Connectors 1 x USB 3.0 B (9pin; SuperSpeed) Female (per port) 2 x 3.5mm Mini-Jack (3 Position) Female... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
