2 Port Professional USB KVM Switch Kit with Cables

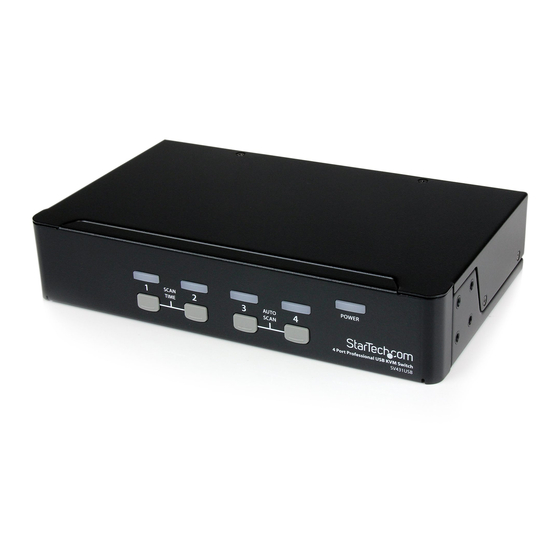

4 Port Professional USB KVM Switch
SV231USB
SV431USB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/17/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com SV231USB
Summary of Contents for StarTech.com SV231USB
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/17/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features ................................1 Before You Begin ..............................1 Package Contents .............................1 System Requirements ..........................1 Accessory Products from StarTech.com ....................2 Installation................................3 PC BIOS Notice ............................3 Console Connection ..........................3 Computer Connection ..........................4 Operation ................................5 Front Panel ..............................5 Auto Scan ...............................5 Rackmount Kit for SV431USB (optional) ....................6... -
Page 4: Introduction
USB 2.0 KVM (Keyboard/Video/Mouse) switches and USB 2.0 peripherals sharing devices. With the SV231USB and SV431USB, you can easily operate up to 2 or 4 PCs, G3/G4 Macs, or iMacs respectively from the 1 USB keyboard, 1 USB mouse, and 1 monitor saving you space, time, equipment and money. -
Page 5: Accessory Products From Startech.com
• HDB-15 to DB-15 VGA adapter is required for Mac computer VGA ports Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. -
Page 6: Installation
For SV431USB only: As an option, the Master StarView is either SV431 or SV431D to be linked to the SV431USB with a mini-DIN8 male-to-male cable. The SV431USB can operate as USB 2.0 peripheral sharing devices SV231USB 1. USB Keyboard 2. USB Mouse 3. -
Page 7: Computer Connection
Computer Connection Use a HDB15 male-to-female cable to connect from a computer’s VGA port to the StarView’s VGA port of the PC side, as shown below. Use a USB 2.0 A-B cable to connect from the StarView’s USB 2.0 port on the corresponding computer (A connector is the flat connector) as shown below. -
Page 8: Operation
Auto Scan automically scans through computers one by one in a fixed interval (see Scan Time below). Note: Keyboard or mouse is not operable during Auto Scan. • For SV231USB It sets the scan interval for Auto Scan. The Scan Time options are 3, 8, 15 and 30 seconds. -
Page 9: Rackmount Kit For Sv431Usb (Optional)
Rack Mount Kit for SV431USB (optional) The figure below shows how to attach optional mounting brackets and cable support to the SV431USB for standard 19-inch rack cabinet. To the Rack Cabinet back post Keyboard, Mouse, Monitor cables to the StarView KVM Switch To the Rack Cabinet Two screws secure the back post... -
Page 10: Specifications
Specifications SV431USB SV231USB # of Computers Supported Front Panel Push Button Hot Plug & Play Auto Scan Interval 3, 8, 15, 30 seconds 30m (100ft) for VGA Cabel Length (Max) 5m (15ft) for USB Compter Online LED Computer Selected LED... -
Page 11: Troubleshooting
Troubleshooting Symptom Causes Solutions Press any front button to select In Auto Scan, keyboard and a computer, then use the Keyboard or mouse moust are not operable. keyboard and mouse. Remove does not work Too many keyboard or all unnnecessary keyboard and mouse drivers installed mouse drivers Re-install device driver. -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
