2-Port USB 3.0 KVM Switch - HDMI - 4K 60Hz
2-Port USB 3.0 KVM Switch - Dual HDMI - 4K 60Hz
SV231HU34K6
SV231DHU34K6
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/29/2022

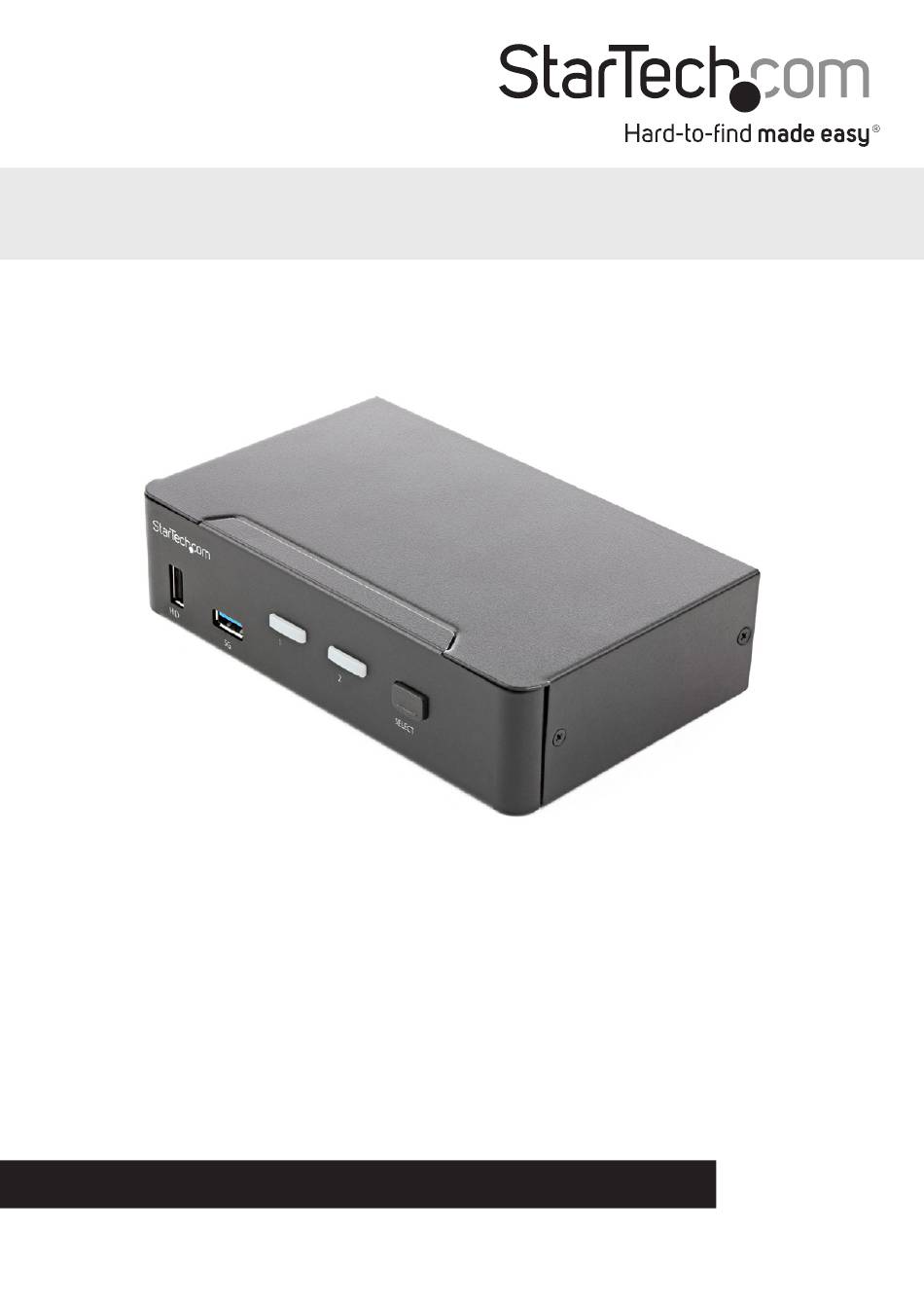

*actual product may vary from photos
*SV231HU34K6 shown above
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231HU34K6
Summary of Contents for StarTech.com SV231HU34K6
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/29/2022...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Product Overview ..................1 Front View (SV231HU34K6) ........................1 Rear View ..............................1 Front View (SV231DHU34K6) ........................ 2 Rear View ..............................2 LED Indicators............................. 3 Installation ..............................3 Attach The Rubber Feet ..........................3 Connect the Console ...........................3... -
Page 4: Introduction

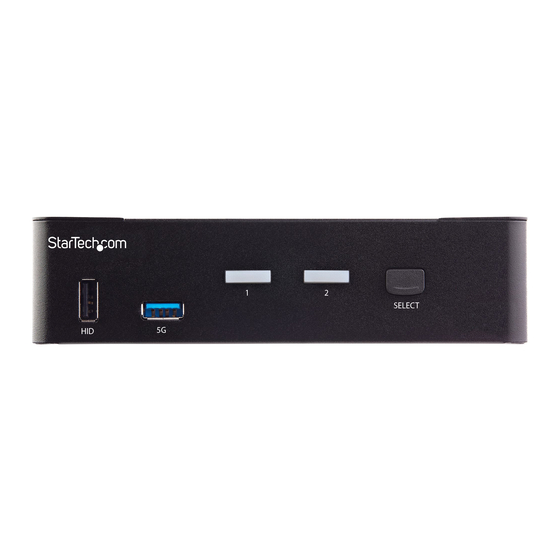

• KVM Switch x 1 • Universal Power Adapter (NA/JP, EU, UK, ANZ) x 1 • Rubber Feet x 4 • Quick-Start Guide x 1 Product Overview Front View (SV231HU34K6) USB HID Port Port Selection Port Selection USB Hub Port... -
Page 5: Front View (Sv231Dhu34K6)
Front View (SV231DHU34K6) USB HID Port Port Selection Port Selection USB Hub Port Button LED Indicators Rear View Firmware HDCP Upgrade Port Switch HDMI Console EDID PC2 HDMI PC1 HDMI Button Output Port Input Port Input Port USB Hub Port USB HID Ports Power Input USB Port... -
Page 6: Led Indicators
1. Power off the HDMI Display and any Peripherals before connecting to the KVM Switch. 2. Connect 1 (SV231HU34K6) or 2 (SV231DHU34K6) HDMI Display(s) to the Console HDMI Output Port(s), located on the rear of the KVM Switch. 3. Connect a USB Keyboard and a USB Mouse to the Console USB HID Ports, located on the rear of the KVM Switch. -
Page 7: Operation
4. (Optional) Connect a 3.5 mm Audio Cable from the Audio Port on the Computer to the corresponding PC 1 Audio Port on the rear of the KVM Switch. 5. Repeat Steps 1 to 4 for PC 2. Operation HDCP Switch Note: If the HDCP version needs to be changed after the initial installation, a power cycle of the KVM and connected devices may be required. -
Page 8: Edid Button
Note: When you switch between ports, it takes some time for the video signal to be communicated. After you select a port, wait three to four seconds before you select a different port. Hot Keys Commands To view detailed instructions on the use of Hot Key Commands, please visit: www.StarTech.com/SV231HU34K6 www.StarTech.com/SV231DHU34K6 Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new —...
