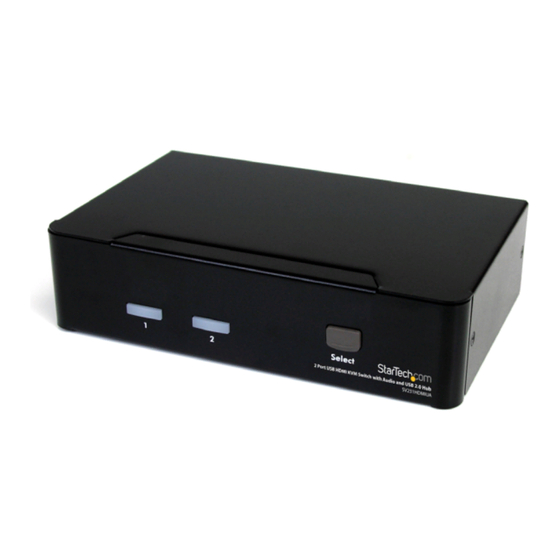

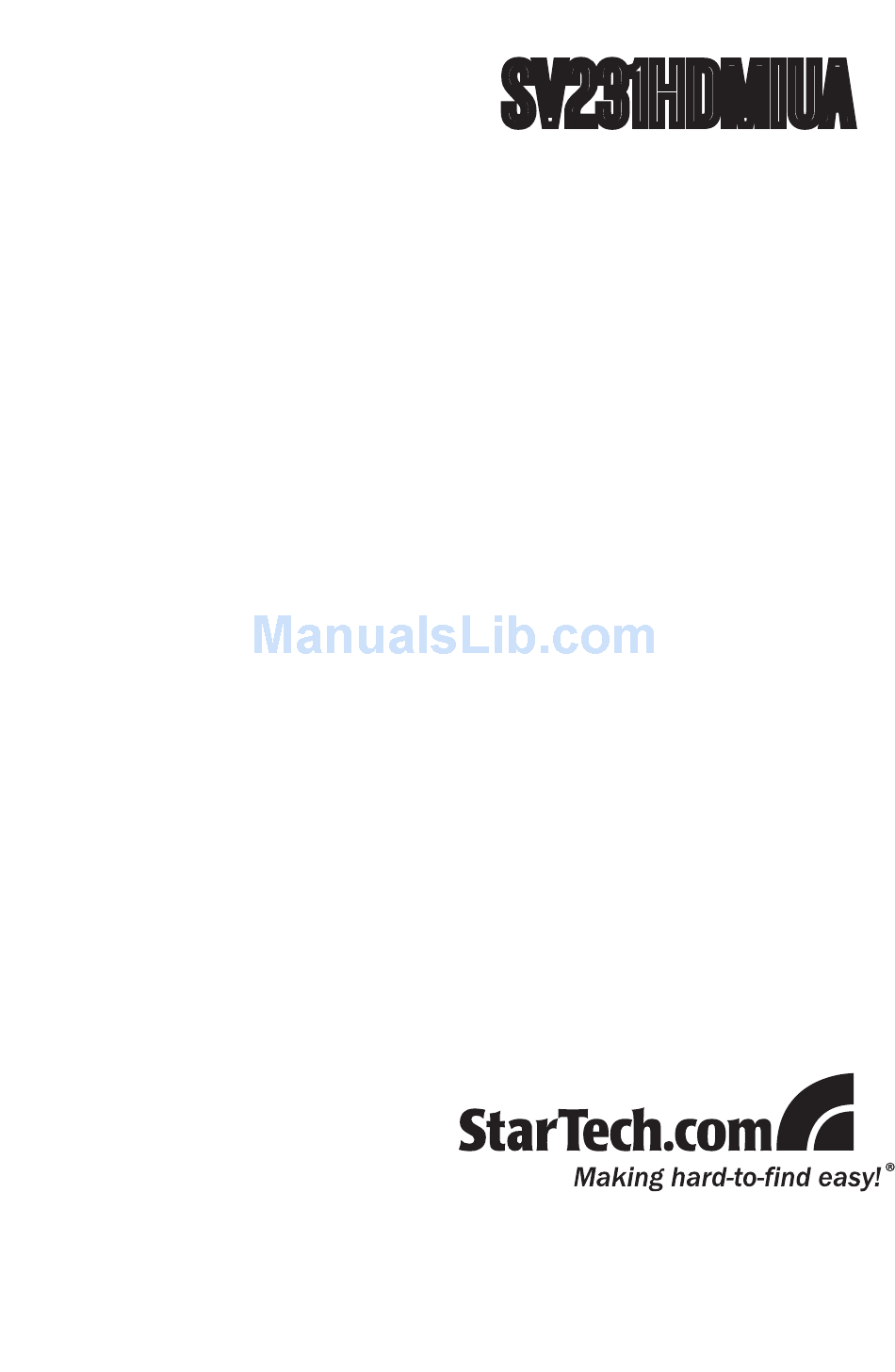

- Page 1 SV231HDMIUA Instruction Manual HDMI KVM Switch 2-Port USB HDMI KVM Switch with Audio and USB 2.0 Hub...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Front View ..................2 Rear View ..................2 Hardware Installation ..............3 Driver Installation .................4 Operation ................. 4 Front Panel ..................4 HotKey Control ................5 Alternative Hotkey Commands ............7 Specifications ..............9 Technical Support ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x SV231HDMIUA switch • 1 x Power Adapter • 1 x Set of rubber feet • 1 x Instruction Manual System Requirements • HDMI and USB enabled systems • HDMI enabled display device • Standard 104-key wired USB keyboard •... -
Page 5: Front View
Front View Port Link/Selection Port Selection button Rear View Console HDMI port PC2 port PC1 port Power connector USB Hub 3.5mm Speaker/MIC ports connectors USB keyboard and mouse ports... -
Page 6: Hardware Installation
Hardware Installation *Console setup Plug a monitor/display into the Console HDMI connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. Use a male-to-male HDMI video cable to connect the HDMI connector on the computer’s/devices’... -
Page 7: Driver Installation
Power up the first computer/device and wait for it to fully boot and test keyboard/mouse functionality. Once operation has been successfully confirmed, switch to the next port and power up that computer/device and confirm. Once completed for all computers/devices connected to the KVM switch, you should be able to switch between any ports freely. -
Page 8: Hotkey Control
HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes ( successively within 0.2 seconds ) followed by one or two more keystrokes. A built-in buzzer generates a high-pitch beep for correct hotkey command;... -
Page 9: Audio Stick
in sequence. The length of the Auto Scan interval (Scan Rate) is adjustable, see below. Manual Scan allows users to manually switch back and forth between power-on computers. Left <CTRL> + Left <CTRL> + F2 To select the previous or the next computer, press <UP> or <DOWN> arrow keys. -
Page 10: Alternative Hotkey Commands
USB-Port Rule There are two settings for USB-Port Rule: ON or OFF. When set to ‘ON’, the USB Hub port follows computer selection. When set to ‘OFF’, the USB Hub port stays on the currently selected PC port. USB 1: pressing the hotkey below to turn ON/OFF the USB-Port Rule: Left <CTRL>... - Page 11 For those keyboards that do not have or support <ScrollLock>, please press and HOLD the Left <SHIFT> and press <NumLock> twice instead of pressing Left <CTRL> twice. To select a computer: Hold Left <SHIFT> + Press <NumLock> + Press <NumLock> then release <SHIFT>...
-
Page 12: Specifications
Specifications Number of Ports 1 x HDMI Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 1 x HDMI Console Connectors 4 x USB type A 2 x 3.5mm mini-jack Maximum Video Resolution 1920x1200 DDC2B Support Audio Support On Screen Display Cascadable... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
