User Manual
2 Port Professional PS/2 KVM Switch
SV231
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/12/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231
Summary of Contents for StarTech.com SV231
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/12/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Front View ..............................2 Rear View ..............................3 Hardware Installation ..........................4 Driver Installation ............................4 Configuration ..................5 Serial Data Link ............................5 Automatic Calibration Button and Light ..................5 Manual Calibration and Settings Menu .................... -
Page 4: Introduction

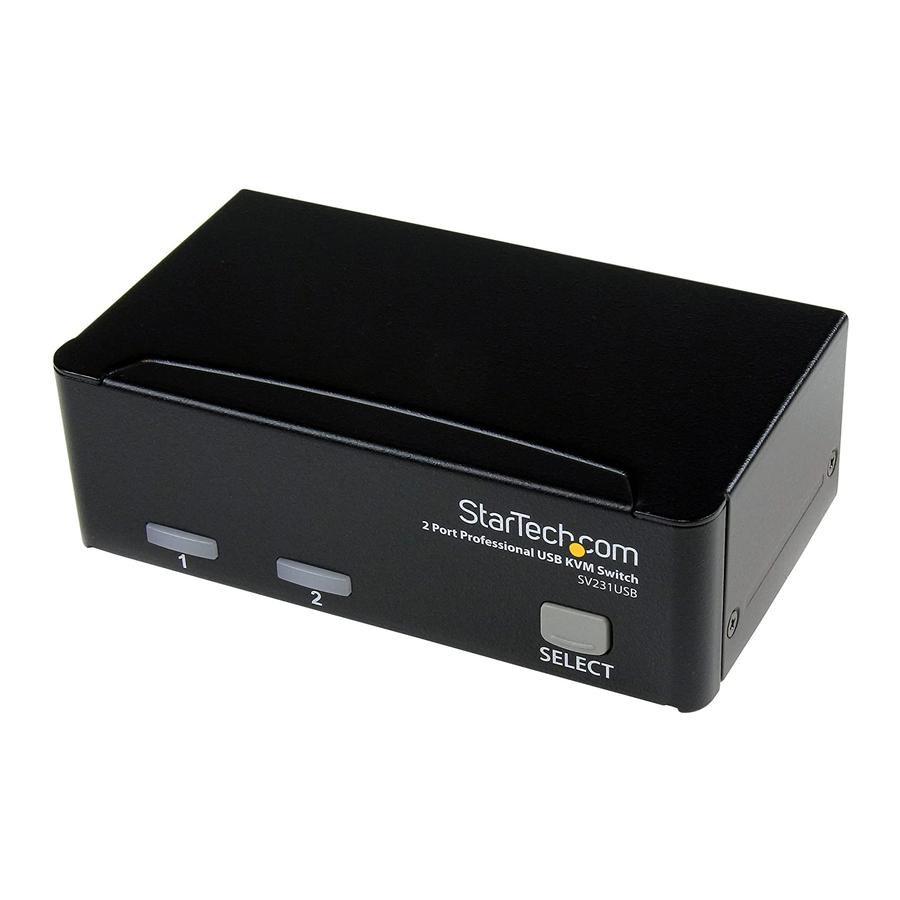

Introduction Overview The StarView SV231 is a computer switch that allows access to two IBM compatible computers from one keyboard, mouse and monitor. Switching between computers is as easy as pressing the push button or entering hot-key commands from your keyboard. -
Page 5: Installation
Installation Device Connection Turn your computers off. Connect a PS/2 keyboard to the mini-DIN-6 port with a KEYBOARD icon and a PS/2 mouse to the mini-DIN-6 port MOUSE icon . Then connect your VGA monitor cable directly to the HD-DB- 15 port of CONSOLE as shown in figure The monitor connected to the HD-DB-15 VGA port of the CONSOLE must be capable of synchronizing with the computer’s video signal. - Page 6 (Note: use only the mouse adapter supplied with the SV231) NOTE: 1. The StarTech.com SV231’s automatic mouse conversion system allows you to connect computers using serial mice. 2. The mouse adapter can only be used on the PC side and will not work on the CONSOLE side.
-
Page 7: Commands
• To adjust Scan Rate which sets the duration before switching to the next computer in AUto Scan: left Ctrl + left Ctrl + F3. The SV231 generates 1 to 4 beeps indicating scan interval of 3, 8, 15, and 30 seconds respectively. -
Page 8: Specifications
Appendices Specifications SV231 No. of computers supported Cascade control PC number Up to 4* Front panel button control Hot plug-and-play Hot-key control Automatic scan interval 3, 8, 15, 30 seconds 30M(100ft) at CONSOLE 30M(100ft) at Cable Length (Max) 1600 x 1200, DDC2B... - Page 9 StarView. Symptom Causes Solutions Press and hold down the push button for 3 Improper power-up seconds, the SV231 will Keyboard or mouse does sequence. Keyboard re-initialize the keyboard not work or mouse not properly or mouse, wait for a few intialized.
- Page 10 Symptom Causes Solutions In master/slave configuration, the master SV231 can be a slave of unit must have equal or SV231, SV431, SV831, Not functional in cascade more PC ports than that and SV1631. If SV231 is a configuration of slaves. If SV231 is a...
-
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
