Instruction Manual
Dual DVI USB KVM Switch
SV231DD2DUA
SV431DD2DUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/29/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DD2DUA
Summary of Contents for StarTech.com SV231DD2DUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/29/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................1 Hardware Installation ..........................2 Driver Installation ............................4 Operation ................................4 Front Panel ..............................4 Rear Panel (SV431DD2DUA only) ....................5 HotKey Control ............................6 Alternative HotKey Commands .......................8 Change Leading HotKey........................8 Specifications ..............................9 Technical Support ............................10 Warranty Information ............................10 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1 x SV231DD2DUA or SV431DD2DUA KVM switch • 1 x Power Adapter • 1 x Instruction Manual System Requirements • DVI enabled computer system/video card • USB enabled computer system • DVI enabled display devices (e.g. monitor, projector, TV, etc.) • A standard 104-key wired USB keyboard... -
Page 5: Hardware Installation

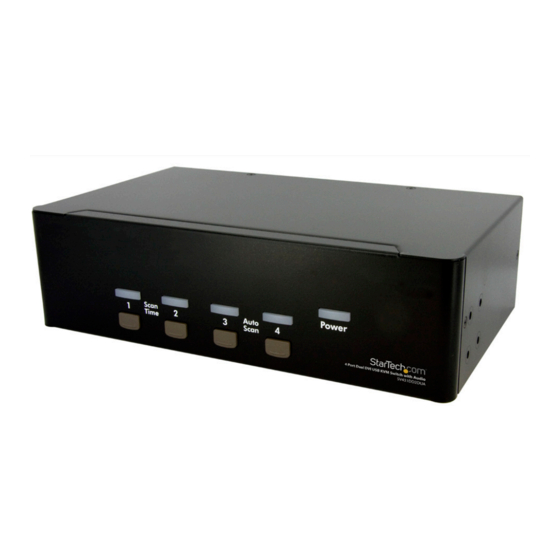

Front View (SV431DD2DUA shown) Port Selection/Link LED Power LED Port Selection button Rear View (SV431DD2DUA shown) Console DVI connector (output) connectors FUNC button DC Power connector USB Hub connectors 3.5 mm Audio Speaker/MIC USB keyboard/ mouse connectors Instruction Manual... - Page 6 KVM’s PC ports (ie. PC1). A dedicated DVI, USB and audio 4-in-1 KVM cable can be used (ie. StarTech.com ID: USBDVI4N1A6). 3. Use a USB type A-B Cable to connect the KVM’s USB port (type B, square connector) for the PC port used in Step 2, and the USB port on the computer (type A, flat connector).
-
Page 7: Driver Installation
Driver Installation No driver installation is required for the KVM switch, as the keyboard and mouse uses native USB keyboard/mouse drivers that are already installed on all operating systems that fully support USB. Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. -
Page 8: Rear Panel (Sv431Dd2Dua Only)
Rear Panel (SV431DD2DUA only) To adjust the video signal strength/equalization settings for the length or quality of DVI cable being used, the “FUNC” button combined with the front panel push buttons can be used. 1. Press “FUNC” button three times, and the LED for “POWER” will start to flash once per second. -
Page 9: Hotkey Control
HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A high-pitch beep will be generated for each correct hotkey command;... - Page 10 When set to ‘OFF’ , the USB Hub port stays on the currently selected PC port. SV231DD2DUA: press the hotkey below to turn ON/OFF the USB-Port Rule for USB 1 and USB 2: Left <CTRL> + Left <CTRL> + <F7>...
-
Page 11: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>... -
Page 12: Specifications
Specifications SV231DD2DUA SV431DD2DUA Number of Ports 2 x DVI-I female Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 2 x DVI-I female Console Connectors 4 x USB type A 2 x 3.5mm mini-jack Maximum Video Resolution... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
