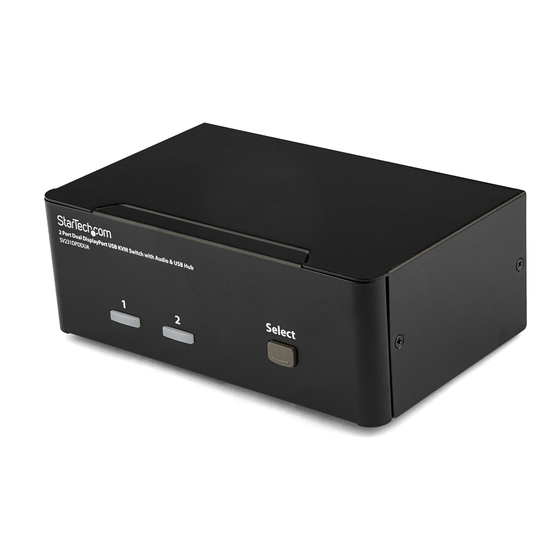

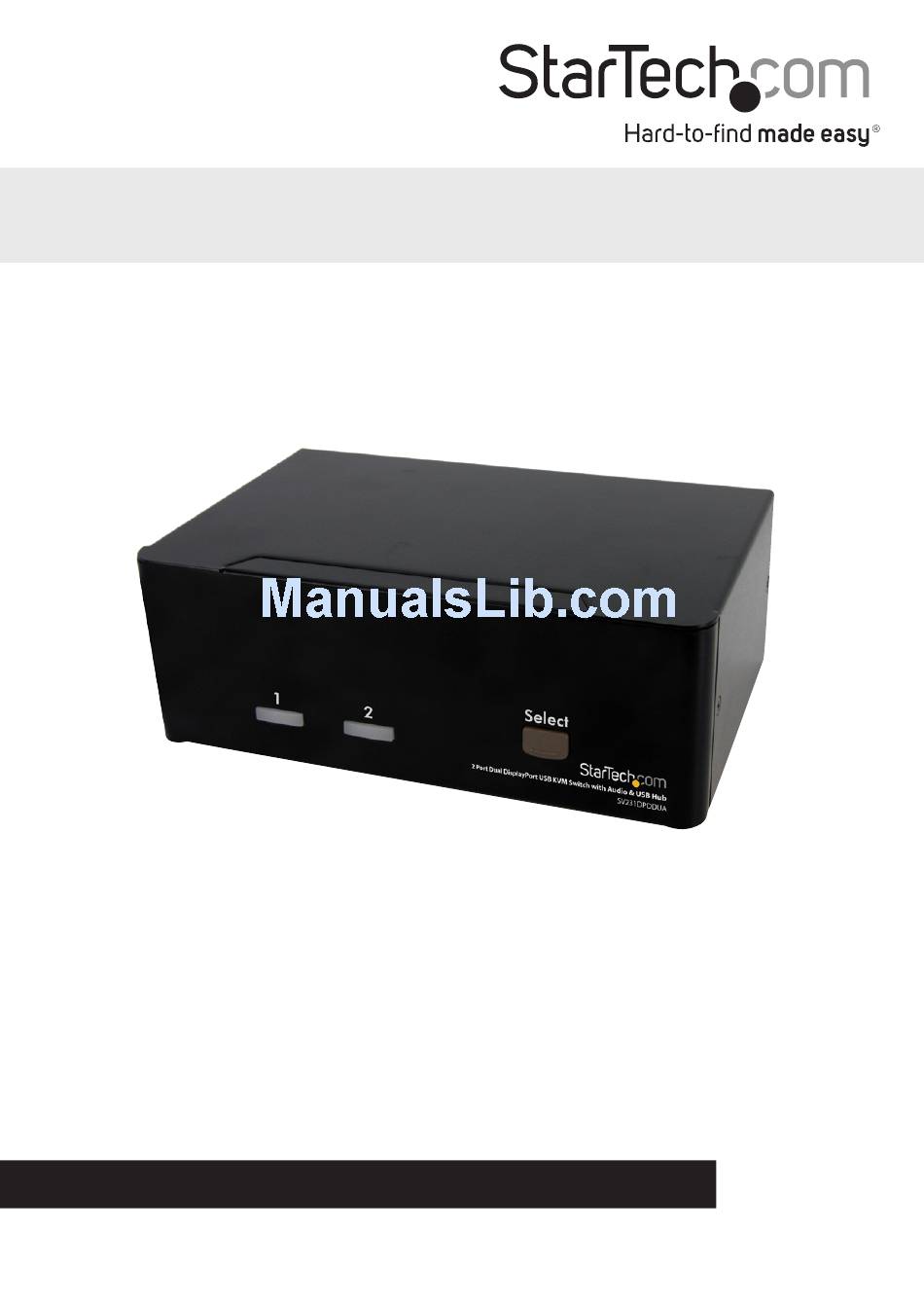

2 Port Dual DisplayPort USB KVM Switch
with Audio & USB Hub
SV231DPDDUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/11/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DPDDUA
Summary of Contents for StarTech.com SV231DPDDUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/11/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Operation ....................5 Front Panel ..............................5 HotKey Control ............................5 Alternative Hotkey Commands ...................... -
Page 4: Introduction
Introduction The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter. -
Page 5: Front View
Front View Port Selection/Link Port Selection Button Rear View Instruction Manual... -
Page 6: Installation
Installation NOTE: Prior to the installation, please power off all devices that will be connected to this system. Ensure that all devices you will connect are properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. -
Page 7: Driver Installation
NOTE: A DisplayPort + USB KVM combo cable is also available which can be used in place of separate individual cables, StarTech.com ID: DP4N1USB6. 4. Repeat Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. -
Page 8: Operation
Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. Port Selection Button Each push of the Selection Button on the front of the KVM switch will immediately switch between the two ports on the KVM switch. - Page 9 Auto Scan The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below). Note: The keyboard and mouse are not operable during Auto Scan. To start Auto Scan: Left <CTRL> + Left <CTRL> + <F1> To abort the Auto Scan mode, press the left <CTRL>...
- Page 10 Audio Lock There are two options for Audio Lock: ON and OFF. When ON, audio selection follows computer selection. When OFF, audio selection stops following computer selection. It is useful if you want to listen to a particular computer’s audio signal while operating other computers.
-
Page 11: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>... -
Page 12: Change Leading Hotkey
Change Leading Hotkey The default leading hotkey sequence involves pressing the left <CTRL> twice in succession (e.g. left <CTRL> + left <CTRL>). This can be changed to the right <CTRL> key instead, to avoid accidental activation due to using the left <CTRL> key for functions such as Copy/Paste. -
Page 13: Specifications
Specifications Number of Ports 2 x DisplayPort Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 2 x DisplayPort Console Connectors 4 x USB type A 2 x 3.5mm mini-jack 2560x1600@60Hz Maximum Video Resolution (higher resolutions may be supported at lower refresh rates) DDC2B Support Audio... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
