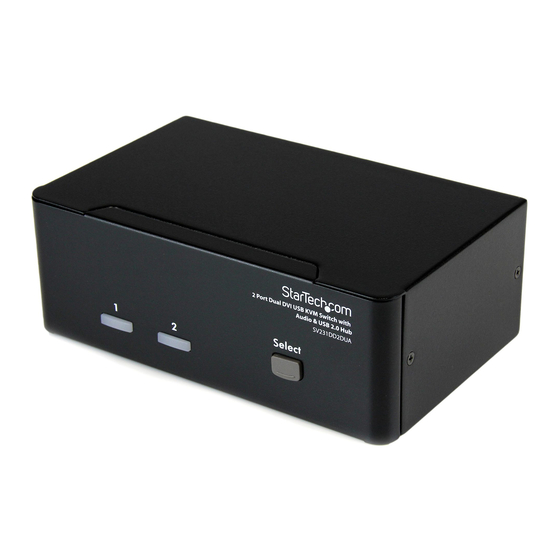

StarTech.com SV231DD2DUA Instruction Manual
Dual dvi usb kvm switch 2/4-port dual dvi, usb kvm switch with audio and usb 2.0 hub
Hide thumbs
Also See for SV231DD2DUA:
- Instruction manual (14 pages) ,
- Instruction manual (15 pages) ,
- Manual (14 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DD2DUA
Summary of Contents for StarTech.com SV231DD2DUA
- Page 1 SV231DD2DUA SV431DD2DUA Instruction Manual Dual DVI USB KVM Switch 2/4-Port Dual DVI, USB KVM Switch with Audio and USB 2.0 Hub...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............2 Driver Installation .................4 Operation ................. 4 Front Panel ..................4 Rear Panel (SV431DD2DUA only) ..........5 HotKey Control ................6 Alternative Hotkey Commands ............8 Specifications ..............9 Technical Support ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x SV231DD2DUA or SV431DD2DUA KVM switch • 1 x Power Adapter • 1 x Instruction Manual System Requirements • A standard 104-key USB keyboard • A standard 3-button USB mouse • DVI capable computer video card and DVI capable monitor/display... -
Page 5: Hardware Installation
Hardware Installation Front View (SV431DD2DUA shown) Link/Selection Power LED Selection Button Rear View (SV431DD2DUA shown) connectors connectors to computer to computer DVI output to connectors connectors display/monitor to computer to computer FUNC button power input headphone/ USB hub mic ports mouse/ keyboard USB ports... - Page 6 KVM’s PC ports (ie. PC1). A dedicated DVI, USB and audio 4-in-1 KVM cable can be used (ie. StarTech.com ID: USBDVI4N1A6). Use a USB type A-B Cable to connect the KVM’s USB port (type B, square connector) for the PC port used in Step 2, and the USB port on the computer (type A, flat connector).
-
Page 7: Driver Installation
Driver Installation No driver installation is required for the KVM switch, as the keyboard and mouse uses native USB keyboard/mouse drivers that are already installed on all operating systems that fully support USB. Operation Front Panel PC Link/Selection LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. -
Page 8: Rear Panel (Sv431Dd2Dua Only)
Scan Time Four options are available for users to set the Scan Time duration, which includes 3, 8, 15 and 30 seconds. To change the Scan Time interval, press both front panel buttons “1” and “2” simultaneously. The unit beeps 1, 2, 3 or 4 times for Scan Time of 3, 8, 15 or 30 seconds respectively. -
Page 9: Hotkey Control
HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left Ctrl keystrokes ( successively within 0.2 seconds ) followed by one or two more keystrokes. A high-pitch beep will be generated for each correct hotkey command;... - Page 10 Manual Scan allows users to manually switch back and forth between power-on computers. Left Ctrl + Left Ctrl + F2 To select the previous or the next computer, press <UP> or <DOWN> arrow keys. To abort the Manual Scan, press any other key. Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds.
-
Page 11: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left Ctrl + Left Ctrl hotkeys, there are two alternative hotkey sequences available. For the following operations, users may press Scroll Lock twice instead of pressing Left Ctrl twice. To select a computer: Scroll Lock + Scroll Lock + 1 (Example: Select the computer at port 1.) Scroll Lock + Scroll Lock + 2... -
Page 12: Specifications
Specifications SV231DD2DUA SV431DD2DUA Number of Ports 2 x DVI-I female Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 2 x DVI-I female Console 4 x USB type A Connectors 2 x 3.5mm mini-jack Digital: 1920x1200@60Hz... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
