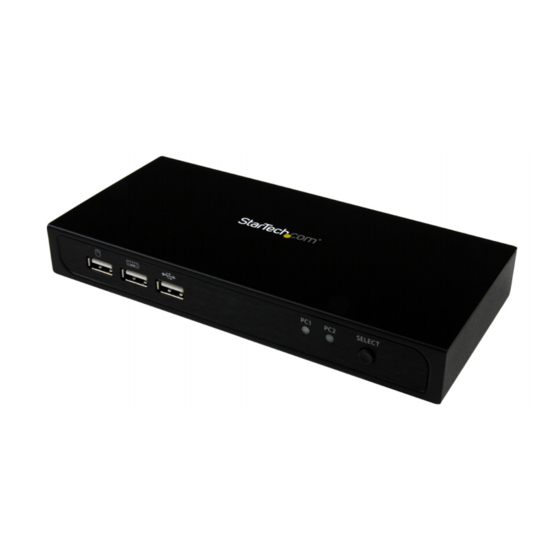

2 Port DisplayPort™ KVM Switch with USB 2.0
Hub Port and KVM Cables
SV231DPU2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/03/2017
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DPU2
Summary of Contents for StarTech.com SV231DPU2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/03/2017...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Software Installation ..........................4 Switch between computers ........................4 Operation ....................5 Switching Between Systems ......................... -
Page 4: Introduction
• DisplayPort display device (for example, monitor, projector, TV, etc.) • A DisplayPort output and available USB port per computer • USB keyboard and mouse • A video source and display that support up to 4K at 30Hz Note: The SV231DPU2 KVM switch supports DisplayPort 1.1 Instruction Manual... -
Page 5: Product Diagram
Product Diagram Front View USB Keyboard, PC Select Button Mouse and Hub ports Rear View Console Monitor PC / Server KVM Connection Connections Instruction Manual... -
Page 6: Installation
Installation Hardware Installation 1. Connect a DisplayPort monitor into the DP OUT connector on the back of the KVM switch. 2. Connect a USB keyboard and mouse into the front USB ports on the KVM switch. 3. Connect the included DisplayPort USB KVM cables to each PC, then to the PC1 & PC2 ports on the back of the KVM switch. -
Page 7: Software Installation
1. Open a web browser and navigate to startech.com/Downloads 2. Enter the SKU “SV231DPU2” and download the software. 3. Browse to the location that you saved the file and run the Setup.exe (Windows) / USB KVM.dmg (Mac OS) application. -
Page 8: Operation
Operation Switching Between Systems Switching between your connected systems can be done by:: - Pressing the SELECT button on the front of the KVM - Pressing the Scroll Lock hotkey twice (ScrLk + ScrLk) - Clicking the green taskbar icon (if software is installed) Instruction Manual... -
Page 9: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
