StarTech.com SV231HU34K6 Quick Start Manual

2-Port USB 3.0 KVM Switch - HDMI - 4K 60Hz

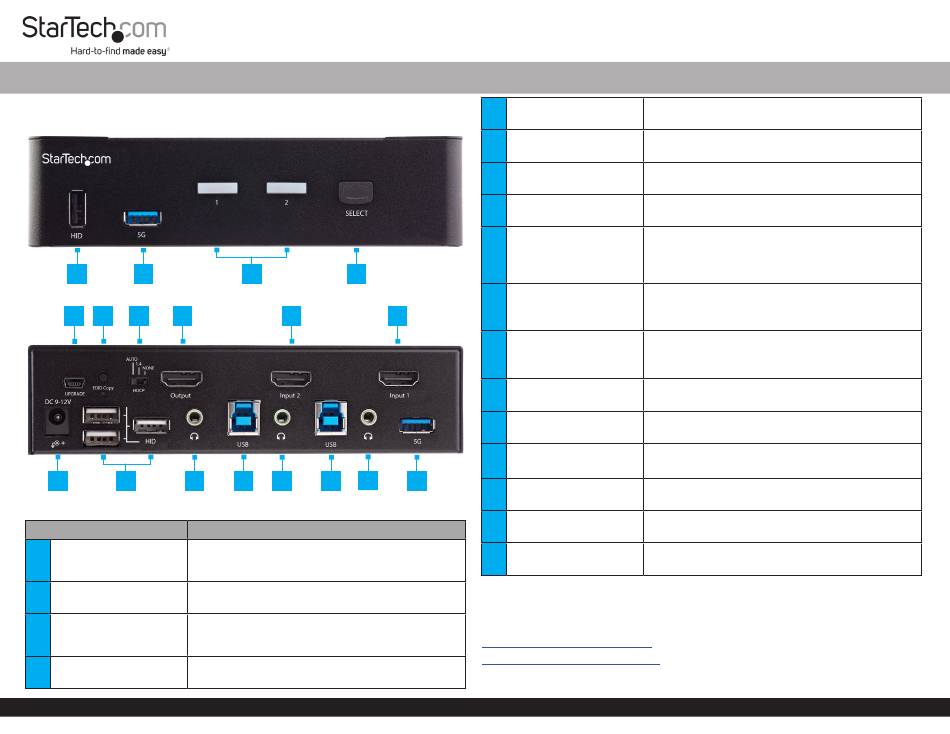

Product Diagram (SV231HU34K6/SV231DHU34K6)

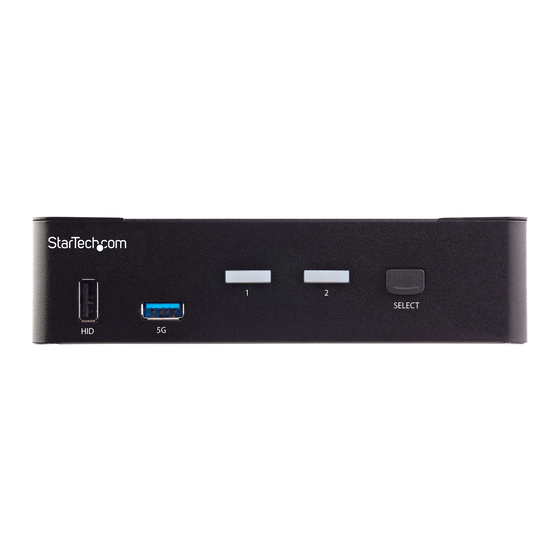

Front View
1 1
1 2
Rear View
5 6/7 8 9
12 1 13
Port
• Connect up to 4 USB Human Interface Devices
1 Console USB HID Ports (HID) (e.g. Keyboard, Mouse, Trackpad, Number
Keypad, Drawing Tablet)
• Connect up to 2 SuperSpeed USB 5Gbps (USB 3.2
2 Console USB Hub Ports
Gen 1) Peripheral Devices
• Green: PC 1 and/or PC 2 connected (power on)
Port Selection LED
3
Indicators • Red: PC 1 or PC 2 selected (power on)
4 • Press the Port Selection Button to select PC 1 or 2
Port Selection Button
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*SV231HU34K6
3 4
11
10
14 15 16 17 2
*SV231HU34K6
Function
Firmware Upgrade • Used to upgrade the Firmware. Use with
5
Firmware from StarTech.com only
Port(s)
• EDID Copy or Auto EDID from the Console HDMI
6
EDID Button(s)
Display
7 EDID LED Indicator(s) • Indicates EDID Mode
8 HDCP Switch(es) • Control HDCP Mode
• (SV231HU34K6) Connect the Console HDMI
Display
Console HDMI Output
9
Port(s) • (SV231DHU34K6) Connect to two Console HDMI
Displays
• (SV231HU34K6) Connect to an HDMI Port on PC 2
10
PC 2 HDMI Input Port(s)
• (SV231DHU34K6) Connect to two HDMI Ports on
PC 2
• (SV231HU34K6) Connect to an HDMI Port on PC 1
11
PC 1 HDMI Input Port(s)
• (SV231DHU34K6) Connect to two HDMI Ports on
PC 1
• Connect a DC 12V Power Source to power the
12
Power Input Port
KVM Switch
• Connect an Audio Device (Stereo Speakers or a
13 Console Audio Port
Microphone)
• Connect to a SuperSpeed USB 5Gbps (USB 3.2
14
PC 2 USB Port
Gen 1) Port on PC 2
• Connect to an Audio Port (for Stereo Speakers or a
15 PC 2 Audio Port
Microphone) on PC 2
• Connect to a SuperSpeed USB 5Gbps (USB 3.2
16
PC 1 USB Port
Gen 1) Port on PC 1
• Connect to an Audio Port (for Stereo Speakers or a
17
PC 1 Audio Port
Microphone) on PC 1
Requirements
For the latest requirements and to view detailed instructions on all product functionality
in a full user manual, please visit:
www.startech.com/SV231HU34K6
www.startech.com/SV231DHU34K6
Quick-Start Guide
Manual Revision: October 15, 2020
