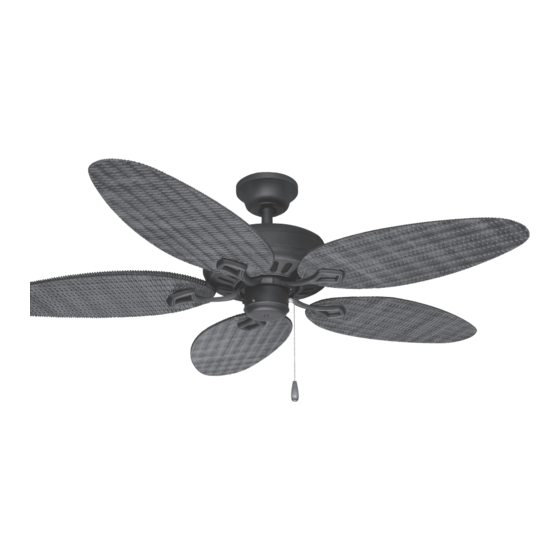

Turn of the century 52" belmont ceiling fan
Table of Contents

Advertisement

Available languages

Available languages

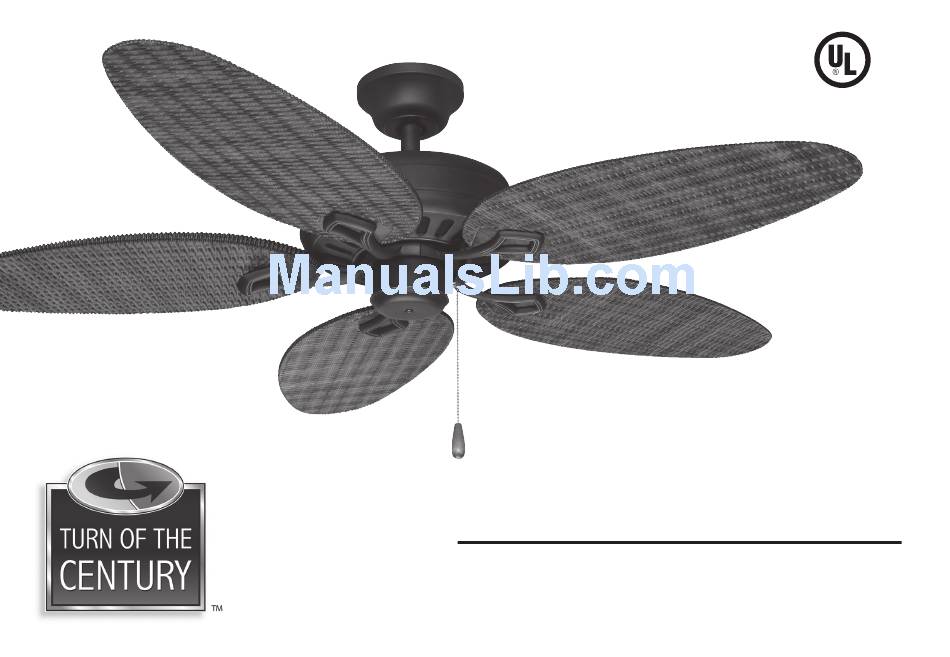

LISTED
52" Belmont Ceiling Fan
Owner's Manual
Ventilador de Techo de 132.1cm
Manual del Propietario
SKU 355-7004

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF200M-52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turn of the century EF200M-52

  • Page 1 LISTED 52” Belmont Ceiling Fan Owner’s Manual Ventilador de Techo de 132.1cm Manual del Propietario SKU 355-7004...
  • Page 2: Table Of Contents

    52” Belmont Ceiling Fan UL Model No. EF200M(A)-52 Table of Contents Safety Rules .........1 Unpacking Your Fan ....2 Installing Your Fan ......3 Operating Your Fan .....10 Care of Your Fan ......11 Troubleshooting ......11 Specifications ......12 Warranty Information ....13 QUESTIONS, PROBLEMS, MISSING PARTS: Please do not return to retailer: Call 1-800-749-3267 for any missing parts or questions regarding installation.
  • Page 3: Safety Rules 1

    Safety Rules 1. READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, ensure electricity To avoid personal injury or damage to the fan and has been turned off at the circuit breaker or fuse box other items, be cautious when working around or before beginning.
  • Page 4: Unpacking Your Fan

    2. Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Blade Attachment Hardware 1. Fan Motor Assembly 6. Slide-On Mounting Plate (15 screws) (located inside canopy) 2. Canopy Mounting Hardware 7. Decorative Motor Collar Cover 3.
  • Page 5: Installing Your Fan 3

    Installing Your Fan 3. Tools Required Figures 1, 2, and 3 are examples of differ- ent ways to mount the outlet box. Phillips screw driver, straight slot screw driver, adjustable wrench, step ladder, and wire cutters. Mounting Options If there isn’t an existing outlet box, then read Figure 3 the following instructions.
  • Page 6: Hanging The Fan

    Hanging the Fan Loosen but Mounting Screws Do Not Remove UL Listed (Supplied with Remove REMEMBER to turn off the power. Outlet Box) Outlet Box Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies;...
  • Page 7 “Close-to-Ceiling” 5. Align the mounting holes with the holes Motor Collar in the motor and fasten, using the three Mounting screws and lock-washers removed in Screw and Lockwasher step 3 (Figure 9). 1. Remove the mounting plate from the (3 of 6 Screws) canopy by loosening the four screws on 6.
  • Page 8 Installing Fan to the mounting, seat the hanger ball in the mounting plate socket. Make sure the WHEN USING STANDARD BALL/ Electrical Box tab on the mounting plate socket is DOWNROD MOUNTING, THE TAB IN THE RING AT THE BOTTOM OF THE MOUNTING PLATE properly seated in the groove in the MUST REST IN THE GROOVE OF THE HANGER hanger ball (Figure 10).
  • Page 9 1. Connect the ground conductor of the 120v supply (this may be a bare wire or EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED WITH THIS FAN IS DESIGNED a wire with green insulation) to the green TO ACCEPT UP TO ONE 12 GAUGE HOUSE ground lead(s) of the fan (Figure 11).
  • Page 10 Finishing the Fan 2. Install the remaining two mounting Blade screws into the holes in the canopy and Mounting Screw Installation tighten firmly. 3. You may now proceed to attaching the STANDARD CEILING MOUNTING fan blades. WHEN USING THE STANDARD BALL/DOWN- LOCKING SLOTS OF CEILING CANOPY ARE ROD MOUNTING, THE TAB IN THE RING AT PROVIDED ONLY AS AN AID TO MOUNTING.
  • Page 11: Blade Balancing

    Blade Balancing All blades are grouped by weight. Because natural woods vary in density, the fan may wobble even though the blades are weight matched. The following procedure should correct most fan wobble. Check after each step. 1. Check that all blade screws are secure. 2.
  • Page 12: Operating Your Fan

    10. Operating Your Fan TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE Warm weather - (Forward) A down- INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN ward air flow creates a cooling effect OBJECTS BETWEEN ROTATING BLADES.
  • Page 13: Care Of Your Fan

    Troubleshooting Care of Your Fan Here are some suggestions to help you Problem Solution maintain your fan. 1. Because of the fan’s natural movement, Fan will not start Check the main and branch circuit fuses or breakers some connections may become loose. CAUTION: Make sure main power is off.
  • Page 14: Specifications

    12. Specifications GROSS CUBE FAN SIZE SPEED VOLTS AMPS WATTS WEIGHT WEIGHT FEET 0.26 2504 18.7 20.9 52” 0.38 3864 1.76 High 0.54 5596 These are approximate measures. They do not include Amps and Wattage used by the light kit.
  • Page 15: Warranty Information 13

    Warranty Information 13. Lifetime Limited Warranty Lifetime Warranty on Motor The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of the shipment from the factory for a lifetime after the date of purchase by the original purchaser.
  • Page 16: Ventilador De Techo

    Belmont de 52” Número de Modelo UL EF200M(A)-52 Ventilador de techo Índice Normas de seguridad ......1 Cómo desempacar el ventilador ..2 Cómo instalar el ventilador ....3 Cómo operar el ventilador ....10 Cuidado del ventilador ...... 11 Solución de problemas .....
  • Page 17: Normas De Seguridad

    1. Normas de seguridad LEE LAS INSTRUCCIONES Y GUÁRDALAS 1. Para disminuir el riesgo de descarga eléctrica, asegúrate 9. Para evitar lesiones, o daños al ventilador y otros objetos; ten de que la electricidad ha sido apagada en el cortacircuitos cuidado al trabajar cerca del ventilador o al limpiarlo.
  • Page 18: Cómo Desempacar El Ventilador 2

    Cómo desempacar el ventilador 2. Desempaca tu ventilador y revisa el contenido. Deberá tener las siguientes piezas: Herrajes de montaje de aspas 1. Ensamblado del motor 6. Placa de montaje deslizante (15 tornillos) (dentro de la cubierta) 2. Cubierta Herrajes de montaje 7.
  • Page 19: Cómo Instalar El Ventilador

    3. Cómo instalar el ventilador Herramientas Las figuras 1, 2 y 3 son ejemplos de Soporte fuerte diferentes formas de montar la caja necesarias eléctrica. Destornillador Phillips, destornillador plano, llave ajustable, escalera de tijera y Placa de Caja cortacables. montaje en eléctrica Opciones de el techo...
  • Page 20 Cómo colgar el 5. Vuelve a ajustar los dos tornillos del Aflojar pero no retirar collarín en la parte superior de la Quitar ventilador carcasa del motor (Figura 6). RECUERDA desconectar la corriente. Tornillos Caja eléctrica Sigue estos pasos para colgar de montaje aprobada...
  • Page 21 Montaje “Cerca del 5. Alinea los orificios de montaje con los Collarín orificios del motor y asegura con los del motor Techo” Tornillo tres tornillos y arandelas de seguridad y arandela de seguridad retiradas en el paso 4 (Figura 9). 1.
  • Page 22 Cómo instalar el 4. Con cuidado alza el ensamblado hacia la placa de montaje del techo y cuelga ventilador en la caja CUANDO USES EL MONTAJE TUBO el ventilador del gancho suministrado BAJANTE Y BOLA ESTÁNDAR, LA PESTAÑA EN usando uno de los orificios en el borde eléctrica EL ARO EN LA PARTE INFERIOR DE LA PLACA exterior de la cubierta de techo (Figura...
  • Page 23 1. Conecta el conductor a tierra del cable de 120 voltios (puede ser un CADA TUERCA DEL CABLE (CONECTOR DE cable desnudo o un cable con aislante CABLE) PROVISTA CON ESTE VENTILADOR verde) al (los) cable(s) terminal(es) a ESTÁ DISEÑADA PARA ACEPTAR CABLES DOMÉSTICOS DE MÁXIMO UN CALIBRE 12 Y tierra verde(s) del ventilador (Figura DOS CABLES DEL VENTILADOR.
  • Page 24 Finalizar la instalación para asegurar en su sitio. Ajusta con 4. Repite los pasos 1, 2 y 3 para las aspas firmeza los dos tornillos de montaje. restantes. del ventilador 2. Instala los dos tornillos de montaje restantes en los orificios de la cubierta y MONTAJE DE TECHO ESTÁNDAR aprieta firmemente.
  • Page 25 Equilibrar las aspas Punto en Todas las aspas se agrupan por peso. el techo Como las maderas naturales varían en densidad, el ventilador puede oscilar aunque las aspas tengan el mismo peso. El siguiente procedimiento corregirá en gran medida la oscilación del ventilador. Verifica después de cada paso.
  • Page 26: Cómo Operar El Ventilador 10

    Cómo operar el ventilador 10. PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLAR LOS SOPORTES DE LAS ASPAS DURANTE LA INSTALACIÓN, COMPENSACIÓN ASPAS LIMPIEZA DEL VENTILADOR. NO INSERTES Clima cálido - (Hacia adelante) Un flujo de OBJETOS EXTRAÑOS ENTRE LAS ASPAS EN aire hacia abajo crea un efecto refrescante FUNCIONAMIENTO.
  • Page 27: Cuidado Del Ventilador

    Solución de problemas Cuidado del ventilador Problem Solución Aquí tienes algunas sugerencias para el El ventilador no Verifica fusibles o disyuntores principales y secundarios. mantenimiento de tu ventilador. PRECAUCIÓN: Asegúrate de que esté desactivada la enciende electricidad principal. Verifica conexiones de cables en línea 1.
  • Page 28: Especificaciones 12

    Especificaciones 12. VELOCI- AMPERI- PIES CÚB. PESO PESO PIES TAMAÑO VOLTIOS VATIOS X MIN. NETO BRUTO CÚB. Baja 0.26 2504 18.7 20.9 52” Media 0.38 3864 1.76 Alta 0.54 5596 Estas son las medidas aproximadas. No incluyen ni el amperaje ni el vataje consumido por el kit de luces.
  • Page 29: Información De Garantía

    13. Información de garantía Garantía limitada de por vida Garantía de por vida para el motor El fabricante garantiza de por vida, a partir de la fecha de compra por el comprador original, que el motor del ventilador no presenta defectos de fabricación ni de material desde la fecha de salida de la fábrica.
