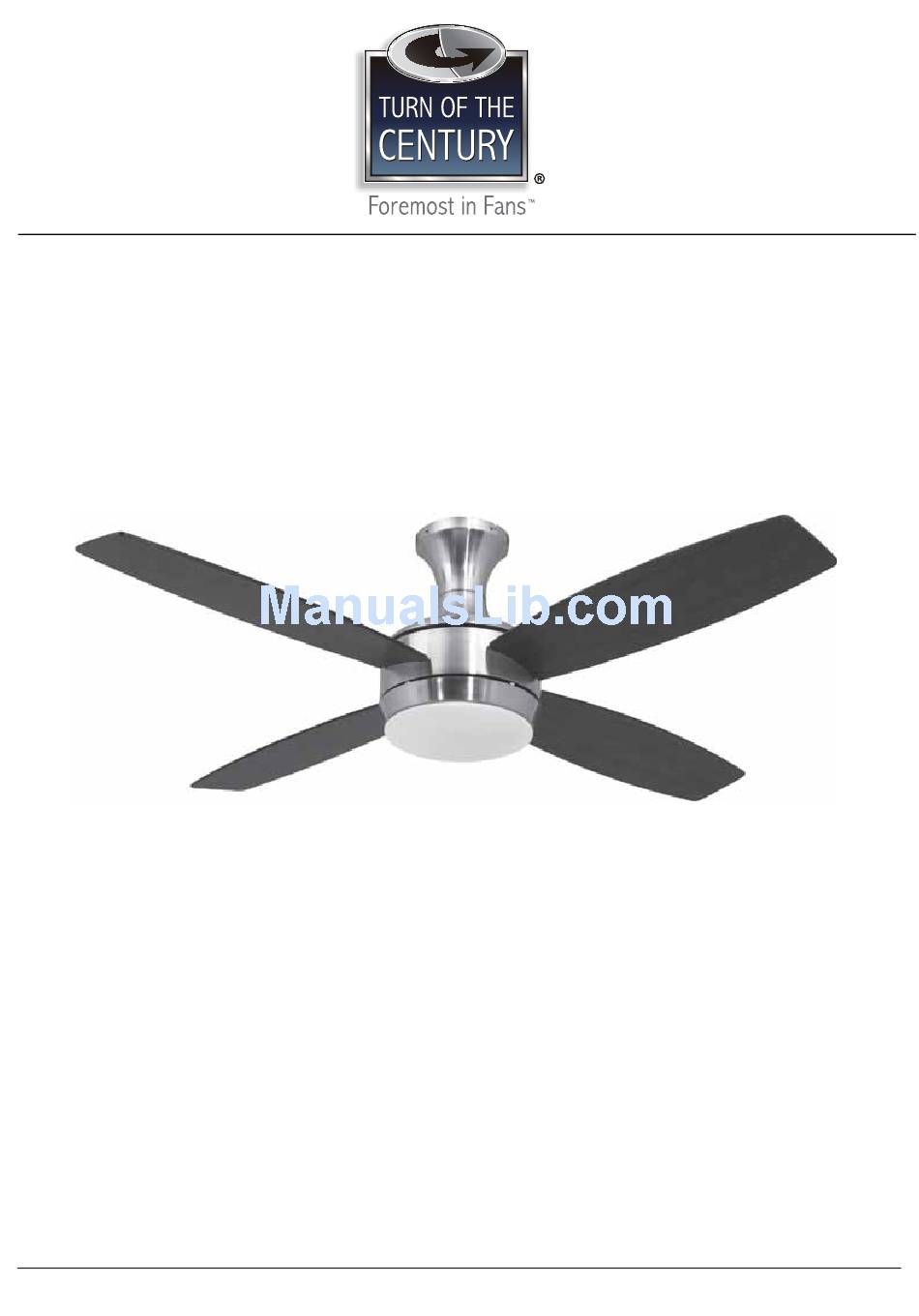

- Page 1 Avante 52in (1.32m) Ceiling Fan Owner’s Manual Menards SKU 355-1844 READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Safety Rules – Read and Save These Instructions 1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
- Page 3 To Begin/Tools Needed (Not Supplied) Required Flathead Phillips Safety Glasses Screwdriver Screwdriver Pliers Wire Cutters Electrical Tape Step Ladder Helpful Wire Strippers Soft Cloth...
-
Page 4: Unpacking Your Fan
Unpacking Your Fan Unpack and inspect fan carefully to be certain all contents are included. 1. Set of blades (4) 2. Mounting plate 3. Fan motor assembly 4. Glass shade 5. 13 Watt compact fluorescent bulbs (2) 6. Balance kit Remote Control Hardware bag Transmitter &... -
Page 5: Hanging The Fan
Hanging the Fan 1. Carefully lift the fan assembly up to the mounting plate and hang the fan on the hook provided by utilizing one of the holes Mounting at the outer rim of the canopy (Figure 4). Plate Hook Warning: The hook as shown in figure 4 is only to balance the fan while attaching wiring. -
Page 6: Making The Electrical Connections
Making the Electrical Connections Warning: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. Frequency Switch If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. Follow the steps below to connect the fan to your household wiring. -
Page 7: Finishing The Fan Installation
Finishing the Fan Installation 1. Tuck connections neatly into ceiling outlet box. 2. Take off side screws (one of each across) on mounting plate Mounting first, then loosen the other two. (Figure 7) Plate Screw 3. Push up the fan motor assembly until the two screws on mounting plate are engaged with "L"... -
Page 8: Attaching The Fan Blades
Removing the Light Kit Mounting Plate 1. Remove the 1 of 3 screws from the light kit mounting plate and loosen the other 2 screws. (Do not remove) 2. Turn the light kit mounting plate counterclockwise to remove the light kit mounting plate from the mounting ring. (Figure 3. -
Page 9: Installing The Light Bulbs And Glass Shade
Reinstalling the Light Kit Mounting Plate and Light Plate 1. Place the key holes on the light kit mounting plate over the 2 screws previously loosened from the mounting ring, turn light kit mounting plate until it locks in place at the narrow section of the key holes. -
Page 10: Operating Your Transmitter
Operating Your Transmitter Install 9 Volt battery (not included), to prevent damage to transmitter, remove the battery if not used for long periods (Figure 15). Restore power to ceiling fan and test for proper operation. A. "HI, MED, and LOW" buttons: These three buttons are used to set the fan speed as follows: HI = high speed MED = medium speed... -
Page 11: Care Of Your Fan
Care of Your Fan Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 12 LIMITED LIFETIME WARRANTY To obtain service, please call the Customer Service Hotline: 1-800-388-6141 ext 216 Mon. – Fri., 9:30 a.m. to 3:00 p.m. EST Model No.: # 355-1844 The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in material or workmanship as follows: If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
