Summary of Contents for NTI XTENDEX ST-C6USBH-HDBT

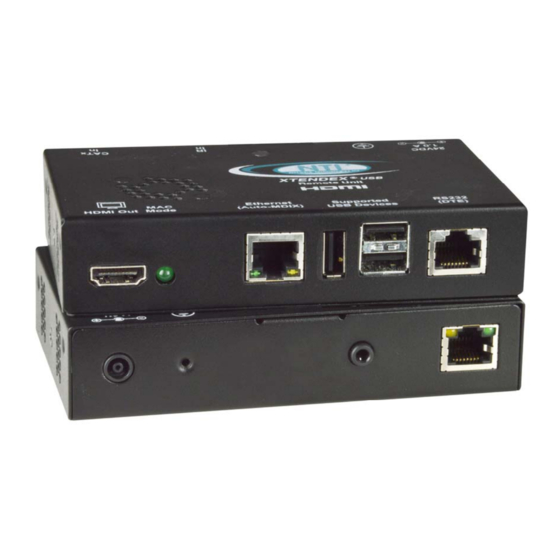

- Page 1 ® XTENDEX Series ST-C6USBH(E)-HDBT 328 FOOT HDMI USB KVM Extender over HDBaseT Installation and Operation Manual ST-C6USBHE-HDBT Remote and Local Unit MAN149 Rev Date 1/5/2015...
- Page 2 Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Local Unit .............................. 5 100BaseT Support Option ............................5 Installing The Remote Unit ............................6 Connect the CATx Cables ............................ -
Page 4: Introduction
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT INTRODUCTION The XTENDEX® ST-C6USBH-HDBT HDMI USB KVM Extender over HDBase-T provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 328 feet away over a single CAT5e/6/7 cable using HDBase-T technology. -
Page 5: Materials
HDMI male-male cable to connect a HDMI source or display (Order NTI # HD-xx-MM where xx=3, 6, 9,14,20,30, 50 and 100 foot cable). DVI-D male to HDMI-A male single link cable to connect a DVI source or display (Order NTI # DVI-HD-xx-MM where xx=3, 6, 10, or 15 foot cable) Always use the shortest possible cable for best performance. -
Page 6: Connectors And Leds
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION 24VDC- 2.5A 1.0mm Power Jack connection jack for the AC adapter (only the Local or the Remote Unit needs to be powered, not both) -
Page 7: Limitations
Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables. If extension cables are needed, contact NTI for the cables required. • The CATx cables must be run to the locations where the Remote and Local units will be connected. Be careful to route the cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal (i.e. -
Page 8: Installation
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT INSTALLATION Installing The Local Unit 1. Connect an HD-3-MM (supplied) or DVI-HD-xx-MM cable (page 2) between the CPU and the "HDMI In" connector on the Local Unit. 2. Connect a USB2-AB-1M cable (supplied) between a USB Type A port on a CPU and the “USB to CPU” USB Type B port on the Local Unit. -
Page 9: Installing The Remote Unit
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Installing The Remote Unit Position the Remote Unit such that the CATx cable, the monitor cable(s), and device cables can each reach the Remote Unit without putting strain on the cables. -
Page 10: Connect The Catx Cables
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Connect the CATx Cables Connect the CATx cable between the “CATx” ports on the Local and Remote Unit. (See Figure 3) When properly inserted the cable ends should snap into place. -
Page 11: Infrared Control
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT INFRARED CONTROL The XTENDEX includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the signal source. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR OUT”... -
Page 12: Mac Mode
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT MAC MODE MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which allows the use of programmable functions for each mouse button. -
Page 13: Firmware Upgrade Procedure
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT FIRMWARE UPGRADE PROCEDURE This procedure describes how to upgrade the firmware in this XTENDEX. If you are not certain whether this XTENDEX has the most up-to-date firmware available, simply download the latest version and follow the upgrade procedure. All versions of firmware can be downloaded from http://www.networktechinc.com/hdmi-usbkvm-hdbt.html. -
Page 14: Prepare To Upgrade The Firmware
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Prepare to Upgrade the Firmware With the power to the PC and XTENDEX OFF, connect a PC to the XTENDEX using the supplied 5 foot patch cable and 9DB-to- RJ45 adapter. Connect the patch cable to the “FIRMWARE UPGRADE” port on the Local Unit, attach the supplied DB9F-to- RJ45 adapter to the patch cable, and connect the DB9 adapter to an available COM port on the PC. -
Page 15: Upgrade Procedures
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Upgrade Procedures Upgrade the Local Controller Firmware The Local controller firmware comes as a file in binary format and has the extension .bin. (i.e. filename.bin). To upgrade the Local controller to this file, follow this procedure: 1. -
Page 16: Upgrade The Local Port Controller Firmware
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Upgrade the Local Port Controller Firmware The Local port controller firmware comes as a file in Intel Hex format and has the extension .hex (i.e. filename.hex). To upgrade the Local Port controller with this firmware, press <p> from the terminal window. The following message should appear on the screen: Send .hex file using XModem protocol... - Page 17 NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT To proceed to upgrade the Remote controller, press <r> from Terminal window. The following message should appear on the screen: Erasing flash memory… Memory successfully erased Send .bin file using Xmodem protocol..
-
Page 18: Technical Specifications
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT TECHNICAL SPECIFICATIONS Video Video Compatibility 1920x1200 resolutions/ HDTV resolution up to 1080p @60Hz Video Connectors HDMI Type A Female Bandwidth 154 MHz (3.76Gbps) Input Video Signal TMDS HDMI Version HDMI 1.2 DVI Support DVI 1.0... - Page 19 NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Distances for CAT5e/CAT6/CAT6a and CAT7 Cables tested to 1080p CATx Type DISTANCE (feet) CAT5e Solid UTP Stranded UTP Solid STP Stranded STP CAT6 Solid UTP Stranded UTP Solid STP Stranded STP...
-
Page 20: Troubleshooting
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
