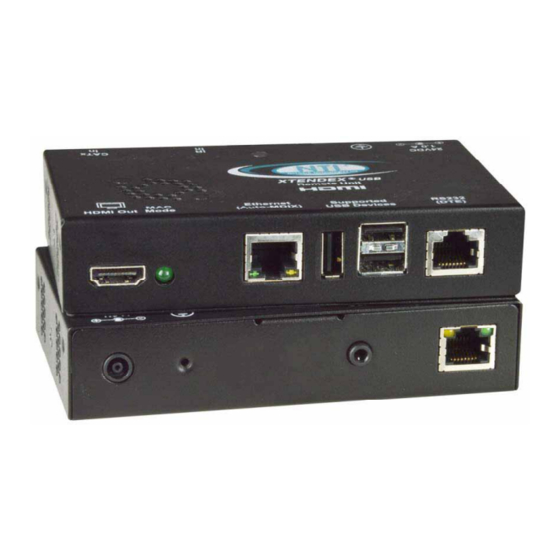

- Page 1 ® XTENDEX Series ST-C6USBH(E)-HDBT 328 FOOT HDMI USB KVM Extender over HDBaseT Installation and Operation Manual ST-C6USBHE-HDBT Remote and Local Unit MAN149 Rev Date 4/3/2014...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Local Unit .............................. 5 100BaseT Support Option ............................5 Installing The Remote Unit ............................6 Connect the CATx Cables ............................ -
Page 4: Introduction
Integrated mounting brackets for easy surface/wall mounting. • High quality, rugged steel construction with durable powder coat finish. Optional: 100BaseT support on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs. (Add an “E” to the part number- order ST-C6USBHE-HDBT) -
Page 5: Materials
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT MATERIALS Materials Included with ST-C6USBH(E)-HDBT kit: NTI XTENDEX Local Unit NTI XTENDEX Remote Unit 1-HD-3-MM 3 foot male-to-male HDMI video cable 1-100VAC to 240VAC at 50 or 60Hz-24VDC/2.5A AC Adapter 1- Power Cord- country specific 3 Foot IR-EMITTER (IR-EMTR-3) 3 Foot IR-RECEIVER (IR-RCVR-3) -
Page 6: Connectors And Leds
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION 24VDC- 2.5A 1.0mm Power Jack connection jack for the AC adapter (only the Local or the Remote Unit needs to be powered, not both) Ground Crimp and solder for connecting earth ground to case... -
Page 7: Limitations
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT LIMITATIONS • The use of CAT5e or of any stranded cabling will reduce the maximum distance and resolution. PREPARATION FOR INSTALLATION • Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables. -
Page 8: Installation
100BaseT Support Option If the 100BaseT support option is present (ST-C6USBHE-HDBT only), the “Ethernet Port” can be used to extend a Local or Wide Area Network (LAN/WAN) connection. The Local or Remote unit can be used to connect a modem, router or switch or a network device (PC, printer, hub etc) If the network device is connected at the Local Unit, then the LAN/WAN connection must be at the Remote Unit, and visa versa. -
Page 9: Installing The Remote Unit
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Installing The Remote Unit Position the Remote Unit such that the CATx cable, the monitor cable(s), and device cables can each reach the Remote Unit without putting strain on the cables. 2. -
Page 10: Connect The Catx Cables
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Connect the CATx Cables Connect the CATx cable between the “CATx” ports on the Local and Remote Unit. (See Figure 3) When properly inserted the cable ends should snap into place. Figure 3- Connect CATx cable WARNING: Never connect the XTENDEX to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. -
Page 11: Infrared Control
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT INFRARED CONTROL The XTENDEX includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the signal source. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR OUT”... -
Page 12: Mac Mode
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT MAC MODE MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which allows the use of programmable functions for each mouse button. -
Page 13: Firmware Upgrade Procedure
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT FIRMWARE UPGRADE PROCEDURE This procedure describes how to upgrade the firmware in this XTENDEX. If you are not certain whether this XTENDEX has the most up-to-date firmware available, simply download the latest version and follow the upgrade procedure. All versions of firmware can be downloaded from http://www.networktechinc.com/hdmi-usbkvm-hdbt.html. -
Page 14: Prepare To Upgrade The Firmware
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Prepare to Upgrade the Firmware With the power to the PC and XTENDEX OFF, connect a PC to the XTENDEX using the supplied 5 foot patch cable and 9DB-to- RJ45 adapter. Connect the patch cable to the “FIRMWARE UPGRADE” port on the Local Unit, attach the supplied DB9F-to- RJ45 adapter to the patch cable, and connect the DB9 adapter to an available COM port on the PC. -
Page 15: Upgrade Procedures
2. Connect the power supply to power ON the Local Unit. The following message (or one similar) will be displayed on the screen: ST-C5-USBVA Bootloader Revision: 1.6 Date: 2010/02/19 18:59:15 Copyright (C) 2010 Network Technologies Inc Press <H> for help… > 3. Release the <Tab> key. -
Page 16: Upgrade The Remote Controller Firmware
3. Plug the CAT6 cable back in (reconnecting the Local and Remote Unit). The following message should appear on the screen: ST-C5-USBVA Bootloader Revision: 1.5 Date: 2013/02/06 10:09:15 Copyright (C) 2010,2013 Network Technologies Inc Press <H> for help… > 4. Release the <Tab> key. - Page 17 NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT To proceed to upgrade the Remote controller, press <r> from Terminal window. The following message should appear on the screen: Erasing flash memory… Memory successfully erased Send .bin file using Xmodem protocol.. At this point the binary file c6usbhe-rcsx-x.bin must be sent.
-
Page 18: Technical Specifications
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT TECHNICAL SPECIFICATIONS Video Video Compatibility 1920x1200 resolutions/ HDTV resolution up to 1080p @60Hz Video Connectors HDMI Type A Female Bandwidth 154 MHz (3.76Gbps) Input Video Signal TMDS HDMI Version HDMI 1.2 DVI Support DVI 1.0 DDC Support... - Page 19 NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT Distances for CAT5e/CAT6/CAT6a and CAT7 Cables tested to 1080p CATx Type DISTANCE (feet) CAT5e Solid UTP Stranded UTP Solid STP Stranded STP CAT6 Solid UTP Stranded UTP Solid STP Stranded STP CAT6a Solid UTP CAT7...
-
Page 20: Troubleshooting
NTI XTENDEX 328 Foot HDMI USB KVM Extender over HDBaseT TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
