Summary of Contents for NTI XTENDEX ST-C6HDMI-300

  • Page 1 ® XTENDEX Series ST-C6HDMI-300 ST-C6HDMI-IR-300 300 FOOT HDMI AND IR EXTENDER Installation and Operation Manual MAN111 Rev Date 8/26/2010...
  • Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Remote Unit ............................5 Installing The Local Unit .............................. 5 Connect the CATx Cables ............................6 Plug-in and Boot Up..............................
  • Page 4: Introduction

    INTRODUCTION The XTENDEX Series ST-C6HDMI-300 CAT6 HDMI and IR Extender (XTENDEX) is designed to enable the video and audio output from one digital video/audio source to be viewed and heard by a remote user. Each video extender consists of a local unit that connects to an HDMI source and optional IR emitter, and a remote unit that connects to an HDMI display and optional IR receiver as much as 300 feet away via Category 5e,6, 6a or 7 twisted-pair cable.
  • Page 5: Materials

    NTI XTENDEX 300 Foot HDMI and IR Extender MATERIALS Materials Included with ST-C6HDMI-300 kit: NTI ST-C6HDMI-300 Local Unit NTI ST-C6HDMI-300 Remote Unit 1-100VAC to 240VAC at 50 or 60Hz-24VDC/1.0A AC Adapter 1- Power Cord- country specific This manual Additional Materials Included with ST-C6HDMI-IR-300 kit:...
  • Page 6: Features And Functions

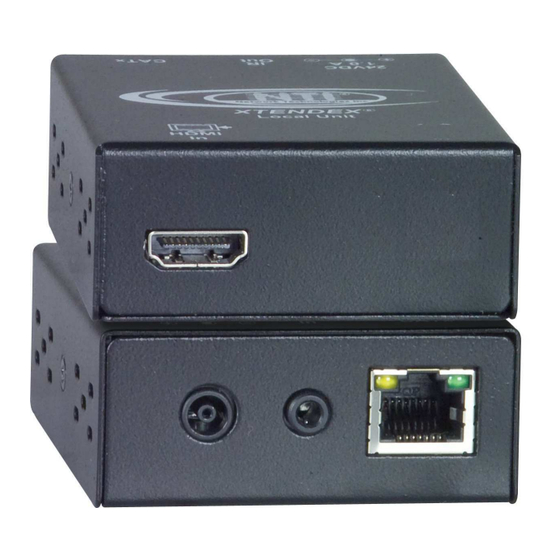

    NTI XTENDEX 300 Foot HDMI and IR Extender (Left End View) (Right End View) ST-C6HDMI-IR-300 Local Unit (Left End View) (Right End View) ST-C6HDMI-IR-300 Remote Unit FEATURES AND FUNCTIONS 24VDC- 1.0A- connection jack for the AC adapter (only the Local or the Remote Unit needs to be powered, not both) CATx- RJ45 connector- for connecting the CAT5e/6/6a/7 cable between the Local and Remote units Yellow LED- traffic indicator- illuminates when there is communication between the local and remote units.
  • Page 7: Limitations

    NTI XTENDEX 300 Foot HDMI and IR Extender LIMITATIONS • The use of CAT5e or shielded CAT6/6a cabling will reduce the maximum distance and resolution. PREPARATION FOR INSTALLATION • Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables.
  • Page 8: Installation

    NTI XTENDEX 300 Foot HDMI and IR Extender INSTALLATION Installing The Remote Unit Position the Remote Unit such that the CATx cable and the monitor cables can each reach the Remote Unit without putting strain on the cables. 2. Connect a HDMI-xx-MM (or DVI-HDMI-xx-MM cable depending upon what connector your display will accept) to the female HDMI video connector labeled "HDMI Out"...
  • Page 9: Connect The Catx Cables

    NTI XTENDEX 300 Foot HDMI and IR Extender Connect the CATx Cables Connect the CATx cable between the “CATx” ports on the Local and Remote Unit. (See Fig. 3.) When properly inserted the cable ends should snap into place. ST-C6HDMI-IR-300 Local Unit ST-C6HDMI-IR-300 Remote Unit (Right End View) (Right End View)
  • Page 10: Infrared Control

    NTI XTENDEX 300 Foot HDMI and IR Extender INFRARED CONTROL Model ST-C6HDMI-IR-300 includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the video/audio source. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR OUT”...
  • Page 11: Technical Specifications

    NTI XTENDEX 300 Foot HDMI and IR Extender TECHNICAL SPECIFICATIONS Video Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p Video Connectors HDMI Type A Female Input Video Signal TMDS Video Color Format Standard (24bit); Deep color (30,36bit);RGB, 4:2:2, 4:4:4 HDMI Version HDMI 1.3a DVI Support...
  • Page 12: Interconnection Cable Wiring Method

    Figure 6- View looking into RJ45 female TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
  • Page 13: Warranty Information

    NTI XTENDEX 300 Foot HDMI and IR Extender WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com/return-policy.html for information regarding repairs and/or returns.

This manual is also suitable for:

Xtendex st-c6hdmi-ir-300
