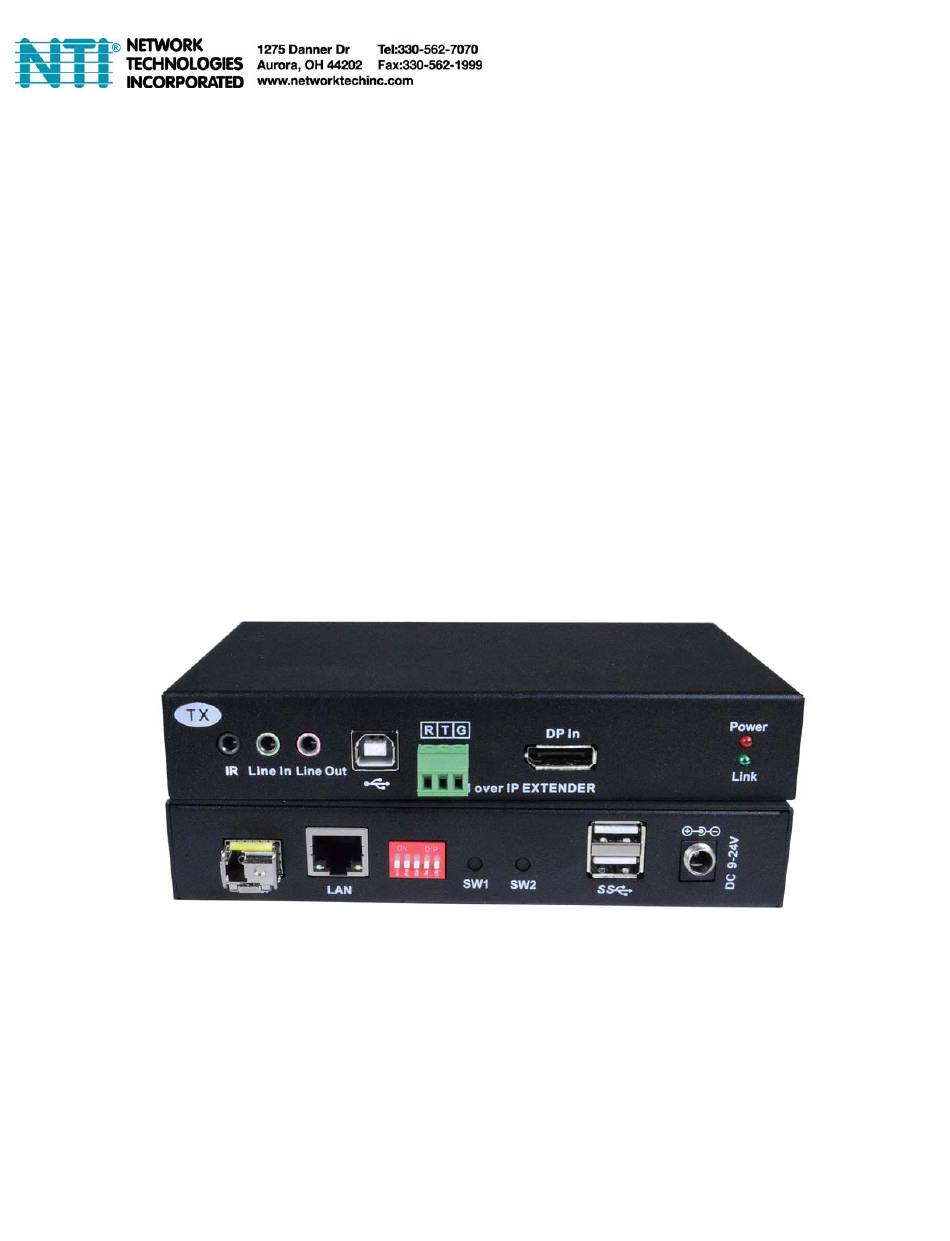

- Page 1 ® XTENDEX Series ST-C6FOUSBDP4K- LC 4K 10.2Gbps DisplayPort USB KVM Extender via CAT6/7 or Fiber Product Manual ST-C6FOUSBDP4K-L-LC (Frontview-Top) ST-C6FOUSBDP4K-R-LC (Rearview-Bottom) MAN418 REV 2/28/22...
- Page 2 TRADEMARK XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
- Page 3 Introduction ® The XTENDEX 4K 10.2Gbps DisplayPort USB KVM Extender via CAT6/7 or Fiber provides remote KVM (USB keyboard, USB mouse and 3840x2160@30Hz UHD DisplayPort monitor) access to a USB computer up to 328 feet (100 meters) away via CAT6/6a/7 cable, 6.21 miles (10 km) via simplex LC single-mode fiber optic cable, or 1640 feet (500 m) via simplex LC multimode (OM2 and above) fiber optic cable.
-
Page 4: Package Includes
Package Includes: 1 x Local Unit 1 x Remote Unit 1 x FO4436 optical transceiver (local and remote) 1 x 72.83 in (1,850.00 mm) USB A to B cable 1 x Mounting Rack Metal Parts ... -
Page 5: Features And Functions
Features and Functions LABEL CONNECTOR/LED DESCRIPTION 3.5mm Jack Not Used at this time Line In 3.5mm Jack Audio Input; signal from Line Out of Rx Line Out 3.5mm Jack Audio Output; signal from Mic In of Rx USB Type B Female Connect cable to USB port of PC for Hub extension R T G 3-Terminal Block... - Page 6 LABEL CONNECTOR/LED DESCRIPTION Sensor Not Used at this time Mic In 3.5mm Jack Microphone Input; extended to Line Out of Tx Line Out 3.5mm Jack Audio Output; extended to Line In of Tx USB Type A Female x2 Connect to USB devices (keyboard, mouse, flashdrive, touchscreen) R T G 3-Terminal Block...
-
Page 7: System Installation
System Installation 1. Attach a display, keyboard/mouse, microphone and speaker, as required, to the DP-Out, USB, MIC-IN and Line-Out ports of the Receiver respectively. 2. Use a DisplayPort-to-DisplayPort cable to attach the computer DisplayPort output to the DP-IN of the Transmitter. 3. -
Page 8: Specifications
Specifications Transmitter (Local Unit) Host USB Computer with DisplayPort output Operating System Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/ 2019/2022, Linux and MAC OS 10/11 Video Connector Female DisplayPort USB Connector Female USB Type B Audio Connectors 2x Female 3.5mm jacks for Audio Out and Mic In RS232 Connector 3-pin screw terminal block;... -
Page 9: Warranty Information
Warranty Information The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
