ST-C6HD(A)E-HDBT
HDMI, Digital/Stereo Audio, Ethernet, RS232
Installation and Operation Manual
ST-C6HD-DA-HDBT Local Unit
(Left and Right End Views)
XTENDEX
ST-C6HD-HDBT
ST-C6HD-DA-HDBT
ST-C64K-300
and IR Extender
®
Series
ST-C6HDE-HDBT Local Unit
(Left and Right End Views)
MAN150 Rev Date 12/8/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTENDEX ST-C6HD-HDBT and is the answer not in the manual?

Questions and answers

Summary of Contents for NTI XTENDEX ST-C6HD-HDBT

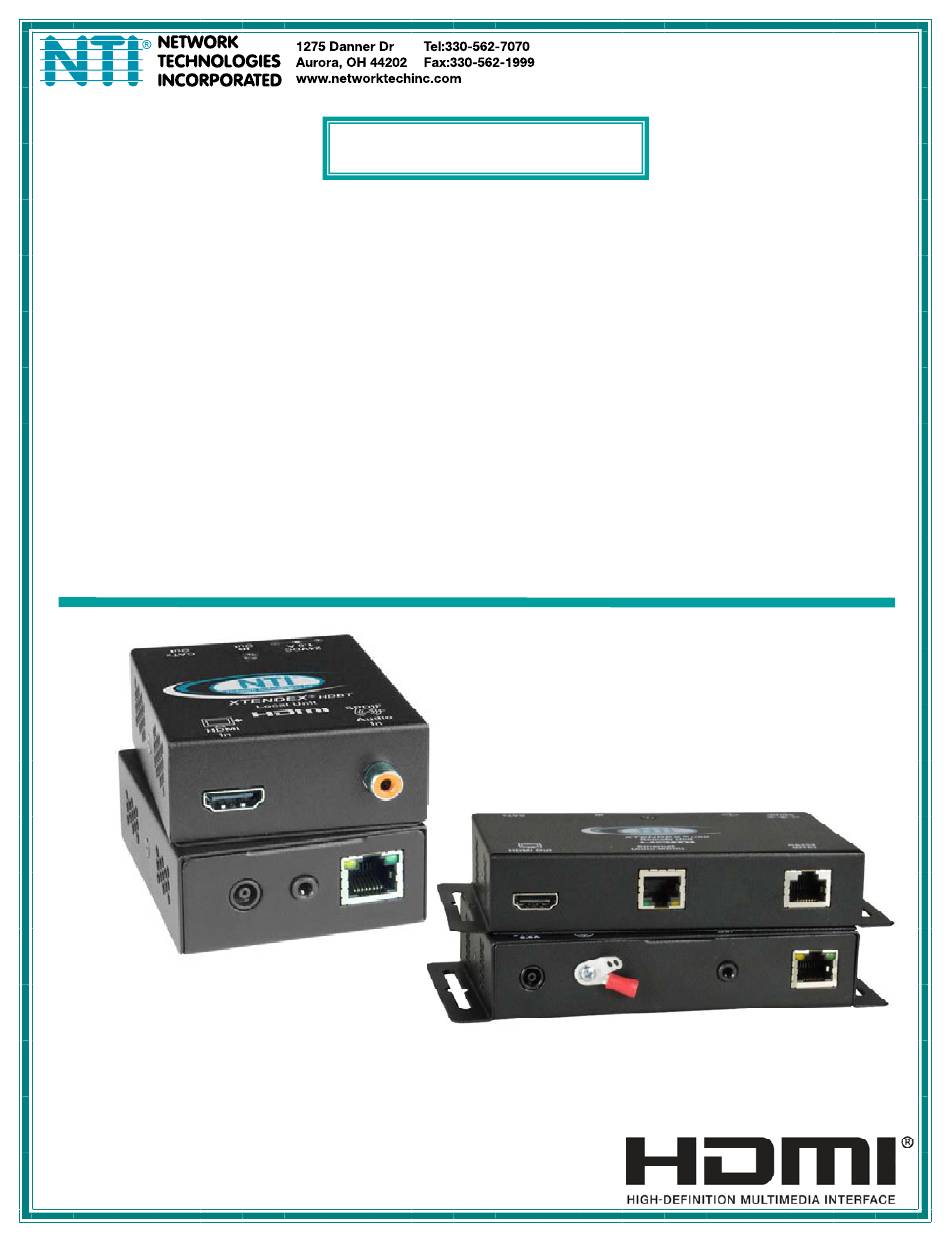

  • Page 1 ® XTENDEX Series ST-C6HD-HDBT ST-C6HD-DA-HDBT ST-C6HD(A)E-HDBT ST-C64K-300 HDMI, Digital/Stereo Audio, Ethernet, RS232 and IR Extender Installation and Operation Manual ST-C6HD-DA-HDBT Local Unit (Left and Right End Views) ST-C6HDE-HDBT Local Unit (Left and Right End Views) MAN150 Rev Date 12/8/2016...
  • Page 2 Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................4 Limitations ..................................6 Preparation for Installation .............................. 6 Installation ..................................7 Installing The Remote Unit ............................7 Installing The Local Unit .............................. 8 Connect the CATx Cables ............................8 Plug-in and Boot Up..............................
  • Page 4: Introduction

    Transmits an uncompressed high speed HDMI signal over one CATx cable. • Supports HDTV resolutions to 1080p and video resolutions to 1920x1200. Extend 1080p up to 5,600 feet when combined with NTI's ST-FOHDMI-LC HDMI Extender via Fiber Optic Cable. •...
  • Page 5: Materials

    HDMI male-male cable to connect a HDMI source or display (Order NTI # HD-xx-MM where xx=3, 6, 9,14,20,30, 50 and 100 foot cable). DVI-D male to HDMI-A male single link cable to connect a DVI source or display (Order NTI # DVI-HD-xx-MM where xx=3, 6, 10, or 15 foot cable)
  • Page 6 MM – see website for available lengths) Always use the shortest possible cable for best performance. Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com...
  • Page 7: Connectors And Leds

    NTI XTENDEX 600 Foot HDMI and IR Extender CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION HDMI female video for connecting an HDMI cable between the Local Unit and the video source HDMI In connector RCA Jack SPDIF Audio In For connecting SPDIF digital audio source (ST-C6HD-DA-HDBT only) 24VDC- 1.0A...
  • Page 8 NTI XTENDEX 600 Foot HDMI and IR Extender CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION HDMI In HDMI female video for connecting an HDMI cable between the Local Unit and the video source connector 24VDC- 1.0A 1.0mm Power Jack connection jack for the AC adapter (only the Local or the Remote Unit needs to...
  • Page 9: Limitations

    Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables. If extension cables are needed, contact NTI for the cables required. • The CATx cables must be run to the locations where the Remote and Local units will be connected. Be careful to route the cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal (i.e.
  • Page 10: Installation

    NTI XTENDEX 600 Foot HDMI and IR Extender INSTALLATION Installing The Remote Unit Position the Remote Unit such that the CATx cable, the monitor cable(s), and audio cables (if applicable) can each reach the Remote Unit without putting strain on the cables.
  • Page 11: Installing The Local Unit

    NTI XTENDEX 600 Foot HDMI and IR Extender Installing The Local Unit 1. Connect an HD-3-MM (supplied) or DVI-HD-xx-MM cable (page 3) between the video source and the "HDMI In" connector on the Local Unit. 2. Connect a RCA-3-MM (supplied) between an audio out port on the audio source and the “SPDIF Audio In” connector on the Local Unit (model ST-C6HD-DA-HDBT only).
  • Page 12 NTI XTENDEX 600 Foot HDMI and IR Extender SPDIF and Stereo Audio Feature Models ST-C6HDA(E)-HDBT include extra ports to support the connection of a separate audio source if desired. Either a SPDIF digital audio source OR a stereo audio source can be connected (not both) to the Local Unit.
  • Page 13: Plug-In And Boot Up

    NTI XTENDEX 600 Foot HDMI and IR Extender Plug-in and Boot Up Plug the power cord from the monitor into the power outlet. Connect an AC adapter power connector to the 24VDC port on either the Remote Unit or the Local Unit. Plug the AC adapter into a power outlet.
  • Page 14: Infrared Control

    NTI XTENDEX 600 Foot HDMI and IR Extender INFRARED CONTROL The XTENDEX includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the signal source. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR OUT”...
  • Page 15: 100Baset + Rs232 Support

    NTI XTENDEX 600 Foot HDMI and IR Extender 100BASET + RS232 SUPPORT If you have purchased the STC6HDE-HDBT, then your unit includes additional support for 100BaseT and RS232 extension. With the 100BaseT support option, the “Ethernet Port” can be used to extend a Local or Wide Area Network (LAN/WAN) connection.
  • Page 16: Technical Specifications

    NTI XTENDEX 600 Foot HDMI and IR Extender TECHNICAL SPECIFICATIONS Video Video Connectors HDMI Type A Female Input Video Signal TMDS Bandwidth 340MHz (10.2Gbps) (ST-C64K-300 model only) 154 MHz (3.76Gbps) (All other models) HDMI Version HDMI1.4 (ST-C64K-300 model only) HDMI 1.2 (All other models) DVI Support DVI 1.0...
  • Page 17: Interconnection Cable Wiring Method

    NTI XTENDEX 600 Foot HDMI and IR Extender Cable Ranges Tested Cable Length Model Cable Type Resolution (In Feet) ST-C6HD(AE)-HDBT CAT5e/6 1900x1200, 1080p@60Hz CAT6a/7 23AWG ST-C64K-300 CAT5e/6 Solid UTP 3840x2160 @30Hz CAT5e/6 Solid STP CAT6a/7 Solid STP 3840x2160 @30Hz INTERCONNECTION CABLE WIRING METHOD The CATx connection cables between the Remote and Local are terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard.
  • Page 18: Troubleshooting

    NTI XTENDEX 600 Foot HDMI and IR Extender TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
