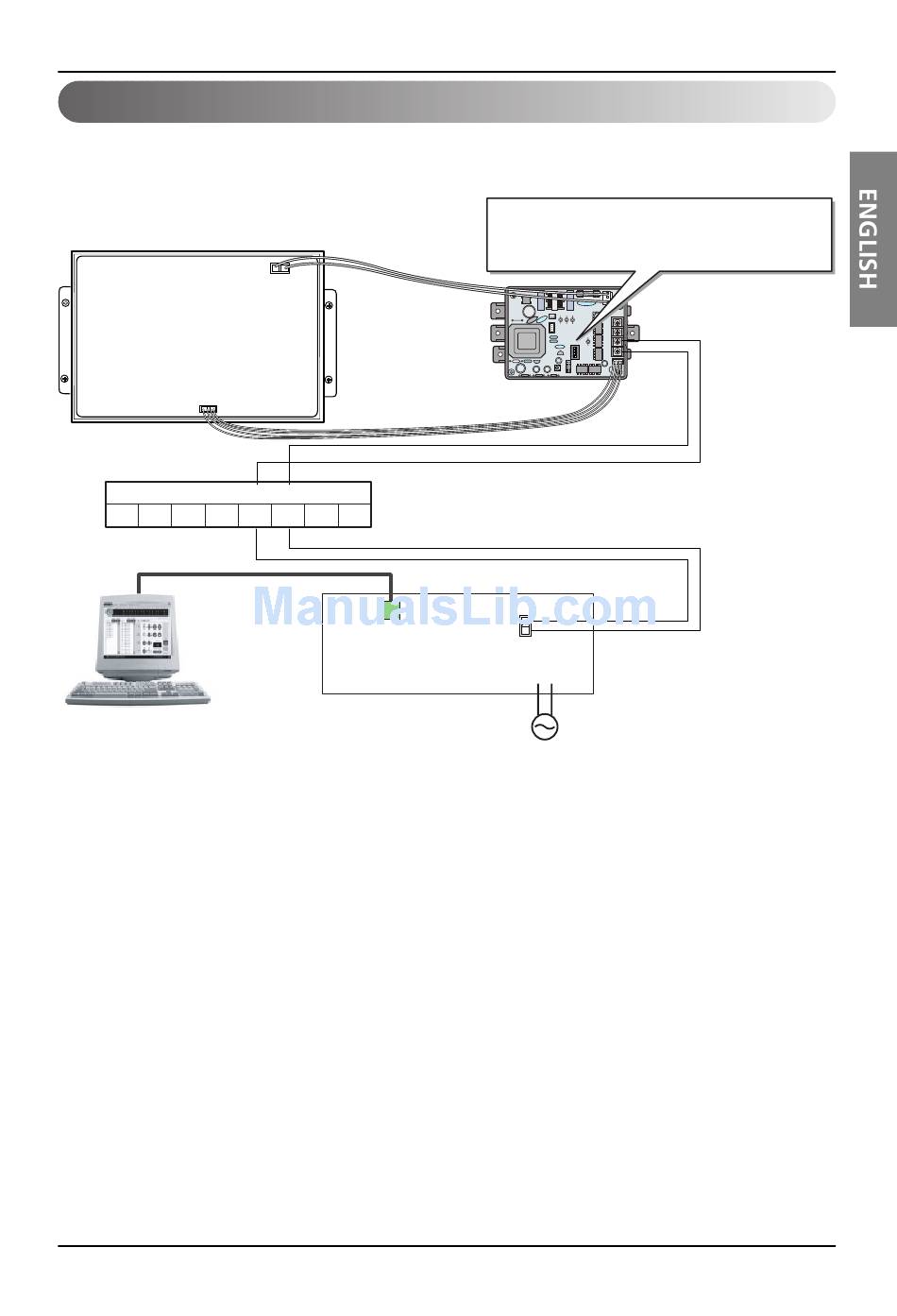

Multi V PLUS & MPS Product
Outdoor Main PCB
CN_CENTRAL
Multi V Terminal Block
A
B
E
F
PC Central Controller
Note : Terminal Block Use in case of Multi V and other models may Or may not be present.
If it is not present, make direct connections.
C
D VCC GND
LAN Port
(PQNFG00A0)
Please refer to Network Interface setting method
on the next page.
It explains about how to set PI485(M) DIP switch.
PMNFP14A0
RS485 communication line
BUS_A
BUS_B
CNU
Power terminal
AC 220~250 V 50/60Hz
Internal Wiring Diagram
BUS_A
BUS_B
Installation Manual 7
