External Wiring Diagram
External Wiring Diagram
Multi V CRU(N)N

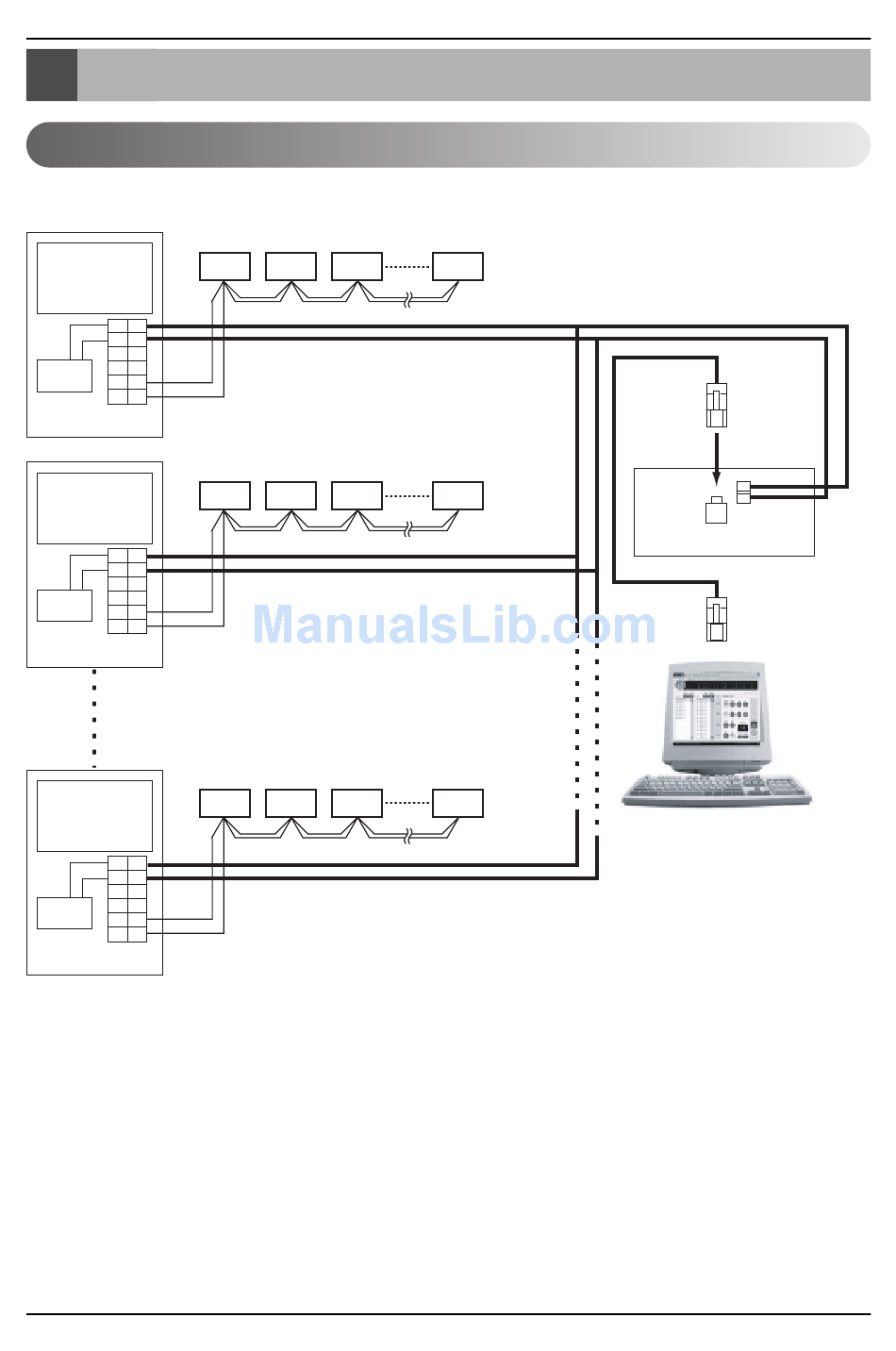

- Refer the wiring diagram and connect the communication line accordingly
MAIN PCB
C C
D D
VCC VCC
GND GND
PI485
A A
B B
Outdoor unit 0
MAIN PCB
C C
D D
VCC VCC
GND GND
PI485
A A
B B
Outdoor unit 1
MAIN PCB
C C
D D
VCC VCC
GND GND
PI485
A A
B B
Outdoor unit 16
A, B terminals are for connecting to Indoor units, and C, D terminals are for connecting to
CNU.
* Notice : Indoor unit address setting can be done by rotary switch in the Indoor unit PCB
4 PC Central Controller
Indoor units
00 01 02
10 11 12
F0 F1 F2
0F
1F
FF
Cross
Cable
BUS A
BUS B
LAN Port
CNU
(PQNFG00A0)
PC Central Controller
