System Structure

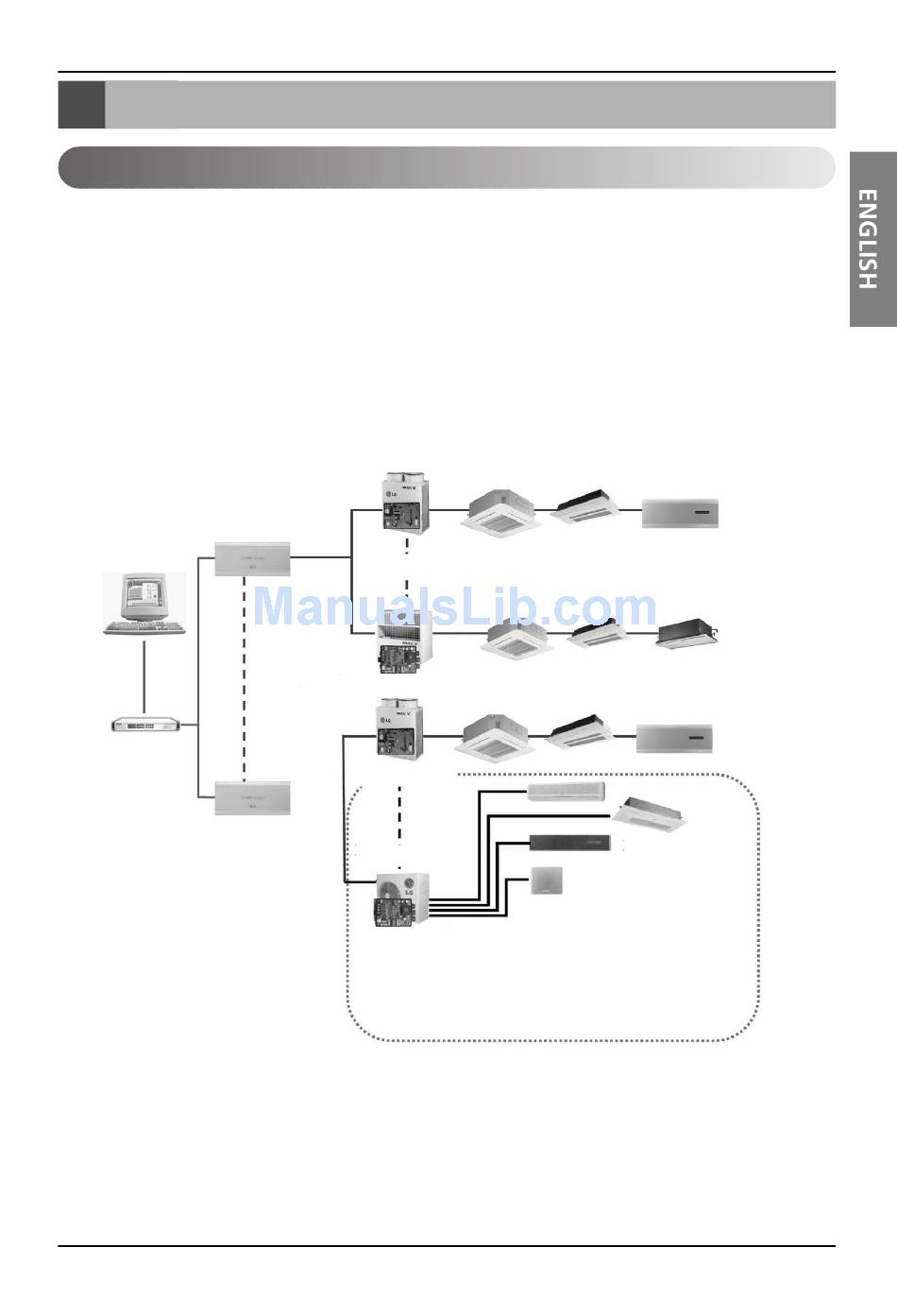

System Configuration

System Configuration
- 16 CNU / 1 PC Central Controller
- 8 PI485 / 1 CNU
- 1Outdoor Unit / 1 PI485
• NOTE : If your requirement does not match above mentioned spec then Please Contact Air-
conditioner Department for support.
1PC
Central Controller
LAN
HUB
CNU(Interface)
Multi V Outdoor Unit
PQNFP00A0
PMNFP14A0
1
PQNFP00A0
F
MPS Outdoor
PMNFP14A0
01
00
70
71
00
01
7C
7E
7F
Installation Manual 3
System Structure
OF
7F
0F
7D
