User Manual

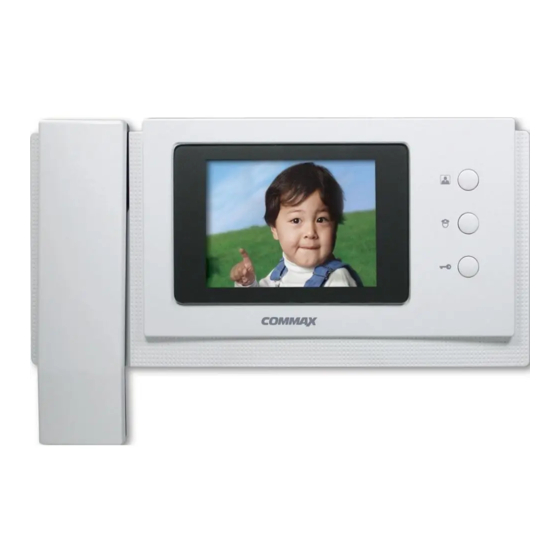

Color Video Door Phone CDV-43N
Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax CDV-43N
Summary of Contents for Commax CDV-43N
-
Page 1: User Manual
User Manual Color Video Door Phone CDV-43N Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
9. Specifications and Features ....................11 10. Safe Operation Guide....................11 1. Greetings Thank you for Purchasing COMMAX Products Please carefully read this User's Manual (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 3: Warnings And Cautions
2. Warnings and cautions Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. - Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.
-
Page 5: Part Names And Functions
3. Parts Names and Functions Part Name Description Handset Handset receiver TFT-LCD Display visitor's image Power LED Power indicator Monitoring button Screen view of door cameras Interphone button Call an interphone Door open button Open the door Color adjuster Adjust the screen color Brightness adjuster Adjust the screen brightness Volume Controller... -
Page 6: Operation
4. Operation 1. Calling of visitor The visitor Open the door The visitor s presses the image appears call button on A chime Dialog begins on the monitor the camera sounds Dialog duration 60 seconds at To check a time A view of the front door can be seen anytime the entrance button is pressed and a dialog can be made Hang-up the... - Page 7 Setting screen mode to select the proportion of image marked in the screen. - By pressing INTERPHONE BUTTON (screen setting button) repeatedly during monitoring mode or calling door entrance mode, the screen ratio will be changed as following in order.(You cannot adjust during talking mode) ZOOM WIDE ZOOM : Zoom in(expansion) image maintaining actual ratio(4:3) is...
-
Page 8: Installation
5. Installation Monitor installation Screw M3X6 (1EA) Screw T4X18 (2EA) Note Avoid installing the product in the area of direct sunlight. The position of the unit's body should fit the standard height range (Recommended height range is 1450 ~ 1500mm.) Avoid installing the product exposed to gas exposure, magnetic force, in humid temperatures, as it may damage the condition and perform- ance of the product. -
Page 9: Wiring And Connection Instructions
3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4. White: Call signal CDV-43N Note 1. In case, if there is a high-voltage power line in the area of installation, use metal tube coaxial cable for wiring 2. Beware of wrinkling of line coating and cable stick-outs as it may cause circuit shortage and operation inconvenience. -
Page 10: Extension Of Monitors
7. Extension of monitors Extendable When adding a second monitor, visual and audio quality of video may deteriorate... -
Page 11: Package Contents
8. Package Contents Screw M3 X 6 (1EA) Screw T4 X 18 (2EA) Monitor(CDV-43N) Handset Wall bracket for monitor Monitor fixing screw Wall bracket mounting screw Connector (4P) User Manual... -
Page 12: Specifications And Features
9. Specifications and Features Rated Voltage 100-240V~, 50/60Hz Power Consumption Operating : 15W Wiring 4 wires with door camera (Polarity), 4 wires with an Interphone (Polarity) Screen Size Color 4.3" TFT LCD Communication Simultaneous communication From a door camera : Electric chime Call Sound From an interphone : Beep sound Time to display the screen... - Page 13 Memo...
- Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2012.10.104...
