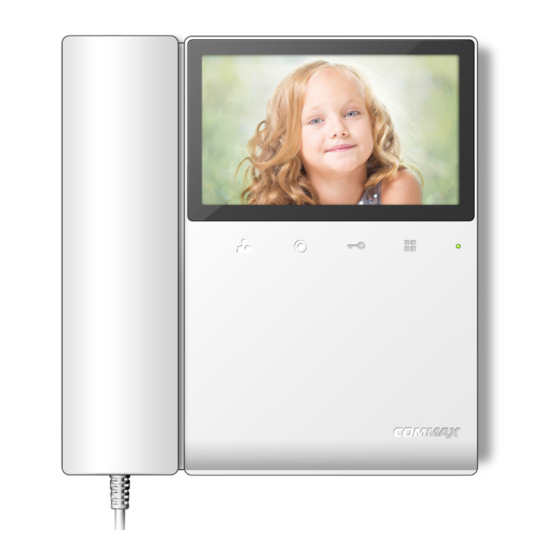

Commax CDV-43KM User Manual

Color video door phone
Hide thumbs

Advertisement

Table of Contents

User Manual

Color Video Door Phone
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
CDV-43KM / CDV-43KM2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-43KM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CDV-43KM

Summary of Contents for Commax CDV-43KM

  • Page 1: User Manual

    User Manual Color Video Door Phone CDV-43KM / CDV-43KM2 • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •...

  • Page 2: Table Of Contents

    Installation .....................17 Specifications and Features..............18 10. Safe Operation guide ................18 1. Greetings Thank you for Purchasing COMMAX Products ● Please carefully read this User's Manual (in particular, precautions for safety) before using a ● product and follow instructions to use a product exactly.

  • Page 3: Warnings And Cautions

    2. Warnings and cautions Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Shows plugging out the power cord Caution It may cause a minor damage or without an exception...
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.

  • Page 5: Part Names And Functions

    Wall bracket mounting Connector (1EA) screw for monitor (1EA) screw (1EA) CDV-43KM (1EA) (4EA) CDV-43KM2 (2EA) 5. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 2.

  • Page 6: Operation

    6. Operation Caution : Do not hold the handset at your ear when you press hook switch to switch call. 1. Calling of visitor The visitor Open the door The visitor’ s presses the image appears call button on The door release function A chime Dialog begins operates only when the visitor’...
  • Page 7 When there is no space left for recording ‘VIDEO’ inside of SD card : The icon ‘FULL’ will be displayed on LCD monitor. Then CDV-43KM(2) will be automatically deleting the oldest VIDEO and saving the newest VIDEO instead. Caution 2) When there is no SD card inserted : The icon’No SD’...

  • Page 8: Start Menu

    7. Start Menu : User can start Main Menu by touching Menu button from Standby mode in LCD monitor. : Main Menu consists of two features, first ‘VISITOR’and second ‘CONFIG’ User can finish Main Menu by touching Menu button and LCD monotior will go back to Standby mode.
  • Page 9 : Select (Interphone button) – Execute : Previous (Menu button) – Go back to Main Menu (2) ‘VIDEO’: User can check ‘VIDEO’. (3) ‘STILL IMAGE’: User can check ‘STILL IMAGE’. 7-1-1 Recorded image checking User can choose ‘CHECKING VISITOR’ Menu. User can choose then ‘VIDEO’ or ‘STILL IMAGE’...
  • Page 10 7-2. CONFIG User can see below image in LCD monitor by selecting the icon in Main Menu. (1) Icon descripton : Move to left - User can select TIME, SETTING, LANGUAGE, DISPLAY based on ned. : Move to right - User can select TIME, DISPLAY, LANGUAGE, SETTING based on need. : Select - User can select any feature.
  • Page 11 (1) Icon decription : Move to left – Move from YEAR, MINUTE, HOUR, DAY and lastly MONTH. (Move from right after YEAR) : Move to right – Move from YEAR, MONTH, DAY, HOUR and lastly MINUTE. (Move from left after YEAR) : Select –...
  • Page 12 : Select - Select to feature to change. When selecting, the feature will be blinking. Decrease the configuration value. Increase the configuration value. (After adjustment, complete it with button.) : Previous – User can go back to ‘SETTING’ 7-2-3. LANGUAGE SETTING User can see below image in LCD monitor by moving and selecting the right icon ‘LANGUAGE’...
  • Page 13 7-2-4. SETTING User can see below image in LCD monitor by moving and selecting the right icon ‘SETTING’ in CONFIG. (1) Icon description : Move to left - Move from right feature to left. : Move to right - Move from left feature to right. : Select - Select to feature to change.
  • Page 14 (1) Icon desciption : Move – Move from STILL IMAGE and to VIDEO. : Select - Select to feature to change. ( When seleted, Icon will be dsplayed.) :Previous – User can go back to ‘SETTING’ (2) VIDEO: Saved as VIDEO ●...
  • Page 15 (2) AUTOMATIC SAVE ➔ User can save ‘VIDEO’ or ‘STILL IMAGE’ automatically using this mode. In this mode, ‘VIDEO’ will be saved once. User can stop saving ‘VIDEO’ by touching Menu button. And User can start saving ‘VIDEO’ again by touching Menu button. In this mode, ‘STILL IMAGE’will be also saved once.
  • Page 16 7-2-4-4. INITIALIZATION User can see below image in LCD monitor by moving and selecting the right icon ‘INITIALIZATION’ in SETTING mode. (1) Icon description : Move - Move from RESET to FORMAT. : Select - Execute : Previous – User can go back to ‘SETTING’ (2) RESET : This is the feature User can reset the product.
  • Page 17 *** Folder and File management *** ➯ Firstly insert SD CARD and execute ‘ FORMAT’ menu and create the folder. ➯ Creation of basic folder PICTURE : Still cut image folder / VIDEO : Video saving folder ( BKUP_PIC : STILL IMAGE back up from embedded memory ) ...

  • Page 18: Installation

    8. Installation ▷ Monitor installation Note • Avoid installing the product in the area of direct sunlight. • The position of the unit's body should fit the standard height range (Recommended height range is 1450 ~ 1500mm.) • Avoid installing the product exposed to gas exposure, magnetic force, in humid temperatures, as it may damage the condition and performance of the product.

  • Page 19: Specifications And Features

    9. Specifications and Features CDV-43KM / CDV-43KM2 Rated Voltage 100-240V~, 50/60Hz Power Consumption Standby : 3.7W, Operating : 8W Wiring 4 wires with door camera (Polarity), 4 wires with an Interphone (Polarity) Screen Size Color 4.3" TFT LCD Communication Simultaneous communication...
  • Page 20 Memo...
  • Page 21 Memo...
  • Page 22 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Web site : www.commax.com PM0743KM0010 Printed In Korea / 2016.04.104...
