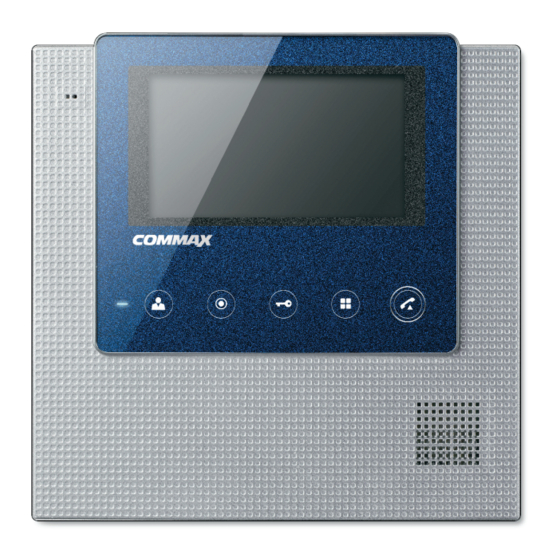

Color video door phone

Advertisement

User Manual
Color Video Door Phone CDV-43U
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-43U and is the answer not in the manual?

Questions and answers

Summary of Contents for Commax CDV-43U

  • Page 1 User Manual Color Video Door Phone CDV-43U • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •...
  • Page 2: Table Of Contents

    Table of Contents 1. Warnings and Cautions................2 Part Names and Functions ..............3 Contents ....................3 Wiring and Connection Instructions............4 Installation....................4 Operation ....................5 Initialization.....................7 Specifications..................7 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage.
  • Page 3: Part Names And Functions

    Parts Names 3. Contents TFT LCD Microphone Power Switch Power Wall bracket User Manual (1EA) Video Phone for monitor (1EA) (CDV-43U) Speaker Monitoring Button Talk Button Interphone Button Menu Button Door Release Button Connector (1EA) Monitor fixing Wall bracket mounting...
  • Page 4: Wiring And Connection Instructions

    4. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 2. Blue: GND 2. Blue: GND 4. White: Video 4.
  • Page 5: Operation

    6. Operation 1. Call from the visitor ① When the visitor calls from the entrance(door camera), the calling sound rings and the image of the visitor is shown on the screen. ② If you press the talk button, you can talk with door camera. By pressing the door release but- ton, door will be released.
  • Page 6 4. Settings * Product settings need the following 4 buttons on the product. * Start Menu / Exit : MENU button * Select and in-put : SELECT button (INTERPHONE button) * Move up / Move right: UP button (DOOR RELEASE button) * Move down / Move left: DOWN button (MONITOR button) You can adjust DOOR VIDEO SET, UTILITY and check INFORMATION (model name &version) with (UP) / (DOWN) button after pressing MENU button on the right...
  • Page 7: Initialization

    7. Initialization (RESET)  Press the interphone button and door release button at the same time for about 3 seconds. Then, image setting value and sound volume will be initialized. 8. Specification CDV-43U Model Spec Rating Voltage 100-240V~, 50/60Hz (FREE VOLTAGE)
  • Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.07.104...
