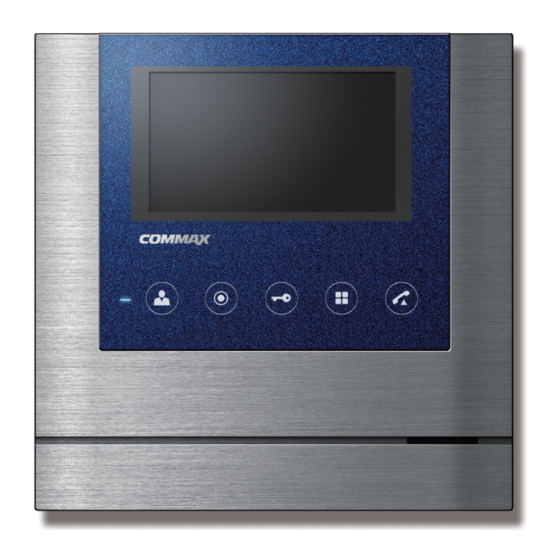

Color video door phone
Hide thumbs

Advertisement

Table of Contents

User Manual

Color Video Door Phone CDV-43M
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-43M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CDV-43M

Summary of Contents for Commax CDV-43M

  • Page 1: User Manual

    User Manual Color Video Door Phone CDV-43M • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Greetings ● Thank you for choosing COMMAX. ● Please read this manual carefully before you use the product. Table of contents Greetings ........................1 Greetings ....................1 Table of Contents .....................1 Table of Contents..................1 1. Warnings and caution ...................2 1. Warnings and caution ................2 2.

  • Page 3: Warnings And Caution

    1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.

  • Page 5: Parts Names

    2. Parts Names PART PART PART MONITOR BUTTON / POWER SWITCH TALK BUTTON DOWN BUTTON INTERPHONE BUTTON / POWER LED SPEAKER SELECT BUTTON DOOR RELEASE TERMINAL FOR MICROPHONE BUTTON / UP BUTTON EXTERIOR MONITOR(LCD) MENU BUTTON 1. POWER SWITCH 2. POWER LED : show blue light when the monitor is turned on, no light when off 3.

  • Page 6: How To Use This Product

    3. How to use this product 1. Call from the visitor ① When the visitor calls from the entrance(door camera), the calling sound rings and the image of the visitor is shown on LCD screen. ② If you press the talk button, you can talk with door camera. By pressing the door release button, door will be released.

  • Page 7: Monitoring

    4. Monitoring : function to see the image of visitor in the entrance. (stand-by mode) Operation - By pressing the MONITOR button repeatedly, the monitor will work as following in order. → → Camera1 Camera2 OFF .... 5. Settings * Product settings need the following 4 buttons on the product. * Start Menu / Exit : MENU button * Select and in-put : SELECT button (INTERPHONE button) * Move up / Move right: UP button (DOOR RELEASE button)
  • Page 8 5-2. UTILITY(additional function) Press the MENU button and access to UTILITY and enter the menu by pressing the SELECT button. (1) SPEAKER-VOLUME: setting receiver sound level . * How to adjust ① Move to SPEAKER-VOLUME icon with UP /DOWN button in UTILITY Menu. ②...

  • Page 9: Installation

    6. RESET : Initializing Keep pushing interphone and door release button for 3 seconds. (Screen setting and Call volume will be initialized). Caution : If initialization is activated, all data including screen setting and Call volume will be initialized . (Screen setting and Call volume) 7.

  • Page 10: Wiring

    8. Wiring The wiring of this equipment is as follows. * Camera connector polarity 1. Red : Voice 2. Blue : GND 3. Yellow : Power(+12V) 4. White : Video...
  • Page 11 ▣ Wiring precautions Each device should be connected by separated cables. If you use UTP CABLE[CAT.5] for Door and Interphone, 2 lines of UTP cable are required. ▣ DOOR Camera Wiring If you use UTP CABLE[CAT.5], Connect the rest 4 lines to GND after connecting 4 lines between monitor and camera.

  • Page 12: Package Contents

    M3 x 6(1E A) S c rew for wall mount S c rew for body 4P C onnec tor(2E A) ① Main body (CDV-43M) ② Wall bracket ③Manual ④ Screw for wall bracket (SCREW GH1T 4*18 ZnW) – 4EA ⑤ Screw for body (SCREW PHM 3*6 ZnY) – 1EA ⑥...
  • Page 13 Memo...
  • Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-21 33 Web site : www.commax.com PM CDV-43M Printed In Korea / 2016.06.105 Printed In Korea / 2016.05.105...
