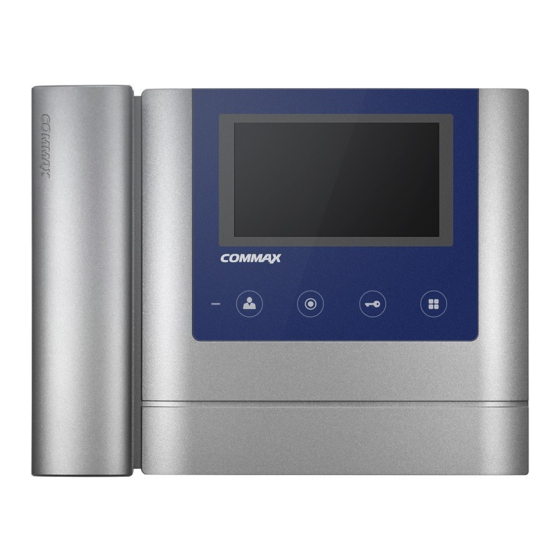

Fineview video phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Fineview Video Phone CDV-43MH/CDV-43MH(M)
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-43MH and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CDV-43MH

Summary of Contents for Commax CDV-43MH

  • Page 1 User Manual Fineview Video Phone CDV-43MH/CDV-43MH(M) • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Table of Contents 1. Warnings and Cautions................2 Part Names and Functions ..............3 Package Contents ..................3 Wiring and Connection Instructions............4 Installation ....................Operation ......................5 Settings ....................Specifications and Features..............7 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage.

  • Page 3: Part Names And Functions

    Warning & Caution Please plug out the power Please don’t use several Please don’ t bend the power Please don’ t handle the power cable from the socket when products at the same time on cable excessively or it may cable with a wet hand.

  • Page 4: Wiring And Connection Instructions

    4. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 2. Blue: GND 2. Blue: GND 3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4.

  • Page 5: Operation

    6. Operation ※Caution : When you are holding the handset while the hook switch is off and someone may push the button of camera, you may lose your hearing because of high volume of calling sound. 1. Calling of visitor The visitor Open the door The visitor’...

  • Page 6: Settings

    3. . Monitoring : function to see the image of visitor i n t h e e ntrance (stand-by mode) Operation - By pressing the Monitor button repeatedly, the monitor will work as following in order. Camera 1 ...

  • Page 7: Specifications And Features

    (2) SCREEN MODE : to set for screen ratio ① ZOOM: Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen) ② 4:3: Image of 4:3 ratio without expansion is shown.(This is actual ratio for camera) ③ WIDE: Full of the screen. Not actual ratio (4:3). Image is expanded according to LCD (WIDE LCD) ratio.
  • Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Web site : www.commax.com PM0743MH0010 Printed In Korea / 2017.04.104...
