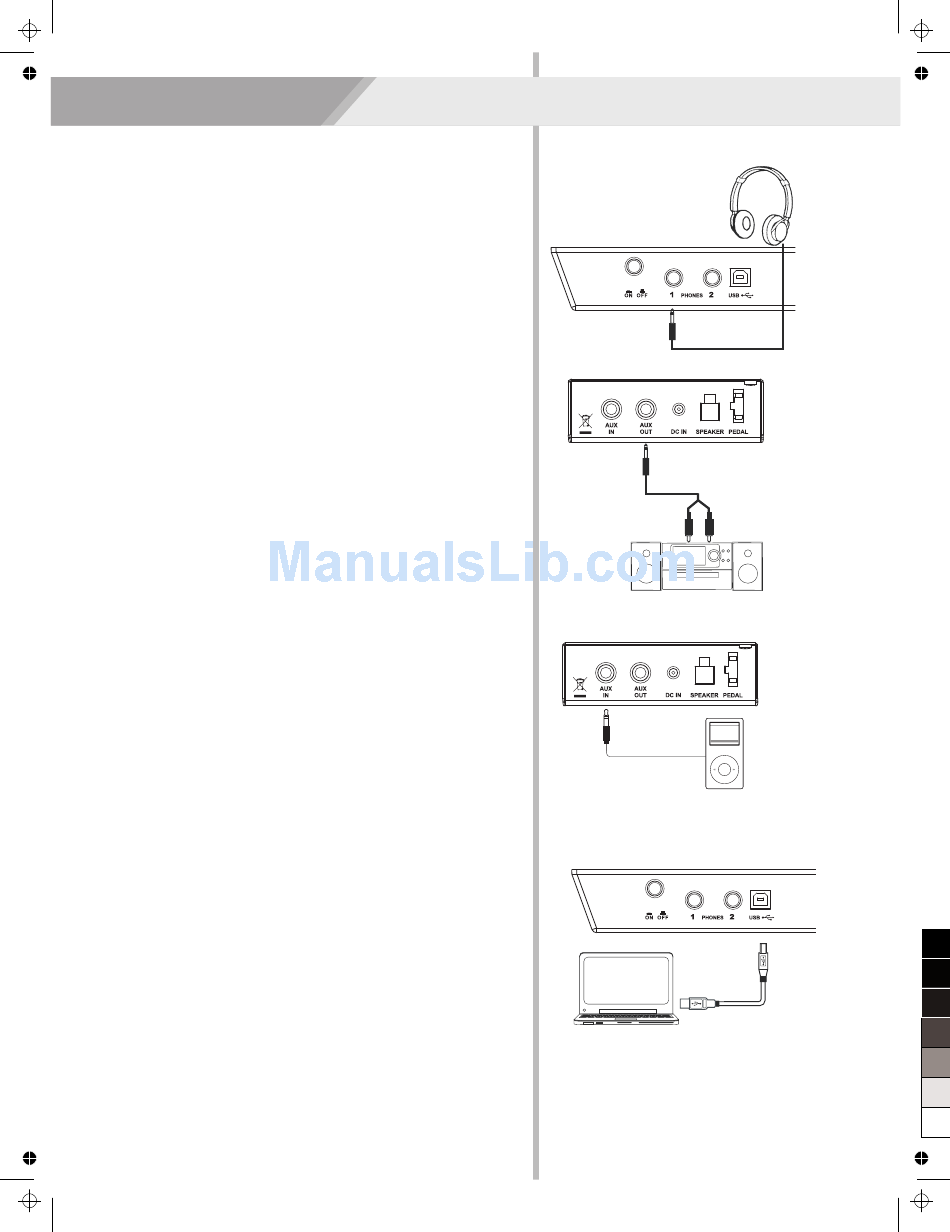

Connecting a pair of Headphones

A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing.
Jack1: when a pair of headphones is plugged into the jack 1,
internal stereo speaker system is automatically shut off. The
sound can only be heard from headphones.
Jack2: when a pair of headphones is plugged into the jack 2, the
sound can be heard from both headphones and speakers of the
instrument.
Note:
To avoid the risk of hearing loss when using headphones, please
do not play the piano with a high volume level for a long time.

Connecting an Audio Equipment

The rear-panel AUX.OUT jack delivers the output of the instrument
for connection to a keyboard amplifier, stereo sound system, a mixing
console, or tape recorder. Use an audio cord to plug into the AUX OUT
jack located on the rear panel then plug the other end of the cord into
AUX.IN of the amplifier.
Note:
To avoid damaging the speakers, please ensure that the volume
has been set to the minimum level before connecting the power
and other devices.

Connecting an MP3/CD Player

Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the piano signal, allowing you
to play along the music.

Connecting a Computer

The instrument receives and transmits MIDI messages via the
USB connector.
Connecting the MIDI IN /OUT to Computer via The MIDI/USB
converter.
Note:
If this product does not work correctly when connected to a USB 3.0
port, you will need to connect to a USB 2.0 port.
