Medeli DP10 Owner's Manual

Medeli digital piano owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIGITAL
PIANO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Medeli DP10

Summary of Contents for Medeli DP10

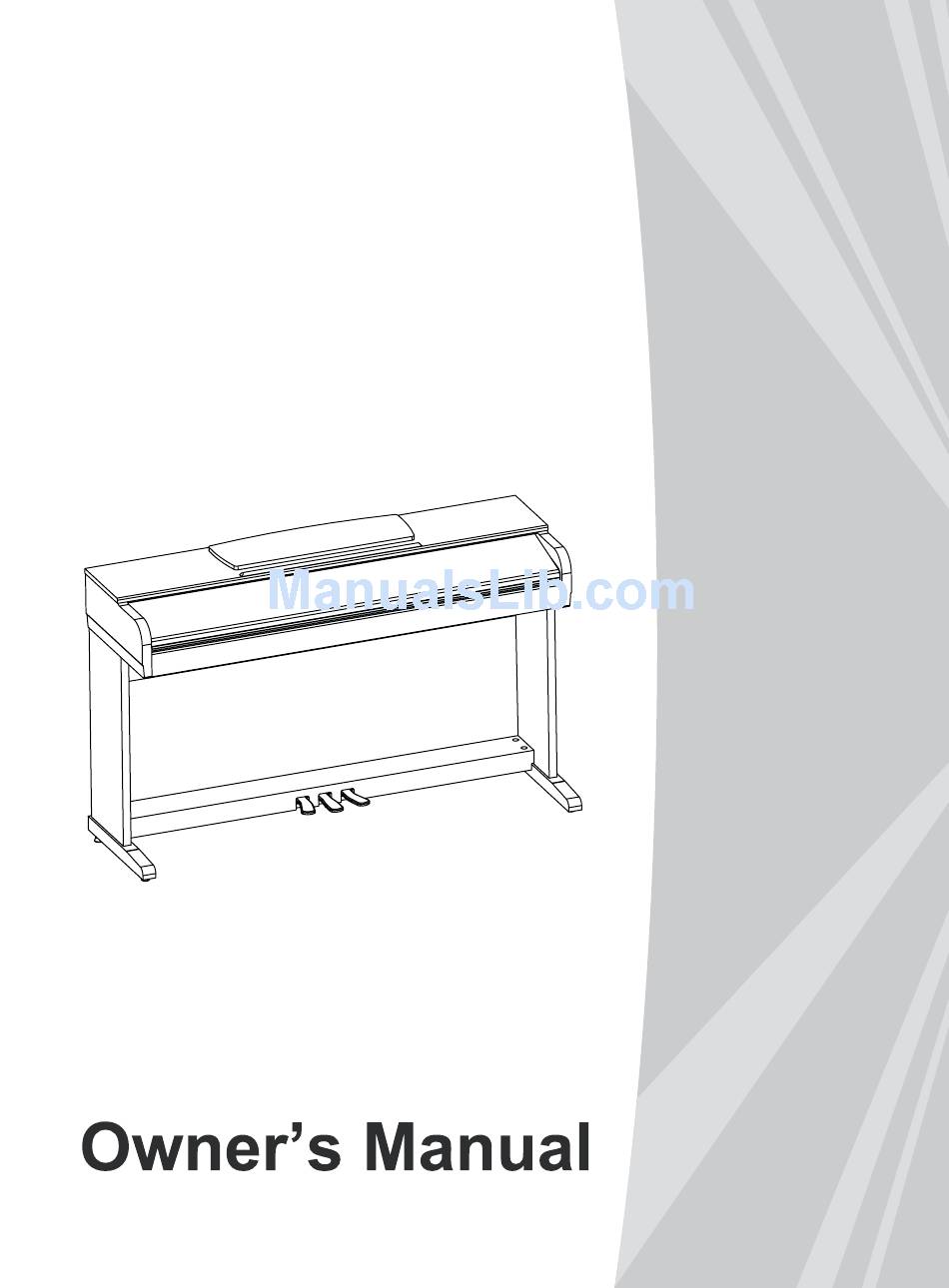

  • Page 1 DIGITAL PIANO...
  • Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    Contents Panel Description Front Panel...................................4 Rear Panel ..................................5 Setup Part List ..................................6 Setup Guide ..................................6 Power Supply ................................8 Connections Connecting a pair of Headphones ..........................Connecting an Audio Equipment ..........................Connecting an MP3/CD..............................9 Connecting a Computer ..............................Listening to the Demo song ...........................10 Adjusting the Volume ............................

  • Page 4: Panel Description

    Panel Description Front Panel Electric Piano 4. VOICE SELECT Key 1. POWER ON OFF Hold down the [FUNCTION] button and press the Turn the power ON or OFF. key to select a voice 2. MASTER VOLUME 5. TEMPO ADJUST Key Adjust the master volume Hold down the FUNCTION button and press the 3.

  • Page 5: Rear Panel

    Panel Description 6. METRONOME Key 8. CHORUS Key Hold down the [FUNCTION] button and press the Hold down the [FUNCTION] button and press the [ON/OFF] key to turn chorus effect ON or OFF. ON OFF key to turn the metronome ON or OFF. Hold down the FUNCTION button and press the Hold down the FUNCTION button and press the other key to select the chorus type.

  • Page 6: Setup

    Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Part List Piano Cabinet Before you proceeding to assemble the stand, get a Philip's Rear Board screwdriver (not supplied).
  • Page 7 Setup B. Fix the rear board [2] to the left and right side boards [4] & [5] with Screw1 [7] Place the piano cabinet [1] on the stand fix it with Hand Screw [6] Insert the pedal cable [10] into the proper socket of the cabinet [1]...

  • Page 8: Power Supply

    Setup Power Supply Please make sure that POWER ON/OFF switch of the instrument is set to OFF. Then move the MASTER VOLUME knob leftwards to set the minimum volume level. Connect the AC adaptor to the power supply jack. Plug the AC adaptor into an AC outlet. And when turning the power OFF, simply reverse the procedure please.

  • Page 9: Connections

    Connections Connecting a pair of Headphones A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. Jack1 : When a pair of headphones is plugged into the Jack 1, the Headphone Jack 1 sound can be heard from headphones and speakers of the instrument.

  • Page 10: Listening To The Demo Song

    Listening to the Demo song While holding down the FUNCTION button, press DEMO key to start the demo song playing. Press it again to stop playing. The keyboard would be disabled when the demo song is playing. Adjusting the Volume Move the VOLUME knob rightwards, the volume increases.

  • Page 11: Playing Two Voice Simultaneously

    Playing Voices Playing two Voice Simultaneously You can play two voices synchronously on the keyboard by selecting a dual voice. While holding down the FUNCTION button, press 2 keys Electric Piano simultaneously in voice selecting area. Press the first key to select the upper voice, press the second key to select the dual voice.

  • Page 12: Digital Effects

    Digital Effects While holding down the FUNCTION button, press the corresponding keys in effect setting area to select the voice effect type. Reverb Value: 0: OFF 1: Room 2: Small Hall 3: Large Hall 4: Stadium Chorus Value: 0: OFF 1: Light Chorus 2: Medium Chorus 3: Deep Chorus...

  • Page 13: Tempo

    Tempo While holding down the FUNCTION button, press corresponding keys in TEMPO selection area. You can change the tempo by input number or using tap tempo, or press tempo +/- keys to change current tempo. Notes: – 1. Press tempo and tempo keys simultaneously to set the tempo value back to the default (120).

  • Page 14: Troubleshooting

    Troubleshooting Possible Cause and Solution Problem This is normal and is no cause for alarm. The speakers produce a “pop” sound whenever the power is turned ON or OFF. Make sure the voice volumes are set at appropriate levels. No sound when the keyboard is played. Using a mobile phone in close proximity to the instrument When using a mobile phone, noise is produced.

  • Page 15: Midi Implementation List Chart

    MIDI Implementation List chart...
  • Page 16 DP10_G10...
