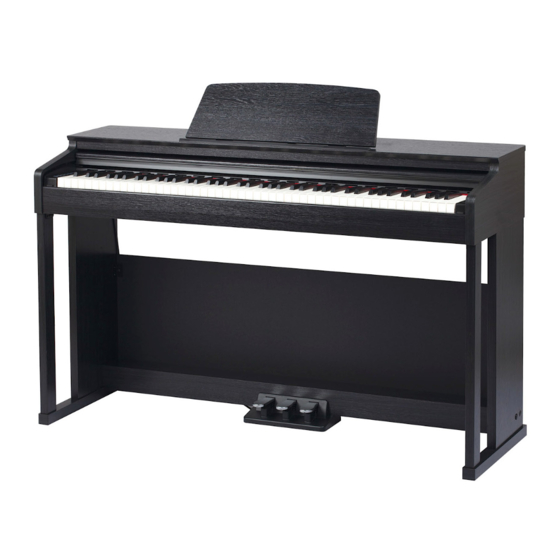

DIGITAL PIANO
Owner's Manual
C
M
Y
CM
MY
CY
CMY
K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP280K and is the answer not in the manual?

Questions and answers

Summary of Contents for Medeli DP280K

  • Page 1 aw_DP280K_manual_G02_171108.pdf 1 17/11/8 12:59 DIGITAL PIANO Owner’s Manual...
  • Page 2 aw_DP280K_manual_G02_171108.pdf 2 17/11/8 12:59 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.
  • Page 3: Table Of Contents

    aw_DP280K_manual_G02_171108.pdf 3 17/11/8 12:59 Contents Panel Description DSP Effect Front Panel................4 Reverb................16 Pedal.................4 Chorus................16 Rear Panel.................5 D.A.S. (Dynamic Acoustic System)........16 Setup Song Setup Guide...............6 Play the Songs..............17 Practice the Songs............17 Connections Connecting a pair of Headphones........9 Song Recording Connecting an Audio Equipment........9 Prepare Recording............18 Connecting an MP3/CD Player..........9 Start Recording..............18...
  • Page 4: Panel Description

    aw_DP280K_manual_G02_171108.pdf 4 17/11/8 12:59 Panel Description Front Panel METRO METRO PLAY PLAY DUAL DUAL LOWER LOWER SONG SONG START / STOP START / STOP FUNCTION FUNCTION 01 - 02 05 - 06 07 - 08 11 - 12 15 - 16 17 - 18 V-DEMO RES.
  • Page 5: Rear Panel

    aw_DP280K_manual_G02_171108.pdf 5 17/11/8 12:59 Panel Description VOLUME VOLUME 20 21 23 25 26 28 TUNE REVERB CHORUS R1-VOL L-VOL SPLIT MIDI OUT TUNE REVERB CHORUS R1-VOL L-VOL SPLIT MIDI OUT D.A.S. TRANSP. TOUCH METRO-VOL R2-VOL OCTAVE TRANSP. TOUCH BEEP METRO-VOL R2-VOL OCTAVE BEEP...
  • Page 6: Setup

    aw_DP280K_manual_G02_171108.pdf 6 17/11/8 12:59 Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Setup Guide To assemble the stand, you will need a Phillip's screwdriver (not supplied). Check that all the parts listed below are included before proceeding.
  • Page 7 aw_DP280K_manual_G02_171108.pdf 7 17/11/8 12:59 Setup A. Put the pedal box (4) in between the left and right leg components (2&3), use 4 pieces of screws (8) (2 on each side) to fix the legs onto the foot pedal unit, then cover the screw caps (10) on top (2 on each side) (Make sure the components are in the right direction before installing.).
  • Page 8 aw_DP280K_manual_G02_171108.pdf 8 17/11/8 12:59 Setup D. Connect the pedal cable to the pedal jack at the rear bottom of the piano. The setup is completed, now the piano is ready to connect to power supply.
  • Page 9: Connections

    aw_DP280K_manual_G02_171108.pdf 9 17/11/8 12:59 Connections Connecting a pair of Headphones Plug a pair of standard stereo headphones here for private practice or late-night playing. Jack 1: When headphones are connected, sound can be heard from the headphones and speakers. Jack 2: When headphones are connected, the internal speakers will be muted, and the sound can only be heard from the headphones.
  • Page 10: Quick Start

    aw_DP280K_manual_G02_171108.pdf 10 17/11/8 12:59 Quick Start Power Supply Before connecting to power supply, please set the [POWER] switch to “OFF” and set the master volume level to minimum. Connect the power adaptor to the DC IN jack on the rear panel. Plug the power adaptor into an appropriate AC outlet.
  • Page 11: Playing The Songs

    aw_DP280K_manual_G02_171108.pdf 11 17/11/8 12:59 Quick Start Playing the Songs SONG METRO The instrument features a variety of preset songs. Please refer to the PLAY Song List for details. DUAL Press the [SONG] button to enter Song mode. All songs start LOWER playing in a loop.
  • Page 12: Playing The Voices

    aw_DP280K_manual_G02_171108.pdf 12 17/11/8 12:59 Playing the Voices METRO PLAY DUAL The instrument features a variety of exceptionally realistic voices. LOWER Please refer to the Voice List for details. SONG Playing a Voice START / STOP METRO FUNCTION FUNCTION Press and hold [FUNCTION], then press one of the VOICE keys to PLAY VOLUME select a preset voice.
  • Page 13: Voice Volume

    aw_DP280K_manual_G02_171108.pdf 13 17/11/8 12:59 Playing the Voices METRO PLAY DUAL Split point LOWER The key that splits the keyboard into the left and right hand areas is SONG called "split point". The default split point is F#3 (34) , however, you can assign it to any other key.
  • Page 14: Transpose

    aw_DP280K_manual_G02_171108.pdf 14 17/11/8 12:59 Playing the Voices Transpose VOLUME The transpose function allows the overall pitch of the instrument to be transposed up or down by a maximum of one octave in semitone FUNCTION steps. Press and hold [FUNCTION], then press the key marked [TRANSP.] METRO V-DEMO RES.
  • Page 15: Metronome

    aw_DP280K_manual_G02_171108.pdf 15 17/11/8 12:59 Playing the Voices Metronome METRO PLAY The metronome provides a steady beat to help you practice at a VOLUME preset tempo. DUAL METRO LOWER Turn the metronome on or off. SONG Press the [METRO] button to turn the metronome on or off. PLAY START / STOP FUNCTION...
  • Page 16: Dsp Effect

    aw_DP280K_manual_G02_171108.pdf 16 17/11/8 12:59 DSP Effect The DSP effects will add ambiance and depth to your performance in a variety of ways. Reverb Press and hold [FUNCTION], then press the key marked [REVERB] to edit the reverb setting. FUNCTION In edit mode, press and hold [FUNCTION], then use the keys marked SETTING [<]/[>] to change the reverb type.
  • Page 17: Song

    aw_DP280K_manual_G02_171108.pdf 17 17/11/8 12:59 Song The instrument features a variety of preset songs. Please refer to the METRO Song List for details. PLAY Play the Songs DUAL LOWER SONG Play all songs in a loop. SONG Press the [SONG] button to enter Song mode. The button indicator START / STOP will light up.
  • Page 18: Song Recording

    aw_DP280K_manual_G02_171108.pdf 18 17/11/8 12:59 Song Recording You can record and save your keyboard performance as a user song on the instrument, and then play it back. Prepare Recording Before recording starts, you need to select a user song to which the METRO recording will be saved.
  • Page 19: Duet

    aw_DP280K_manual_G02_171108.pdf 19 17/11/8 12:59 Duet METRO The Duet function will enrich your performance. Simply play a chord with PLAY METRO your left hand, and the instrument will play a preset duet pattern and DUAL PLAY produce a beautiful melody. LOWER DUAL SONG LOWER...
  • Page 20: Midi Out Channel

    aw_DP280K_manual_G02_171108.pdf 20 17/11/8 12:59 Twinova Set the octave for Twinova. This function will shift the pitch of the entire keyboard up or down by one octave. This function is available only in Twinova mode. The octave VOLUME setting will be reset to default when you exit Twinova mode. FUNCTION Press and hold [FUNCTION], then press the key marked [OCTAVE] to edit the octave setting.
  • Page 21: Troubleshooting

    aw_DP280K_manual_G02_171108.pdf 21 17/11/8 12:59 Troubleshooting Problem Possible Cause and Solution The speakers produce a pop sound This is normal and no cause for alarm. whenever the power is turned ON/OFF. VOLUME Speakers do not produce sound when the Check if the master volume is set too low or if headphones are plugged keyboard is played.
  • Page 22: Voice List

    aw_DP280K_manual_G02_171108.pdf 22 17/11/8 12:59 Voice List Voice Name JazzOrgan GrandPiano Percussive Organ Rock Organ GrandPiano 2 PipeOrgan Honky Tonk Piano E.Piano 1 Accordion E.Piano 2 Harmonica Nylon Guitar Harpsichord Soprano Sax Clavi Music Box String Ensembles Vibraphone Flute Drawbar Organ Song List Song Name Robot Doll...
  • Page 23: Midi Implementation Chart

    aw_DP280K_manual_G02_171108.pdf 23 17/11/8 12:59 MIDI Implementation Chart 1–16ch 1–16ch True...
  • Page 24 aw_DP280K_manual_G02_171108.pdf 24 17/11/8 12:59 DP280K_G02...
