Medeli UP81 Owner's Manual

Medeli UP81 Owner's Manual

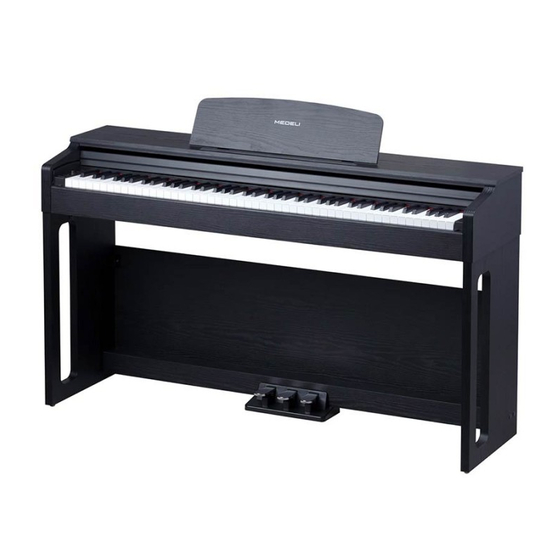

Upright piano

Advertisement

Quick Links

Part List

1
2
3
4
5
1
Screws PA6 x 60 (4 pcs)
2
Screws caps (4 pcs)
3
Screws BM6 x 12 (2 pcs)
Power Adapter
Screws PA4 x 15 (4 pcs)
4
5
Screws BM6 x 20 (4 pcs)
3
1 2
1
2
Step 1

Connections

1. PHONE Jacks

For connecting to headphones.
When headphones are connected to Jack 1, the sound can be heard from the headphones
and the speakers.
When headphones are connected to Jack 2, the internal speakers will be muted. The sound
can only be heard from the headphones.

2. USB Jack

Jack 1
For connecting to a computer or a mobile device via cable. An additional adapter may be
Jack 2
1
needed to connect to mobile devices.
This port supports transmitting/receiving both MIDI data and digital audio data. This
instrument can be used to play back music played on the external device, or use the
external device to record the performance from the instrument.

3. PEDALS Jack

For connecting the included unit pedal.

4. LINE OUT Jack

For connecting to the INPUT jack of external audio equipment such as a stereo sound system.

5. AUX IN Jack

For connecting to the OUTPUT jack of external audio source such as an MP3 player.
2
3
4
5
6

6. DC IN Jack

For connecting the specified power adapter.
Note:
Do not listen with the headphones at high volume for long periods of time. Doing so may harm
your ear.

Setup

3
4
4
4
4
5
Step 2
Step 3
5

Sound List

1
Grand Piano
2
Grand Piano 2
3
Ele. Piano
4
Ele. Piano 2
5
Harpsichord
6
Clavinet
7
Vibraphone
8
Marimba
9
Drawbar Organ
10
Percussive Organ
11
Church Organ
12
Church Organ 2
13
Reed Organ
14
Rock Organ
15
Accordion
16
Acoustic Guitar (Nylon)
17
Acoustic Guitar (Steel)
18
String Ensembles
19
Synth Strings
20
Synth Strings 2
UPRIGHT PIANO
Owner's Manual

Song List

1
Prelude and Fugue No.1 in C Major
2
Minuet in G Major (BWV Anh.114)
3
Fur Elise
4
Piano Sonate No.15 K.545 1st mov.
5
Gavotte
6
Minute Waltz, Op.64 No.1
7
Polonaise No.6 in A-Flat Major Op.53
8
Etude Op.25 No.1 in A-Flat Major
9
Salut d'Amour
10
Maple Leaf Rag

Demo

Fantaisie-Impromptu
UP81_OM04EN
