Summary of Contents for Medeli CDP6000

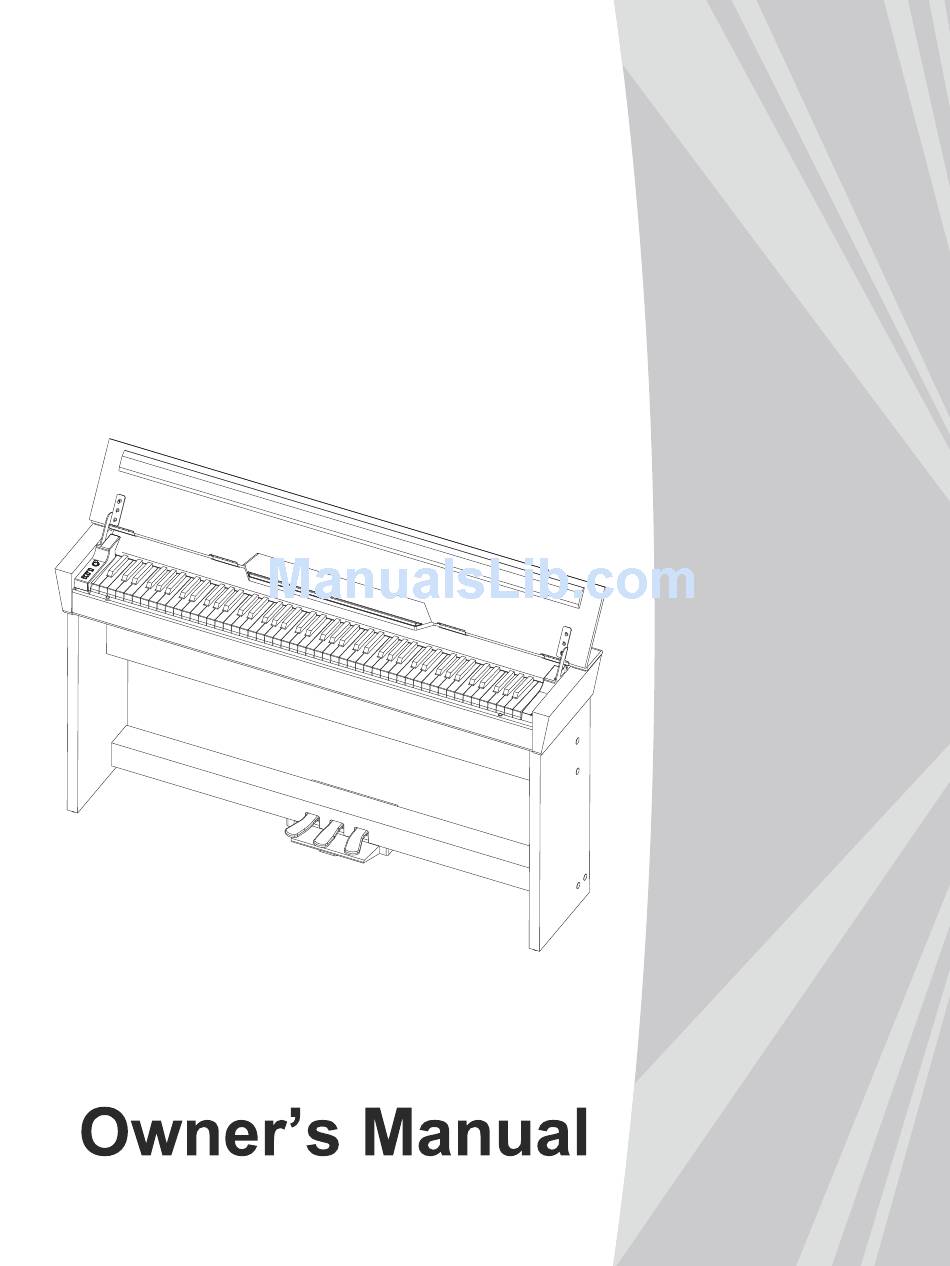

- Page 1 DIGITAL PIANO...
- Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Panel Description .........................4 Front Panel............................4 Rear Panel.............................5 Setup.............................6 Part List............................6 Setup Guide...........................6 Power Supply..........................8 Connections..........................9 Connecting a pair of Headphones....................9 Connecting an Audio Equipment....................9 Connecting an MP3/CD Player......................9 Connecting a Computer.........................9 Adjusting the Volume........................10 Listening to the Song........................10 Playing Demo song........................10 Playing Song..........................10 Practice Song..........................10 Playing Voices ..........................11... -
Page 4: Panel Description
Panel Description Front Panel VOICE SONG TEMPO Piano EPiano Harpsic MBox Marimba PercOr ChurOr2 RockOr Harmnic StStr2 ChoAah SopSax PanFl Piano2 Epiano2 Clavi Vibraph DrawOr ChurOr ReedOr Acordio StStr SynStr SweetTp TenoSax Strings Lower VOLUME FUNCTION SONG DEMO 1. MASTER VOLUME 5. -
Page 5: Rear Panel
Panel Description METRONOME REVERB CHORUS TOUCH TRANSPOSE TUNE VOICE BEEP DEMO VOCAL 14. METRONOME Key 18. EQ Key Hold down the [FUNCTION] button and press the Hold down the [FUNCTION] button and press the [ON/OFF] key to turn the metronome ON or OFF. key to select the EQ type. -
Page 6: Setup
Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Part List Before you proceeding to assemble the stand, get a Philip's screwdriver (not supplied). Piano body Make sure you have the following parts, which are supplied into Speaker box line... - Page 7 Setup “+” STEP 2: With 4 pcs Ф6X45 screws as shown fixed ST side board left/right, and cover screw cap. “+” STEP 3: With 4 pcs Ф6X45 screws as shown fixed speaker box and feet plate and cover screw cap. STEP 4: With 2 star hand screws as shown fixed piano body and piano foot part.
-
Page 8: Power Supply
Setup STEP 5: According to the labeling inserted foot line and speakers line, installation is complete. Power Supply Please make sure that POWER ON/OFF switch of the instrument is set to OFF. Then turn the [VOLUME] knob to the minimum volume level. -
Page 9: Connections
Connections Connecting a pair of Headphones A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. Jack1: When a pair of headphones is plugged into Jack 1, the internal stereo speaker system is automatically shut off . The sound can be heard from headphones. -
Page 10: Adjusting The Volume
Adjusting the Volume Rotate the [VOLUME] knob rightwards, the volume increases and vice verse. VOLUME Listening to the Song Playing Demo song While holding down the [FUNCTION] button, press [L/R] button to FUNCTION start the demo song playing. And all the LEDs on the panel will flash simultaneously. -
Page 11: Playing Voices
Playing Voices Selecting Voice The instrument features 26 exceptionally realistic voices for you VOICE to choose. Please refer to Voice List. Piano EPiano Harpsic MBox Marimba PercOr ChurOr2 RockOr Harmnic StStr2 ChoAah SopSax PanFl Piano2 Epiano2 Clavi Vibraph DrawOr ChurOr ReedOr Acordio StStr... -
Page 12: Digital Effects
Digital Effects Reverb and Chorus Effect While holding down the [FUNCTION] button, press the corresponding REVERB CHORUS keys in REVERB and CHORUS effect setting area to select the voice effect type. REVERB CHORUS Reverb Value: Chorus Value: 0: OFF 0: OFF 1: Room 1: Light Chorus 2: Small Hall... -
Page 13: Transpose
Transpose While holding down the [FUNCTION]button, press transpose +/- key to adjust the transpose value from -12 to 12 semitones. TRANSPOSE TUNE BEEP VOICE DEMO Note: Press [transpose +] and [transpose –] keys simultaneously to set the transpose value back to the default (0 semitone). TRANSPOSE TUNE VOICE... -
Page 14: Troubleshooting
Troubleshooting Possible Cause and Solution Problem This is normal and is no cause for alarm. The speakers produce a “pop” sound whenever the power is turned ON or OFF. Make sure the voice volumes are set at appropriate levels. No sound when the keyboard is played. Using a mobile phone in close proximity to the instrument When using a mobile phone, noise is produced. -
Page 15: Appendices
Appendices Voice List English Name English Name English Name Grand Piano Percussive Organ Choir Aahs Grand Piano 2 Church Organ Sweet Trumpet Ele. Piano Church Organ 2 Soprano Sax Ele. Piano 2 Reed Organ Tenor Sax Harpsichord Rock Organ Pan flute Clavichord Accordion Strings... -
Page 16: Midi Implementation List
MIDI Implementation List chart CDP6000_G07...
