Summary of Contents for Waldorf GP8910GE
-
Page 1: Electric Oven

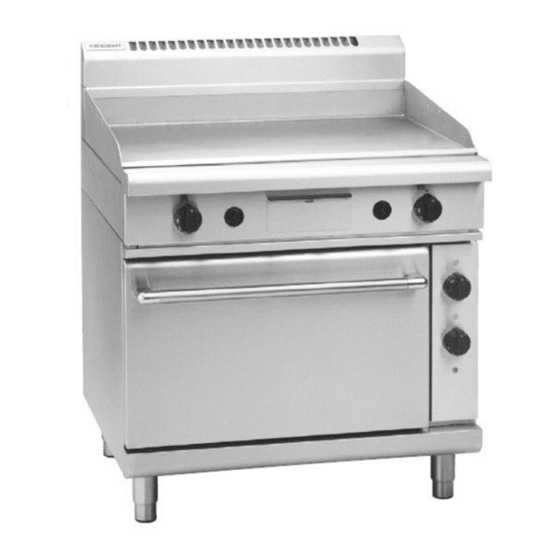

I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Griddle Range Electric Oven GP8910GE GPL8910GE GP8910GEC GPL8910GEC GP8121GE... - Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal 67 Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
-
Page 3: Table Of Contents
Contents Waldorf Gas Griddle Electric Oven Ranges GP[L]8910GE Gas Griddle Range Electric Static Oven - 900 mm. GP[L]8910GEC Gas Griddle Range Electric Convection Oven - 900 mm. GP[L]8121GE Gas Griddle Range Electric Static Oven - 1200 mm. GP[L]8121GEC Gas Griddle Range Electric Convection Oven - 1200 mm. -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS GRIDDLE RANGE ELECTRIC OVEN , and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specifications
Specifications Model Numbers Covered in this Specification GP[1]8910GE Gas Griddle Range Static Electric Oven - 900mm. GP[1]8910GEC Gas Griddle Range Convection Electric Oven - 900mm. GP[1]8121GE Gas Griddle Range Static Electric Oven - 1200mm. GP[1]8121GEC Gas Griddle Range Convection Electric Oven - 1200mm. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia / New Zealand Only: Natural Gas LP Gas (Propane) GP8910GE/GEC GP8121GE/GEC GP8910GE/GEC GP8121GE/GEC Input Rating 80 MJ/hr 108 MJ/hr 80 MJ/hr 108 MJ/hr (N.H.G.C.) (75,825 BTU) (102,364 BTU) (75,825 BTU) (102,364 BTU) 1.13 - 3.40 kPa 2.75 - 4.50 kPa... -
Page 7: Electrical Supply Requirements
IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD GP8910GE / GEC Electrical supply connection point is located at the rear of the appliance, approximately 80 mm from the right hand side and 466 mm from the rear and 150 mm from the floor. -
Page 8: Dimensions
Dimensions GP[L]8910GE / GEC GP[L]8121GE / GEC... -
Page 9: Installation
Waldorf Gas Griddle Range Electric Oven are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 10: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right Hand Side 50mm Rear 50mm Assembly AUTIO N • This appliance is for professional use and is to be used by qualified persons only. -
Page 11: Gas Connection
Installation Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN QUALIFIED PERSON. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available. The following checks should therefore be made before installation:- a. -
Page 12: Electrical Connection
Installation Electrical Connection NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN QUALIFIED PERSON. WARNING: HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD Each appliance should be connected to an adequately protected power supply and isolation switch mounted adjacent to, but not behind the appliance. -
Page 13: Commissioning
Installation Commissioning Before leaving the new installation; Check the following functions in accordance with the operating instructions specified in the ‘Operation’ section of this manual. • Light the Griddle Pilot Burner. • Light the Griddle Main Burner. • Check the Griddle Low Fire Operation. •... -
Page 14: Operation
/ operator. Waldorf Gas Griddle Range Electric Oven have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 15: Lighting The Griddle - Pilots
Operation Lighting the Griddle - Pilots WARNING: 235°C URFACE TEMPERATURE OF THE GRIDDLE PLATE CAN REACH OVER WHEN THE APPLIANCE IS OPERATED AT FULL SETTING These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. -
Page 16: Turning 'Off' The Griddle Main Burner / Pilots
Operation Turning 'Off' the Griddle Main Burner / Pilot Turn the gas control knob clockwise to the pilot position. The main burner will extinguish and the pilot burner will remain alight. To turn 'OFF' the appliance completely, turn the gas control knob fully clockwise to the 'O' position, the pilot burner will extinguish. -
Page 17: Cleaning And Maintenance
Cleaning and Maintenance General AUTIO N Always turn off the gas and electrical supply at the mains before cleaning. This appliance is not water proof. Do Not use water jet spray to clean interior or exterior of this appliance. Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on the surface or on the griddle plate will hinder the transfer of heat from the cooking surface to the food. -
Page 18: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease drawer should be checked and emptied frequently to prevent overflow and spillage. Remove the grease drawer while still warm so that the grease is in a liquid state. Empty any grease from the drawer and wash thoroughly in the same manner as any cooking utensil. Clean the Control Panel with a damp cloth lightly moistened with a solution of mild detergent and water. -
Page 19: Periodic Maintenance
Cleaning and Maintenance Griddle - Chrome Plate Stainless Steel Surfaces a. Clean the exterior surfaces of the range with hot water, a mild detergent solution and a soft AUTIO N scrubbing brush. Note that the gas control knobs are a push fit onto the gas control valve spindles and can be removed to allow cleaning of the front control panel. -
Page 20: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 21: Wiring Schematics
Wiring Schematics GP8910GE and GP8121GE... - Page 22 Wiring Schematics Wiring Diagram: GP8910GE GP8121GE...
- Page 23 Wiring Schematics GP8910GEC and GP8121GEC...
- Page 24 Wiring Schematics Wiring Diagram: GP8910GEC GP8121GEC...
-
Page 25: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the appliance is isolated from the main gas and electricity supply before commencing servicing. NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. •... - Page 26 Gas Conversion and Specifications Refit the front control panel and tighten the 2 screws on the underside to secure the panel in place. Refit the control knobs to the front control panel. The control knobs are a push fit onto the shafts of the gas control valves.
-
Page 27: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 11 Ensure that the gas supply is turned ‘OFF’... - Page 28 Gas Conversion and Specifications Commissioning Before leaving the converted installation; Check all gas connections for leakages using soapy water or other gas detecting equipment. WARNING: NAKED FLAME O NOT USE A TO CHECK FOR GAS LEAKAGES Check the following functions in accordance with the operating instructions specified in the ‘Operation’...
-
Page 29: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Only Natural Gas LP Gas (Propane) GP8910GE/GEC GP8121GE/GEC GP8910GE/GEC GP8121GE/GEC Main Burner 3.00mm 2.85mm 1.80mm 1.70mm Pilot Burner 0.41 0.25 Griddle Low Fire Adjustment 1 full turn counter clockwise from the Fully ‘IN’ position High Fire Adjustment Maximum Flow Screw. -
Page 30: Replacement Parts List
229885 Thermocouple Interruped - Leaded (If Overtemp Fitted). 019218 Thermocouple (If no Overtemp Fitted). 032300 Main Injector (Nat Gas) 3.00mm (GP8910GE / GEC). 032285 Main Injector (Nat Gas) 2.85mm (GP8121GE / GEC). 032180 Main Injector (LPG) 1.80mm (GP8910GE / GEC). - Page 31 228804 1200mm Plinth Kit (1200mm Range). Gas Conversion Kits Gas Type to Convert to: Models Australia / New Zealand Only UK Only Nat. Gas Nat. Gas GP8910GE / GEC 232033 232032 232033 232032 GP8121GE / GEC 232037 232036 232037 232036...
