Waldorf RN8613GE Technical Data Sheet

Technical data sheet for
GAS RANGE
ELECTRIC STATIC OVEN 900mm
RN8610GE, RN8613GE, RN8616GE, RN8619GE

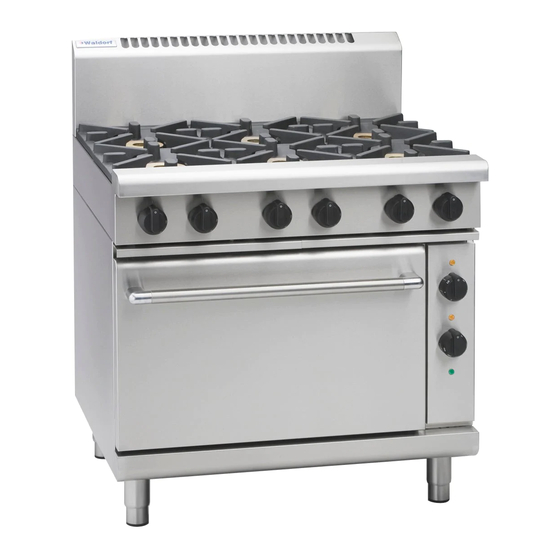

RN8610GE
O verall Co ns tru c tio n
• Galvanized steel chassis
• Welded hob with 1.5mm 304 stainless steel bull nose
• Splashback and hob sides 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel
with adjustable feet

Cooktop

• Cast iron 28MJ/hr open burners with forged brass cap
• Vitreous enamelled cast iron potstands
• Vitreous enamelled open burner spill covers
• Cast iron simmer plates (optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled spill trays
• Aluminised steel internal construction
Griddle sections are standard on RH side. Available on LH side or
centre to order or by conversion.

Oven

• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 4 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Cast iron even heat oven sole plate
• 6.5kW heating elements
• Welded frame drop down door with heavy-duty spring
hinge system
• 0.9mm 304 stainless steel door outer
• 1.0mm press formed vitreous enamelled door inner
• 50mm high density fibreglass insulated
• Stay cool stainless steel door handle with cast metal handle mounts
• Supplied with two chrome wire oven racks

Heavy-duty construction

28 MJ/hr open burners
Flame failure standard
Pilot burners optional
300mm, 600mm, and 900mm griddle plate options
Optional simmer plates
GN 2/1 6.5kW electric static oven
Drop down door
Stainless steel exterior
Easy clean
Easy service
Fully modular
Co n tro ls
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob
Cooktop
• Variable high to low controls to open burners
• Open burners flame failure standard with pilot burners optional
• Variable high to low controls to griddles
• Griddles standard with pilot, flame failure and piezo ignition
Oven
• Separate temperature and top heat power regulation controls
• 50-320˚C thermostatic control
• Lo-Hi top heat control
• Indicator lights for power and heating
Cl eaning an d Ser v icing
• All models with easy clean stainless steel external finish
• Lift off burners heads and vitreous enamelled burner spill covers
• Vitreous enamelled spill trays under open burner and
griddle sections
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• Door hinge spring adjustable on unit (door outer removed)
• Door disengages for lift off removal and increased service access
• All parts front accessible from installed position
• Access to all parts from front of unit
