Laser alignment (Fig.10)
This digital level contains a laser diode located inside the left endcap
of the level. It provides a bright 635-665 nanometer beam with a useful
visibility that extends up to 50m indoors or outdoors (This range is only
applicable at night or dark environment.)
• To activate the laser dot, press in the Laser ON/OFF button located
on the right endcap of the level
• The center of the laser beam is 30mm above the bottom (working)
surface of the level.
• Remember to account for this when doing layouts and taking mea-
surements.
• Level the work surface, and the laser will project the level up to 50m
away to enable you to level large areas.
• The laser projects a round dot on the targeted surface. The dot size
and shape may change slightly with distance, temperature or target
surface material. The point to use is the center of the dot pattern.
Operation with tripod (Figs.11,12 and 13)
This level can be used with a tripod to project a beam for up to 50m away. This feature is perfect for home improvement
projects such as aligning pictures, chair rails and other wall fixtures, plumbing runs, and many other uses.
• Adjust the tripod to true level, using the bubble vial on the base of the tripod.
• Screw the level to the tripod using the 1/4-in. threaded hole located in the center of the working surface of the level
(see Fig. 11).
• Adjust the height of the laser line you want to project.
• Make any final adjustments to tripod and level to find the true level point. This will be
at 0.00° on the LCD display screen and, if activated, the beeper will beep.

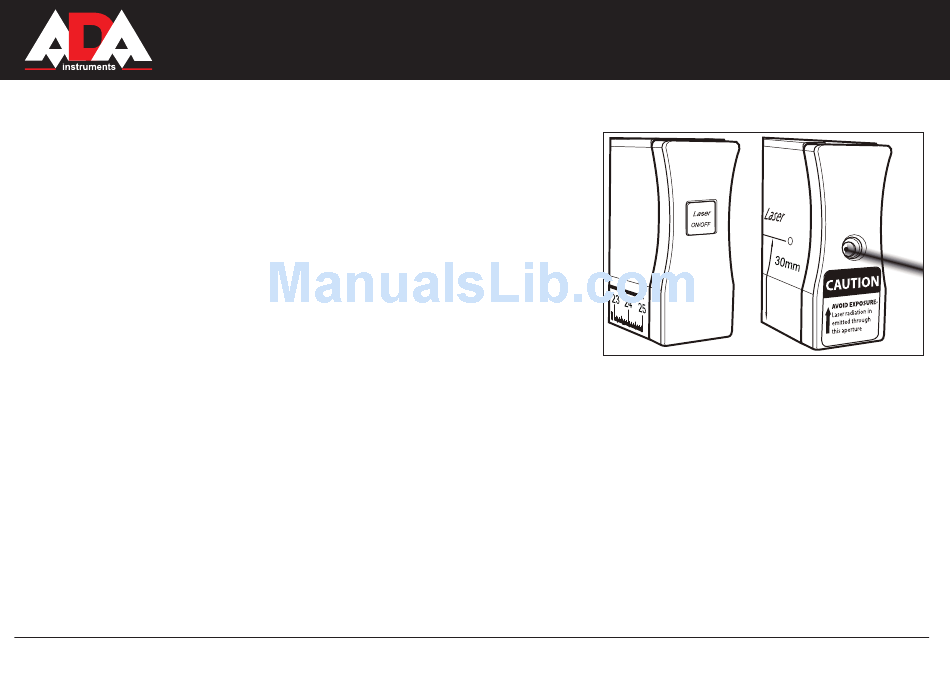

Fig.10
14
