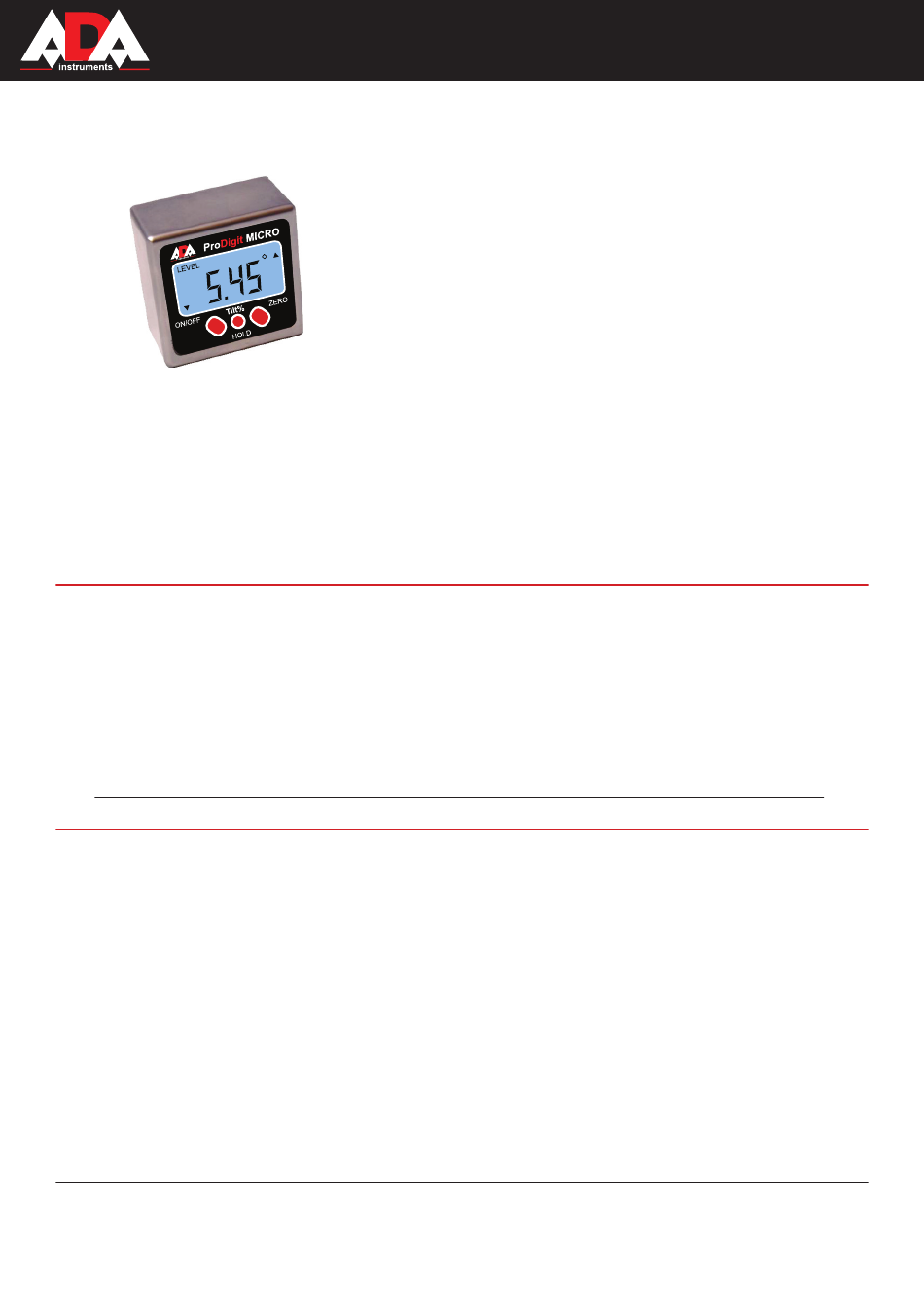

ADA INSTRUMENTS ProDigit MICRO Operating Manual

1. Product Features

- Aluminum alloy enclosure (light weight and durable)
- Relative/absolute measurement interc hange at any position
- With 3 built-in magnets on measuring surface
- Slope measurement in % and °
- Power-off automatically in 5 minutes
- Portable size, convenient to co-work with other measuring tools

2. Technical Parameters

1. Measuring range: 4x90°
2. Resolution: 0.05°
3. Accuracy: ±0.2°
WARRANTY DOESN'T EXTEND TO FOLLOWING CASES:
1. If the standard or serial product number will be changed, erased, removed or wil be unreadable.
2. Periodic maintenance, repair or changing parts as a result of their normal runout.
3. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative
written agreement of the expert provider.
4. Service by anyone other than an authorized service center.
5. Damage to products or parts caused by misuse, including, without limitation, misapplication or nrgligence of the terms of service instruction.
6. Power supply units, chargers, accessories, wearing parts.
7. Products, damaged from mishandling, faulty adjustment, maintenance with low-quality and non-standard materials, presence of any liquids and foreign objects inside the product.
8. Acts of God and/or actions of third persons.
9. In case of unwarranted repair till the end of warranty period because of damages during the operation of the product, it's transportation and storing, warranty doesn't resume.
For more information you can visit our website
Name and model of the product
Serial number
Name of commercial organization ________________stamp of commercial organization
Warranty period for the instrument explotation is 24 months after the date of original retail purchase.
During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects.
Warranty is valid only with original warranty card, fully and clear filled (stamp or mark of thr seller is obligatory).
Technical examination of instruments for fault identification which is under the warranty, is made only in the authorized service center.
In no event shall manufacturer be liable before the client for direct or consewuential damages, loss of profit or any other damage which occur in the
result of the instrument outage.
The product is received in the state of operability, without any visible damages, in full completeness. It is tested in my presence. I have no complaints
to the product quality. I am familiar with the conditions of qarranty service and i agree.
purchaser signature _______________________________
Operating manual

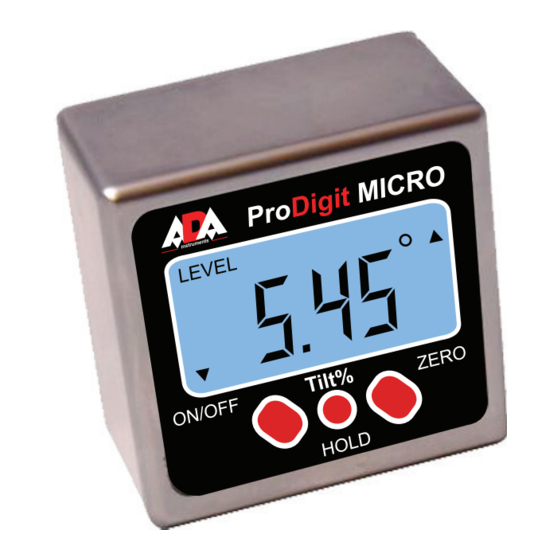

INCLINOMETER ProDigit MICRO
WWW.ADAINSTRUMENTS.COM
WARRANTY CARD
___________________________________________
________________date of sale__________________
Before operating you should read service instruction!
If you have any questions about the warranty service
and technical support contact seller of this product
ProDigit
4. Battery: 2xAAA battery
5. Working temperature: 0°C ~40°C
6. Dimension: 57*57*30.5 mm
7. Packing dimensions: 93*82*40 mm
8. With 3 built-in magnets, with diameter 10 mm on measuring surface
9. N. Weight: 0.13kg

3. Operating Instructions:

1. Press the «ON/OFF» button, it turns on, and the LCD displays absolute horizon-
tal angle. Press «ON/OFF» button again, it turns off.
2. Measurement Initially displays 0.0° on the LCD at the beginning. If you lift left
side of the instrument you will see arrow «▲» on the left side of the display. On
the right side of the display you will see arrow «▼» . It means the left side is higher
and right side is lower.
3. Put the instrument on the horizontal stand, and press the «ZERO» button, the
value returns to zero, and the read-out is the angle value measured angle value
relatively to the horizontal stand.
4. Press «Hold/Tilt%» to hold value on the display. To continue angle measurement
press Hold/Tilt% button again.
5. Press «Hold/Tilt%» button for 2 sec to measure slope in %. To make angle mea-
surement in degrees, press and hold «Hold/Tilt%» button for 2 sec.
6. The magnets at the bottom allows the instrument to be attached onto iron ma-
terial measurement object. Press the «ZERO» button, reset the value to proceed
relative measurement. Press button On/Off to switch off the instrument.

4. Application:

Control and measurement of slope of any surface. It is used in wood processing
industry (especially in furniture manufacturing industry) for wood angle accurate
cutting; auto repair industry for tiring assembling angle accurate controlling; in ma-
chining industry for machine tool working angle accurate positioning; in woodwork;
when setting guides for gypsum board partitions.
