Martin MAC 2000 Profile User Manual page 28

DMX channel
8-bit
9
-
10
11
-
28
16-bit Value
0 - 255
9
0 - 2
3 - 127
128 - 252
253 - 255
10
0 - 255
0 - 9
10 - 14
15 - 19
20 - 24
25 - 29
30 - 34
35 - 39
40 - 44
45 - 49
50 - 54
55 - 59
11
60 - 74
75 - 89
90 - 104
105 - 119
120 - 134
135 - 149
150 - 164
165 - 179
180 - 194
195 - 209
210 - 232
233 - 255
0 - 255
12
0 - 2
3 - 127
128 - 252
253 - 255
13
0 - 255

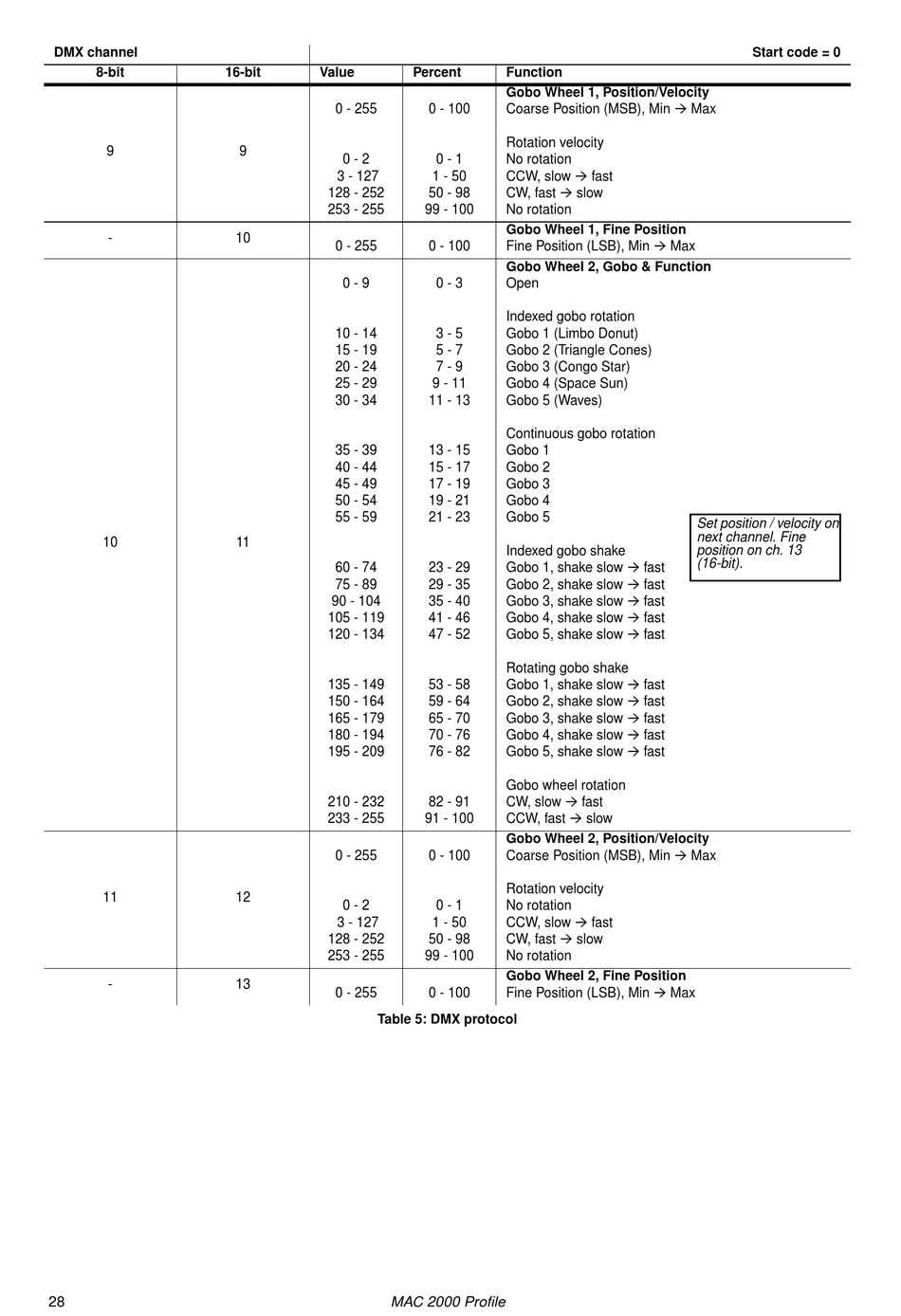

Table 5: DMX protocol
MAC 2000 Profile
Percent Function
Gobo Wheel 1, Position/Velocity
Coarse Position (MSB), Min ! Max
0 - 100
Rotation velocity
0 - 1 No rotation
CCW, slow ! fast
1 - 50
CW, fast ! slow
50 - 98
99 - 100 No rotation
Gobo Wheel 1, Fine Position
Fine Position (LSB), Min ! Max
0 - 100
Gobo Wheel 2, Gobo & Function
0 - 3 Open
Indexed gobo rotation
3 - 5 Gobo 1 (Limbo Donut)
5 - 7 Gobo 2 (Triangle Cones)
7 - 9 Gobo 3 (Congo Star)
9 - 11 Gobo 4 (Space Sun)
11 - 13 Gobo 5 (Waves)
Continuous gobo rotation
13 - 15 Gobo 1
15 - 17 Gobo 2
17 - 19 Gobo 3
19 - 21 Gobo 4
21 - 23 Gobo 5
Indexed gobo shake
Gobo 1, shake slow ! fast
23 - 29
Gobo 2, shake slow ! fast
29 - 35
Gobo 3, shake slow ! fast
35 - 40
Gobo 4, shake slow ! fast
41 - 46
Gobo 5, shake slow ! fast
47 - 52
Rotating gobo shake
Gobo 1, shake slow ! fast
53 - 58
Gobo 2, shake slow ! fast
59 - 64
Gobo 3, shake slow ! fast
65 - 70
Gobo 4, shake slow ! fast
70 - 76
Gobo 5, shake slow ! fast
76 - 82
Gobo wheel rotation
CW, slow ! fast
82 - 91
CCW, fast ! slow
91 - 100
Gobo Wheel 2, Position/Velocity
Coarse Position (MSB), Min ! Max
0 - 100
Rotation velocity
0 - 1 No rotation
CCW, slow ! fast
1 - 50
CW, fast ! slow
50 - 98
99 - 100 No rotation
Gobo Wheel 2, Fine Position
Fine Position (LSB), Min ! Max
0 - 100
Start code = 0
Set position / velocity on
next channel. Fine
position on ch. 13
(16-bit).
