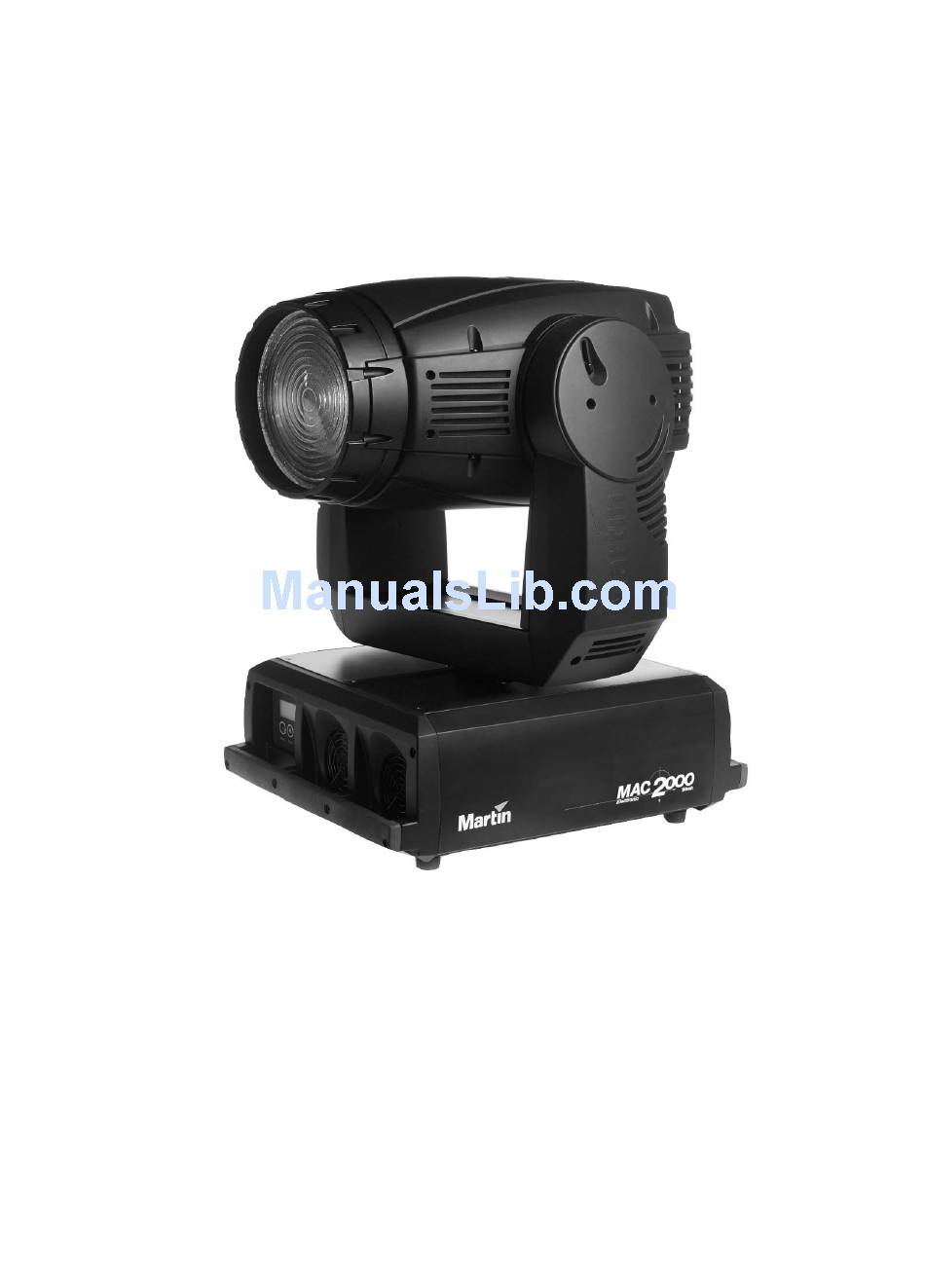

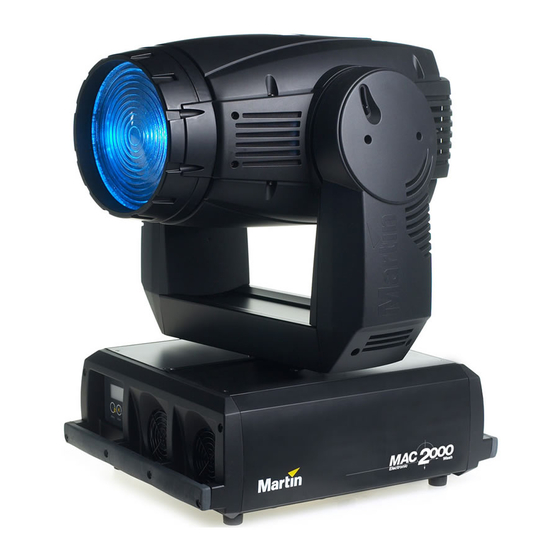

  • Page 1 MAC 2000 Wash user manual...
  • Page 2 270° 270° © 2001-2002 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000114 Rev. C...

  • Page 3: Table Of Contents

    MAC 2000 Wash safety information ........

  • Page 4: Introduction

    The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC lens and a super-wide-angle lens. A motorized zoom provides a beam angle ranges of 11° through to 40° (in the standard Fresnel configuration), 12°...
  • Page 5 P R O T E C T I O N F R O M I N J U R Y D U E T O F A L L S • Do not lift or carry the fixture alone. • When suspending the fixture, verify that the structure can hold at least 10 times the weight of all installed devices. •...

  • Page 6: Transportation

    RANSPORTATION Important! Release the transport locks before operating the fixture. Included items The MAC 2000 Wash is shipped in a 1 or 2 unit flight case that contains the following items. • User manual • 2 x 20 A main fuses (for use with 100-130 V local power supply) •...

  • Page 7: Double Flight Case

    Double flight case Unpacking 1 Open the flight case and pull the drawer all the way out. 2 Release the head (tilt) transport lock. 3 Install rigging hardware as described on page 12. 4 With one person on each side, lift the fixture out of the flight case.

  • Page 8: Lamp

    About the HMI 1200 W/S lamp The MAC 2000 Wash comes with a double-ended OSRAM HMI 1200 W/S discharge lamp installed. This highly-efficient short-arc source provides an exceptionally stable 6000K color temperature, a color rendering index greater than 90, and an TO P average life of 750 hours.
  • Page 9 “Time” on page 14. Al ig ni ng t he l amp 1 Switch on the MAC 2000 Wash and allow it to reset. Using either a controller or the control module, turn on the lamp and project an open white beam on a flat surface.

  • Page 10: Ac Power

    MAC 2000 Wash automatically adapts to the mains voltage and frequency. Fuses The MAC 2000 Wash uses two 20 A T (time delay) main fuses, which are located near the power switch. Power connection Important! Connect the MAC 2000 Wash directly to AC power. Do not connect it to a dimmer system;...

  • Page 11: Data

    Important! Never connect more than 1 data input and 1 data output. The MAC 2000 Wash has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

  • Page 12: Rigging

    IGGING The MAC 2000 Wash can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 8. Figure 8: Clamp bracket positions Warning! Always use 2 clamps to rig the fixture.

  • Page 13: Control Panel

    Navigation The DMX address and any messages (see page 36) are displayed when the MAC 2000 Wash is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].

  • Page 14: Readouts

    The firmware version is also displayed briefly at startup. D M X D MX L S T CO menu shows the DMX start code ( ) and DMX values received for each effect. MAC 2000 Wash...

  • Page 15: Service Messages

    U T I L / A d j ) provides manual control for making mechanical adjustments and is used by Martin service technicians. C A L I B R A T I O N ( U T I L / C A L...
  • Page 16 S O F T W A R E U P L O A D The software update mode is normally engaged automatically by the upload device. If this does not occur then see “Software installation” on page 24. MAC 2000 Wash...

  • Page 17: Effects

    FFECTS The MAC 2000 Wash is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit.16-bit mode requires two more DMX channels than 8-bit mode but provides more precise pan/tilt positioning. All other functions are identical. See “DMX protocol” on page 25.

  • Page 18: Motorized Barn-Doors

    We have done this to cover the possibility that you rig and begin programming your MAC 2000 Wash and add barn doors to it later. If the DMX channels were not already assigned, you would have to re-patch your console and therefore would lose any programming already completed.

  • Page 19: Optics

    PTICS This chapter describes the elements of the optical path and changes that can be made to them. It covers the color wheel and filters, front lenses, and aperture rings. Color wheels The following is a view of the color wheels as seen from the lamp. Fixture top Wheel 1 Wheel 2...
  • Page 20 C H A N G I N G C O L O R F I L T E R S Additional color filters can be ordered from Martin. To ensure the best performance, lenses must be fitted with the coated surface away from the lamp.

  • Page 21: Changing The Front Lens

    8 Replace the fixture cover and apply power. Changing the front lens The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC lens, and a super-wide-angle lens. Note that when using the Fresnel lens the 50 mm (2 in) aperture ring provides the highest light output. When the PC lens is fitted we recommend the use of the 45 mm (1.8 in) aperture ring (see “Changing the aperture ring”...

  • Page 22: Changing The Aperture Ring

    Changing the aperture ring The MAC 2000 Wash comes factory fitted with a 50 mm (2 in) aperture ring (identified by 5 small holes), and 3 optional rings: • 30 mm (1.2 in) - identified by 3 small holes • 40 mm (1.6 in) - identified by 4 small holes •...

  • Page 23: Routine Maintenance

    OUTINE MAINTENANCE The MAC 2000 Wash requires routine cleaning. The schedule depends heavily on the operating environment; please consult a Martin service technician for recommendations. Refer all service not described here to a qualified Martin technician. Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes overheating and damage to the fixture that is not covered by the warranty.

  • Page 24: Software Installation

    R E Q U I R E M E N T S The following are required in order to install software. • The MAC 2000 Wash update file, available for download from the User Support Area of the Martin web site (http://www.martin.dk).

  • Page 25: Dmx Protocol

    PROTOCOL This section contains two DMX protocols (both from protocol version 1.0A): • “16-bit protocol” on page 26 • “8-bit protocol” on page 29 The 16-bit is the default protocol that is used. To modify this use the control menu. For more information see “Control menu”...

  • Page 26: 16-Bit Protocol

    Random color fast,set min./ max. CMY limits on channels 2-4 248 - 251 97 - 98 Random color medium,set min./ max. CMY limits on channels 2-4 252 - 255 99 - 100 Random color slow,set min./ max. CMY limits on channels 2-4 MAC 2000 Wash...
  • Page 27 DMX channel Value Percent Function Start code = 0 Color Wheel 2 (Multi Color, MCW) White White → Color 2, 1 1 - 31 1 - 12 Color 2, 1 Color 2, 1 → Color 2, 2 33 - 63 14 - 24 Color 2, 2 Color 2, 2 →...
  • Page 28 Tracking (Studio mode enabled – Overriding the MOdE menu setting) 246 – 248 97 - 98 Tracking (Shortcuts disabled - Overriding the SCUT menu setting) Tracking (Shortcuts enabled - Overriding the SCUT menu setting) 249 – 251 Blackout while moving 252 – 255 MAC 2000 Wash...

  • Page 29: 8-Bit Protocol

    8-bit protocol DMX channel Value Percent Function Start code = 0 Shutter, Strobe, Reset, Lamp On/Off 0 - 19 0 - 7 Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.) 20 - 49 8 - 19 No function (Shutter Open) 50 - 72 20 - 28 Strobe on fast->slow...
  • Page 30 246 - 248 Fan speed (Regulation, min. noise level – Overriding the FAN menu setting 249 - 251 Fan speed (Full speed, max. cooling – Overriding the FAN menu setting Blackout while moving 252 - 255 99 - 100 MAC 2000 Wash...
  • Page 31 DMX channel Value Percent Function Start code = 0 Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Zoom 0 - 2 0 - 1 Tracking Speed Fast → Slow 3 - 239 2 - 93 240 - 242 93 - 94 Tracking (Studio mode disabled – Overriding the MOdE menu setting) Tracking (Studio mode enabled –...

  • Page 32: Control Menu

    Return all personality settings (not calibrations) to factory FA CT L OA D defaults. dF S E Load custom configuration. L OA d CU S1 , CU S2 , CU S3 Save current configuration. S AV E MAC 2000 Wash...
  • Page 33 VE R Decimal value of the DMX start code. The start code must be 0 S TC O for the MAC 2000 Wash to function properly. dM X L DMX value (from 0 - 255) received for each channel. d IM . .E FS P Reset fixture.
  • Page 34 Displayed when lamp hours exceed average life (750 hours). Re pl a ce l a mp SM S G ) Displayed if head temperature exceeds 120° C (248° F). Fi xt u re o v er h ea ti n g MAC 2000 Wash...

  • Page 35: Adjustment Submenu

    DJUSTMENT SUBMENU This functions are used by Martin service technicians to adjust the fixture. This menu is located under U TI L /A dj Menu Item Options Notes Reset fixture. RS T Strike lamp. L ON Douse lamp. Lo FF Open dimmer.

  • Page 36: Display Messages

    AC voltage. ME RR (Memory error) Contact Martin service personnel for ...the EEPROM memory cannot be read. assistance. Sh ER (Short error) ... the fixture detects the lamp is ON but no ‘Lamp ON’...

  • Page 37: Troubleshooting

    ROUBLESHOOTING Problem Probable cause(s) Remedy Check that power is switched on and cables are No power to fixture. plugged in. One or more of the fixtures is Primary fuse blown (located near mains inlet). Disconnect fixture and replace fuse. completely dead. Secondary fuse(s) blown (located on PCB Disconnect fixture.

  • Page 38: Circuit Board Connections

    Color Wheel #1 PL 3 PL 9 Barn Door #3 / #4 Barn Door #3 / #4 Color Wheel #2 Color Wheel #2 PL 4 PL 15 Barn Door Power Barn Door Power PL 12 P/N 33120039-B MAC 2000 Wash...

  • Page 39: Specifications

    PECIFICATIONS P H Y S I C A L Length: ............... . . 408 mm (16.0 in) Width: .
  • Page 40 MAC 2000 Wash E in single flight case........
  • Page 41 I N C L U D E D I T E M S 2 x Omega bracket, 1/4-turn PC lens User manual 30 mm (1.2 in), 40 mm (1.6 in), 45 mm (1.8 in) and 50 mm (2 in) aperture rings Super-wide-angle lens PC lens Fresnel lens...
