Martin MAC 2000 Profile User Manual page 17

The automatic pan/tilt position correction system may be temporarily turned off under
setting, however, is not saved and the system will be re-enabled the next time the fixture starts. If the system cannot
correct the pan/tilt position within 10 seconds, feedback is automatically disabled.
Adjustment
U TI L /A dj
The adjustment menu (
Calibration
The calibration menu ( U T I L / C A L
mechanical reset or home positions. This allows you to fine tune optical alignment and achieve uniform performance
between fixtures. Dimmer and zoom are calibrated to defined points. The other effects are calibrated relative to an
arbitrary reference fixture.
Default offset settings may be restored by selecting default offsets (
C
A L I B R A T I N G E F F E C T S
1 Apply power but do not strike the lamp until zoom has been calibrated.
2 To calibrate zoom, first remove the bottom head cover. Select
Adjust the offset until the face of the zoom lens plate is flush with the back edge of the focus plate (Figure
14). Press [Enter] to save the setting. Replace the bottom head cover.
3 Pan calibration is most useful when multiple fixtures are stacked vertically. To calibrate, set zoom, focus, iris,
and tilt position for easy one-over-the-other comparison and set each fixture to the same pan DMX value.
Select one fixture to be the reference fixture. On the other fixtures, select
[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the
setting.
4 Tilt calibration is most useful when multiple fixtures are arranged horizontally. To calibrate, set zoom, focus,
iris, and pan position for easy side-by-side comparison and set each fixture to the same tilt DMX value.
Select one fixture to be the reference fixture. On the other fixtures, select
[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the
setting.
5 To calibrate the dimmer, select
lens. Set the offset to 0 and then increase it until light is clearly projected onto the paper. Press [Enter] to
save the setting. Remove the paper.
6 To calibrate color mixing flags (cyan, magenta, yellow, and color temperature correction), project white
beams with no dimming and position them for easy comparison. On each fixture, including the reference,
select U TI L /C A L/ C O F
be the reference. Adjust the offsets on the other fixtures to match the reference color. Press [Enter] to save
the setting. Repeat for
) provides manual control for making mechanical adjustments. See page 35.
) provides utilities to define offsets in software that are relative to the

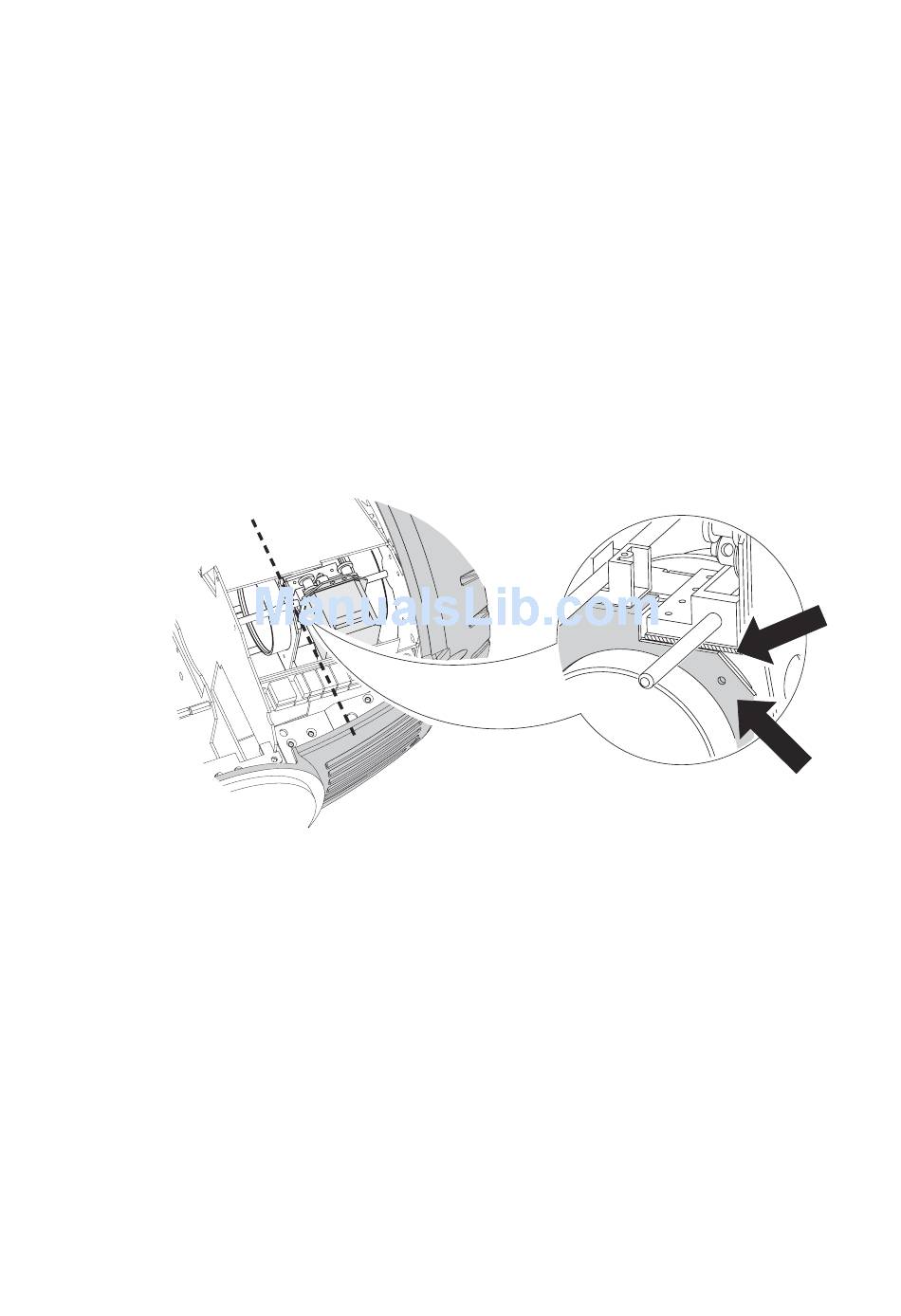

Figure 14: Zoom calibration point
U TI L /C AL / D O F
and press [Enter]. (This adds a defined amount of cyan.) Select one fixture to
M OF (magenta), Y OF
Control panel
UT I L/ d FO F
UT I L/ C AL /Z O OF
U TI L /C A L/ P OF
U TI L /C A L/ T OF
and press [Enter]. Hold a piece of paper over the
(yellow), and C TO F (CTC).
U T I L / F E b A . The off
).
and press [Enter].
and press
and press
17
