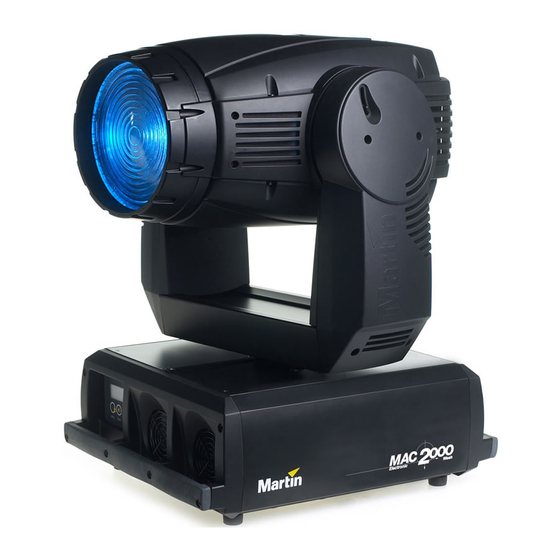

MAC 2000 Wash
TM
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAC 2000 Wash and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin MAC 2000 Wash

Summary of Contents for Martin MAC 2000 Wash

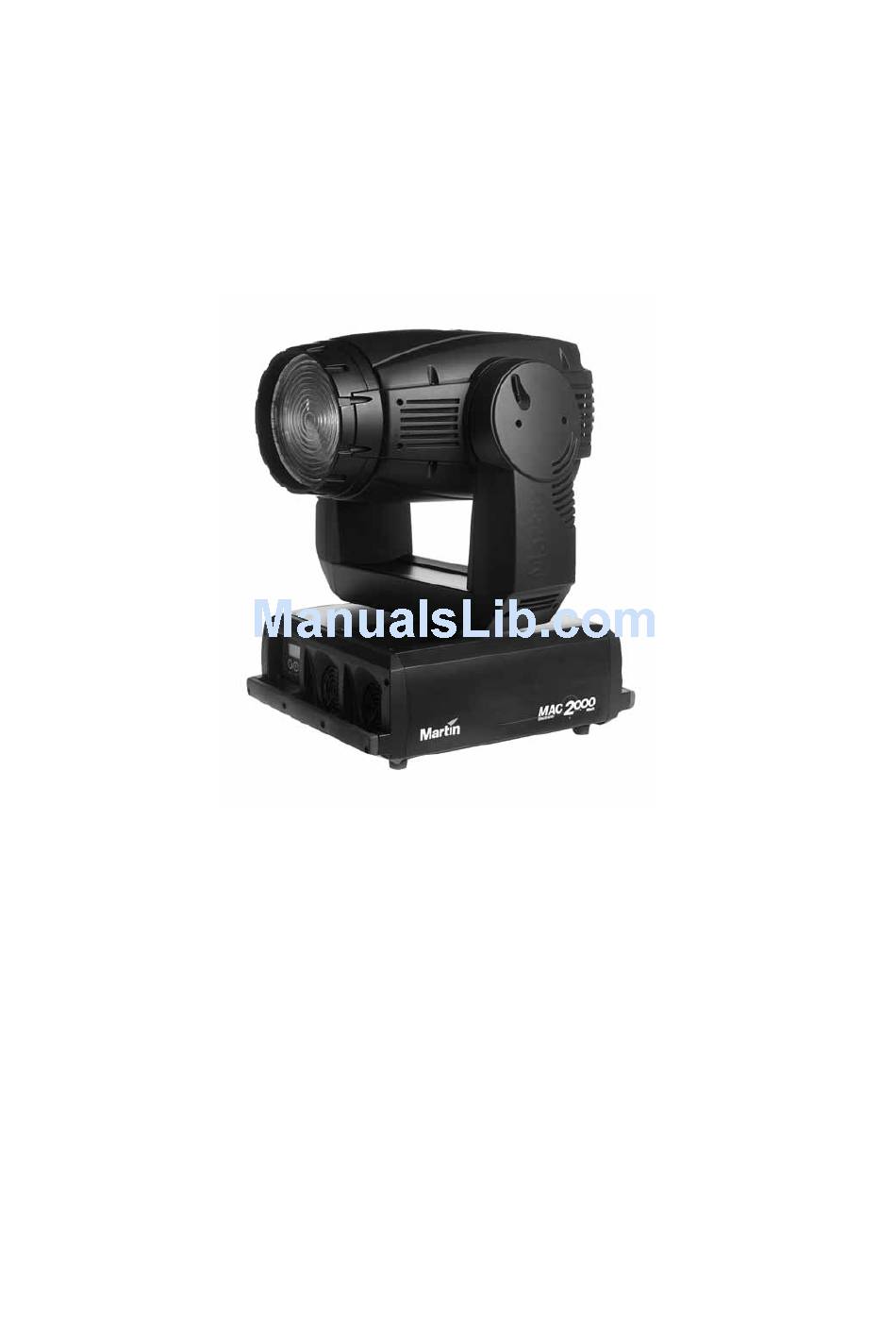

  • Page 1 MAC 2000 Wash user manual...

  • Page 2: D Imensions

    The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trade- marks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

  • Page 3: Table Of Contents

    ONTENTS IMENSIONS ................. . . 2 AFETY NFORMATION .
  • Page 4 Notes...

  • Page 5: Safety Information

    If you have questions about how to operate the fixture safely, please contact your Martin supplier or call the Martin 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180.
  • Page 6 • Never stick filters, masks or other materials onto any lens or other optical component. • Do not modify the fixture or install other than genuine Martin parts. • Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

  • Page 7: Introduction

    The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC lens and a super wide-angle lens. A motorized zoom provides beam angle ranges of 11° through to 40° (in the standard Fresnel configuration), 12°...

  • Page 8: Single Flight Case

    2 Pull the test arms out. Tilt the fixture up and over the test arms so that the handle cross-braces that are second from the back rest on the arms. The fixture should rest at an angle. 3 Push the transport drawer into the flight case. MAC 2000 Wash...

  • Page 9: Ac Power

    Power supply The MAC 2000 Wash can be operated on either 100 - 120 V or 208 - 240 V nominal AC power. It has a full auto-ranging power supply that adjusts automatically to match AC voltage within these ranges and to match 50 or 60 Hz power.

  • Page 10: Reduced Power Function

    Reduced power function The MAC 2000 Wash has an automatic power reduction function that reduces the consumption to 700 W if the shutter/dimmer is closed for more than 10 seconds. This not only increases lamp life but also further decreases the overall noise emission of the fixture.

  • Page 11: Data

    24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier gauge cable and/or an amplifier is recommended for longer runs. • Never use both outputs to split the link. To split the serial link into branches use a splitter such as the Martin 4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

  • Page 12: Rigging

    IGGING The MAC 2000 Wash can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 4. Figure 4: Clamp bracket positions Warning! Always use 2 clamps to rig the fixture.
  • Page 13 FRONT Figure 5: Rigging hardware installation Rigging...

  • Page 14: Control Panel

    Navigation The DMX address and any messages (see page 44) are displayed when the MAC 2000 Wash is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].

  • Page 15: Readouts

    If tracking mode movement is not satisfactory there are 2 parameters that can be adjusted. The first is → →                 selected under . The default, , is the best choice with controllers that ...

  • Page 16: Service Messages

    →        The adjustment menu ( ) provides manual control for making mechanical adjustments and is used by Martin service technicians. Calibration →        The calibration menu ( ) provides utilities to define offsets in software that are relative to the mechanical reset or home positions.
  • Page 17 → →            2 To calibrate the zoom, select and press [Enter]. The default value of 128 can be adjusted up or down to move the diffuser lens relatively forward or back. Make any necessary adjustments and press [Enter] to save the setting.

  • Page 18: Effects

    FFECTS The MAC 2000 Wash is compatible with USITT DMX-512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit. The 16-bit mode requires two more DMX channels than 8-bit mode but provides more precise pan/tilt positioning. All other functions are identical. See “DMX protocol” on page 31.

  • Page 19: Motorized Barndoors

    65 degree lens, or the super wide angle lens supplied with the MAC 2000 Wash. Five DMX channels are allocated for barndoor control irrespective of whether or not they are connected to the fixture.

  • Page 20: Pan And Tilt

    In vector mode, speed is set directly on a speed channel. The cross-fade time must be 0. Vector control provides a way to set speed on controllers that do not have programmable fade times and results in smooth movement regardless of the cross-fade time or the controller’s processing power. MAC 2000 Wash...

  • Page 21: Optics

    PTICS This chapter describes the elements of the optical path and changes that can be made to them. It covers the: • Color wheel and filters, below • Front lenses, on page 23 • Aperture rings, on page 24 • Optional dimmer wheel, on page 24 Color wheels The following is a view of the color wheels as seen from the lamp.
  • Page 22 Changing color filters Additional color filters can be ordered from Martin. To ensure the best performance, lenses must be fitted with the coated surface away from the lamp. To change a color filter: 1 Disconnect the fixture from power and allow it to cool.

  • Page 23: Changing The Front Lens

    Changing the front lens The MAC 2000 Wash XB has a Fresnel lens fitted as standard. A PC lens and a super wide-angle lens are also supplied with the fixture, and a micro-Fresnel lens is available as an accessory (P/N 91610092). Front lenses consist of a front module that attaches to the front of the head with quarter-turn fasteners.

  • Page 24: Changing The Aperture Ring

    Changing the aperture ring The MAC 2000 Wash comes factory-fitted with a 50 mm (2 in) aperture ring (identified by 5 small holes), and 3 optional rings: • 30 mm (1.2 in) - identified by 3 small holes • 40 mm (1.6 in) - identified by 4 small holes •...
  • Page 25 The dimmer wheel will be automatically detected when the MAC 2000 Wash is powered on and/or reset. When the dimmer wheel is installed, the DMX channel 2 (Intensity) must be maintained at 100%.

  • Page 26: Routine Maintenance

    Damage caused by inadequate cleaning or maintenance is not covered by the product warranty. As with electronic components in general, the MAC 2000 Wash’s PCBs are sensitive to ESD (electrostatic discharge). Take precautions to avoid ESD damage before opening the fixture.

  • Page 27: Replacing The Lamp

    The lamp can be replaced with either a: • Philips MSR 1200 SA/DE GOLD (Martin P/N 97010310), or • Osram HTI 1200 SharXS (Martin P/N 97010304). Both lamps are available from your Martin dealer.

  • Page 28: Replacing The Lamp Socket

    Replacing the lamp socket The lamp holder used in the MAC 2000 Wash eventually wears out due to the high voltages that pass through the contacts. Service life will vary, but as a rule you should plan to replace the holder every 4000 hours approximately.

  • Page 29: Software Installation

    Besides one of the hardware devices listed above, the Martin Software Uploader program, version 5.5 or later, is required. The Software Uploader program is supplied with the MUM and LightJockey programs, as well as with DABS1 hardware devices. It is also available for download from the Support area of the Martin website at http://www.martin.com.
  • Page 30 “NORM” position. Preventing software updates Software updates are enabled by default, but you can disable this by setting the Write jumper (see “Circuit board connections” on page 47) to the ‘disable’ setting. MAC 2000 Wash...

  • Page 31: Dmx Protocol

    “Control menu” on page 38. Ensure that you have the latest software installed. For the latest software updates, documentation, and other information about this and all Martin Professional products, please visit the Martin website at http://www.martin.com. DMX protocol...

  • Page 32: 16-Bit Protocol

    Random color (if selected on channel 7) Normal (full range) 1 – 127 1 – 49 Minimum yellow setting (127 = full yellow) 128 – 254 50 – 99 Maximum yellow setting (128 = no yellow) Normal (full range) MAC 2000 Wash...
  • Page 33 DMX channel Value Percent Function (Start code=0) White → CTC 0 – 255 0 – 100 Color wheel 1 (multi color) White White → color 1,1 1 – 31 1 – 12 Color 1,1 Color 1,1 → color 1,2 33 – 63 14 –...
  • Page 34     246 – 248 97 – 98 Tracking, shortcuts disabled (overrides the menu setting)     249 – 251 Tracking, shortcuts enabled (overrides the menu setting) 252 – 255 No function MAC 2000 Wash...

  • Page 35: 8-Bit Protocol

    8-bit protocol DMX channel Value Percent Function (Start code=0) Shutter, strobe, reset, lamp on/off 0 – 19 0 – 7 Shutter closed (lamp reduced to 700 W after 10 sec.) 20 – 49 8 – 19 No function (shutter open) NOTE! Strobe on, fast →...
  • Page 36 0 – 244 0 – 95 245 – 251 96 – 98 No changes 252 – 255 99 – 100 Open (hypermode / light buster mode) Barndoor 1 (Upper) Out → in 0 – 255 0 – 100 MAC 2000 Wash...
  • Page 37 DMX channel Value Percent Function (Start code=0) Barndoor 2 (Lower) Out → In 0 – 255 0 – 100 Barndoor 3 (Left) Out → In 0 – 255 0 – 100 Barndoor 4 (Right) Out → In 0 – 255 0 –...

  • Page 38: Control Menu

    ONTROL MENU This control menu applies to the software version installed in the MAC 2000 Wash as supplied. Software is occasionally updated with improvements and new features. For the latest software updates, please visit the Martin website at http://www.martin.com. Default values are in bold.
  • Page 39     Decimal value of the DMX start code. The start code must be 0 for the MAC 2000 Wash to function properly.         DMX value (from 0 - 255) received for each channel.
  • Page 40 Color wheel 1. Clockwise wheel rotation, slow.     Color wheel 1. Counter clockwise wheel rotation, slow.     Random CMY color, fast.     Random CMY color, medium.     Random CMY color, slow. MAC 2000 Wash...
  • Page 41 Menu Item Options Notes (Default settings in bold print)             Color wheel 2. Open position. (contd.) (available if color     Color wheel 2. Color position 1. wheel 2 is installed) ...
  • Page 42 Displayed when lamp hours exceed average life (750 hours). Replace lamp.                    Scrolls in the display if head temperature exceeds 120° C (248° F). MAC 2000 Wash...

  • Page 43: Adjustment Submenu

    DJUSTMENT SUBMENU These functions are used by Martin service technicians to adjust the fixture. This menu is located under →       Menu Item Options Notes     Reset fixture.    ...

  • Page 44: Display Messages

    ...there is a lamp temperature error. Set fan speed to using the     menu and restart the fixture. Contact Martin service personnel if problem persists. Contact Martin service personnel for     ...light sensor 1 is in error status.
  • Page 45 What to do     (Color wheel 1 sensor) ...an effect does not move away from the Contact Martin service personnel for index position under reset, a sensor or assistance.     (Color wheel 2 sensor) micro-switch circuit is short-circuited, or ...

  • Page 46: Troubleshooting

    Fixture is too hot. Allow fixture to cool. Disconnect fixture and clean fans, vents and air filters. Reduce ambient temperature.     If the service lamp is lit, check the menu using the control panel. MAC 2000 Wash...

  • Page 47: Circuit Board Connections

    IRCUIT BOARD CONNECTIONS TILT BROWN BLACK Door Switch Door Switch TILT Feedback ELEC. BALLAST ELEC. BALLAST PAN Feedback PAN Feedback E. Ballast Fan E. Ballast Fan Zoom Sensor Zoom Sensor PL 52 Head Left Fan Head Left Fan Color Wheel Sensor Color Wheel Sensor Head Right Fan Head Right Fan...

  • Page 48: Mac 2000 Wash Specifications

    Measurement source ..........Osram HMI 1200 W/S MAC 2000 Wash...

  • Page 49: Mac 2000 W Ash Specifications

    * Wattage, amperage and power factor figures are typical, not maximum. Allow for a deviation of +/- 10%. Figures apply to current product with passive power factor correction (PPFC). See previous revisions of user manual at http://www.martin.com for specifications of older models without PPFC. Thermal Cooling .
  • Page 50 Related Items Martin DABS1™ USB-XLR interface device and cables ......P/N 91611144 Martin Universal USB-DMX Interface Box™...
